Diagnostic Tests: Notes

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Perform all resistance and voltage tests with a Digital Volt-Ohmmeter (DVOM) with minimum 10-megohm impedance, unless stated otherwise in test procedures. Ensure ignition switch is in OFF position when performing resistance tests.

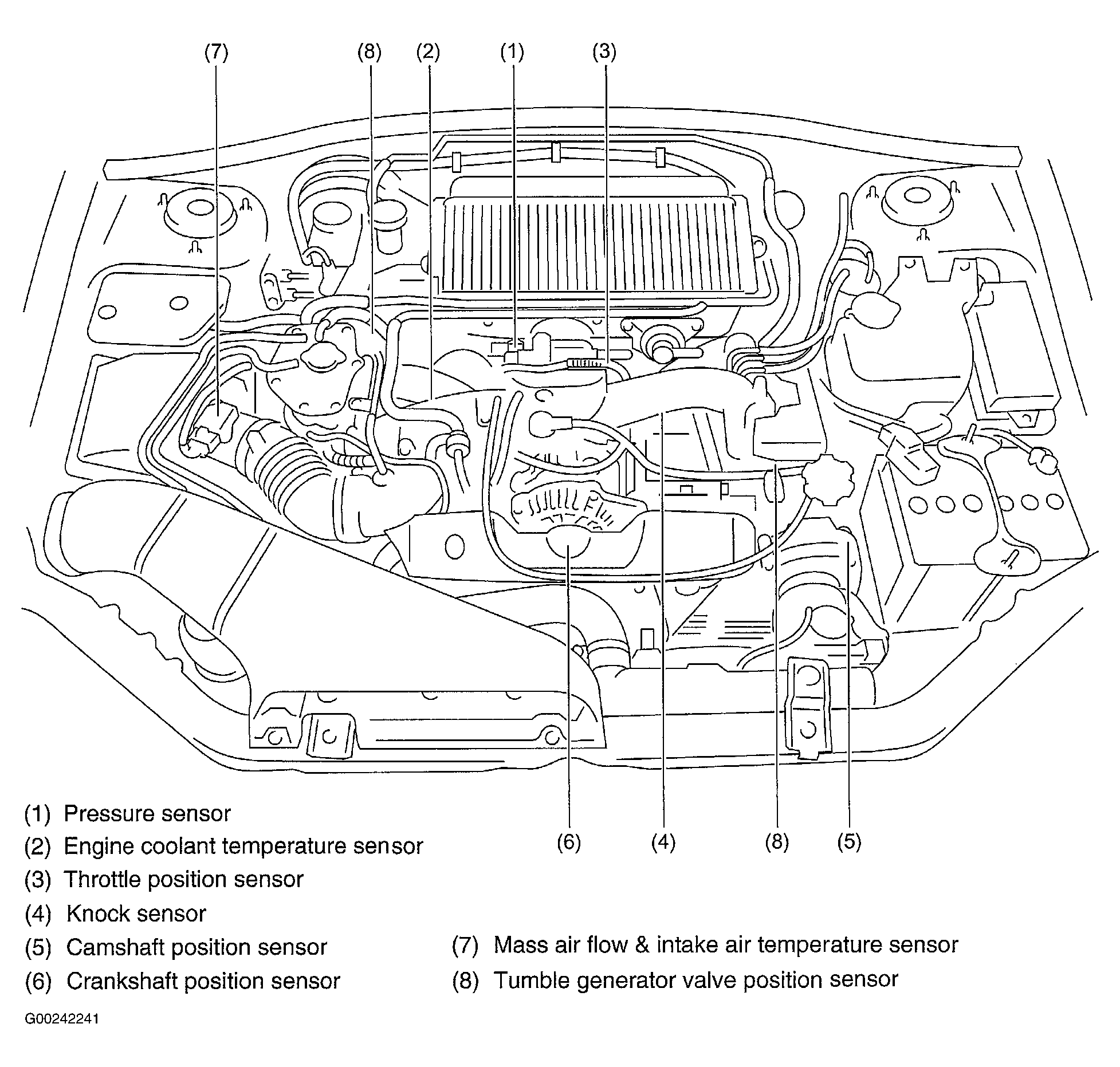

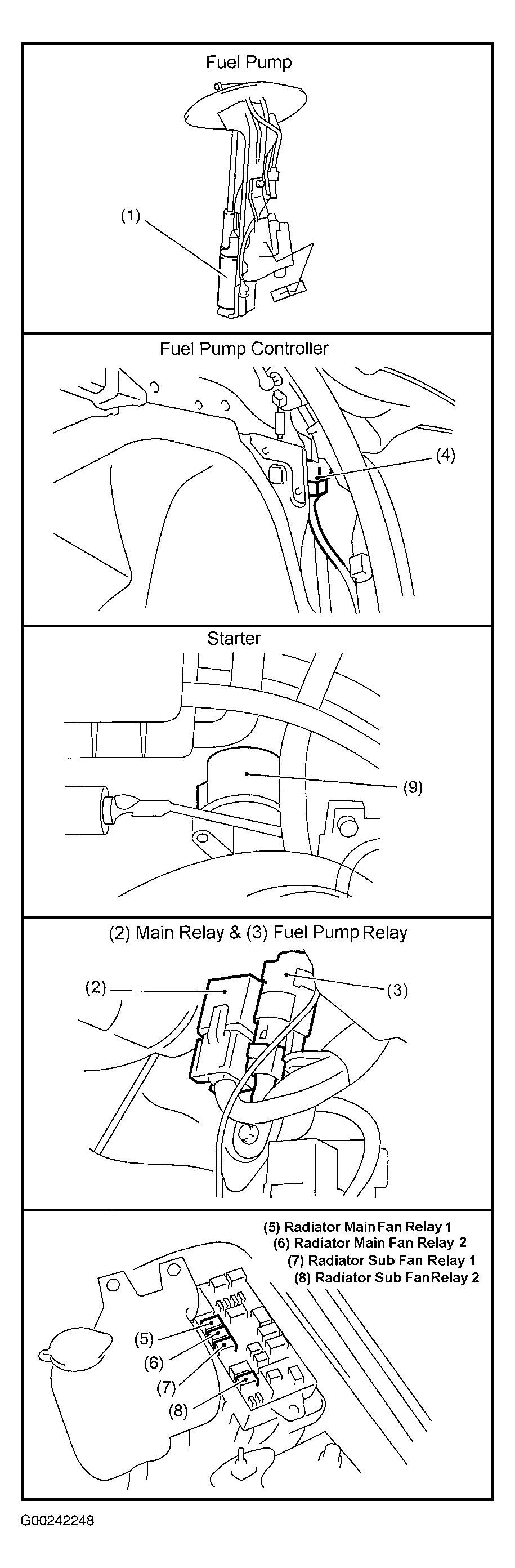

NOTE: Subaru Select Monitor (SSM) or OBD-II generic scan tool must be used to perform diagnostic tests. Values and procedures given in tests are based on the use of SSM scan tool. Follow scan tool manufacturer's instructions. After repair or replacement of faulty parts, clear memory and perform verification of repair. For ECM terminal identification, see PIN VOLTAGE CHARTS article. If backprobing ECM connector is required, use ECM terminal identification illustration or reverse image of Figure . For circuit identification and wire colors, see ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. For component locations, see Figure -Figure .
