Center Differential Carrier: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the center differential assembly with shims.
NOTE: Insert it fully into position until the bearing shoulder bottoms.

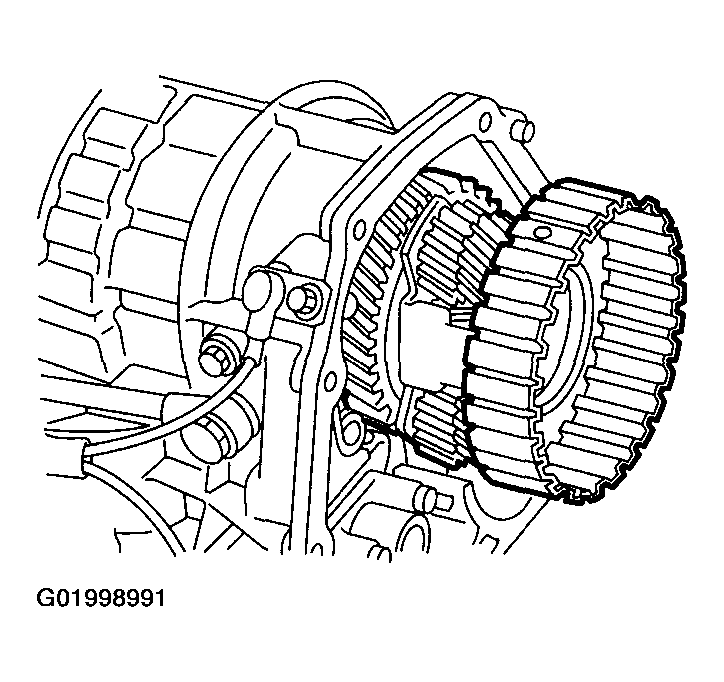

Fig 1: Installing Center Differential Assembly With Shims
Courtesy of SUBARU OF AMERICA, INC.
Insert the rear drive shaft. See INSTALLATION , Rear Drive Shaft.
Combine the transmission case with the extension case, and install rear wheel speed sensor. See INSTALLATION , Extension Case.
Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
