Reduction Drive Gear: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Take out the seal rings.

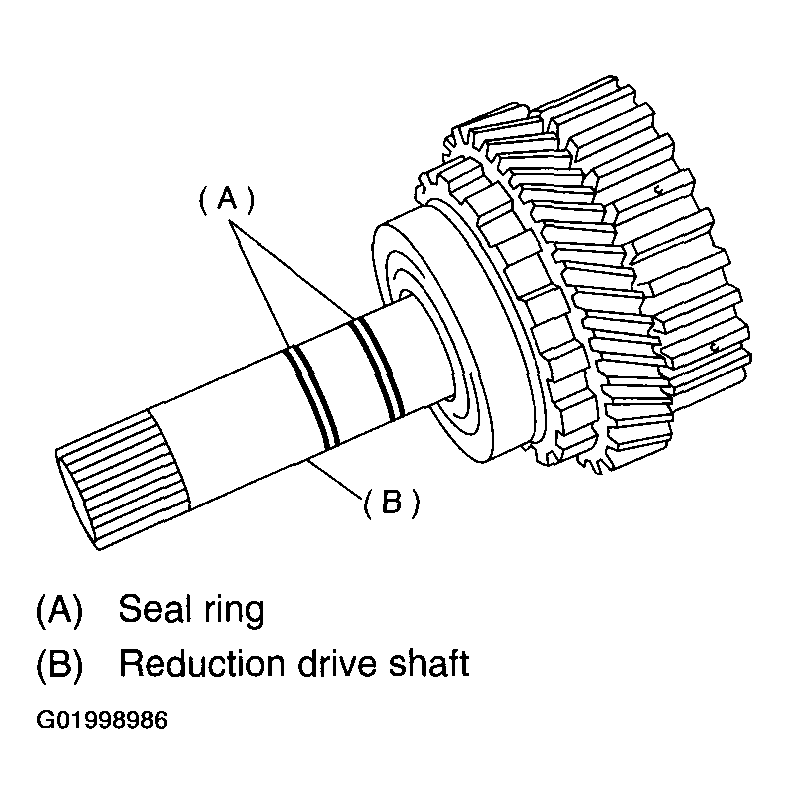

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Using ST, remove the ball bearing.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing Using ST
Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the reduction drive gear.

Fig 3: Removing Reduction Drive Gear Using Press
Courtesy of SUBARU OF AMERICA, INC.
