Basic Diagnostic Procedure: Procedure

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

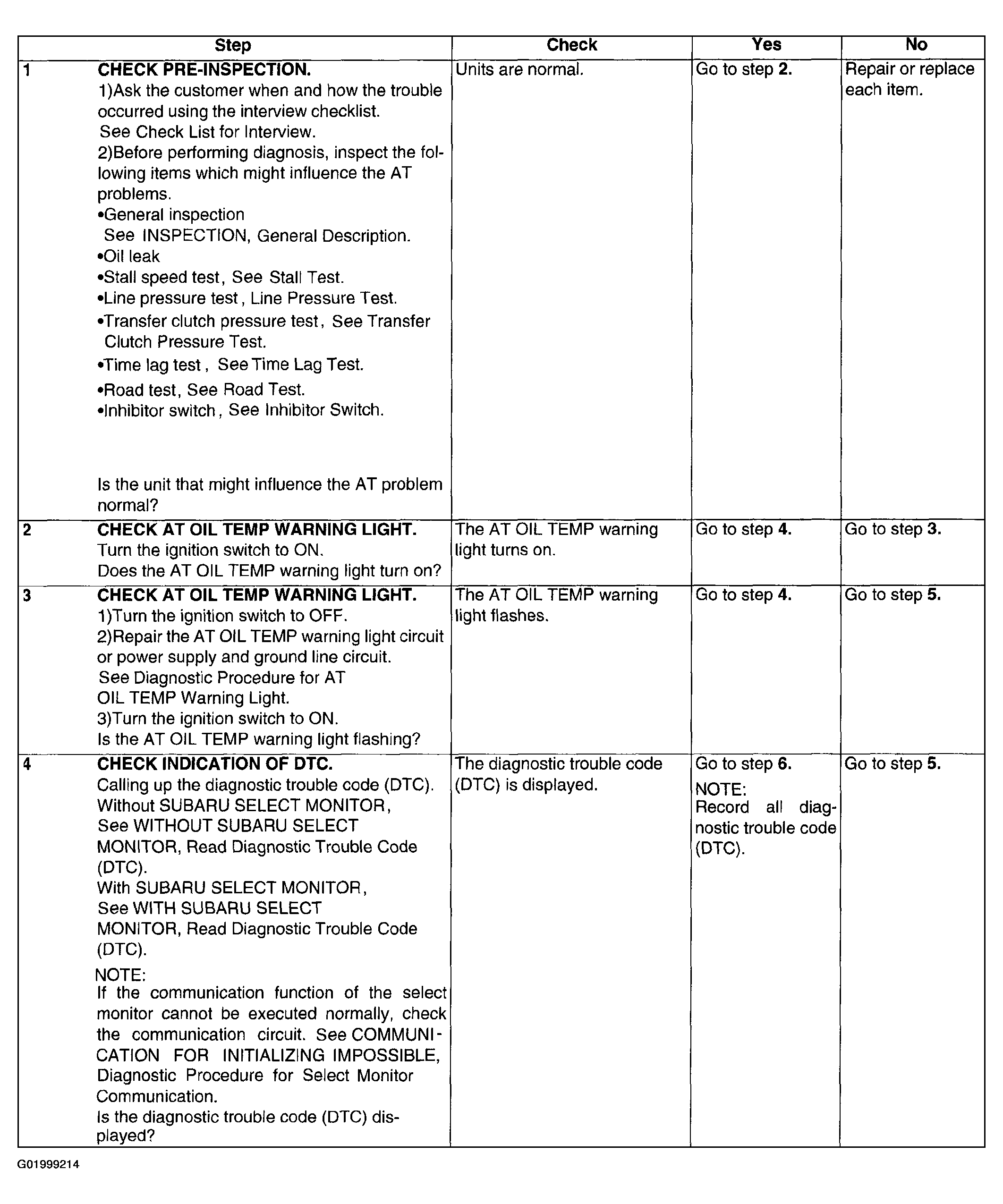

Fig 1: Basic Diagnostic Procedure Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

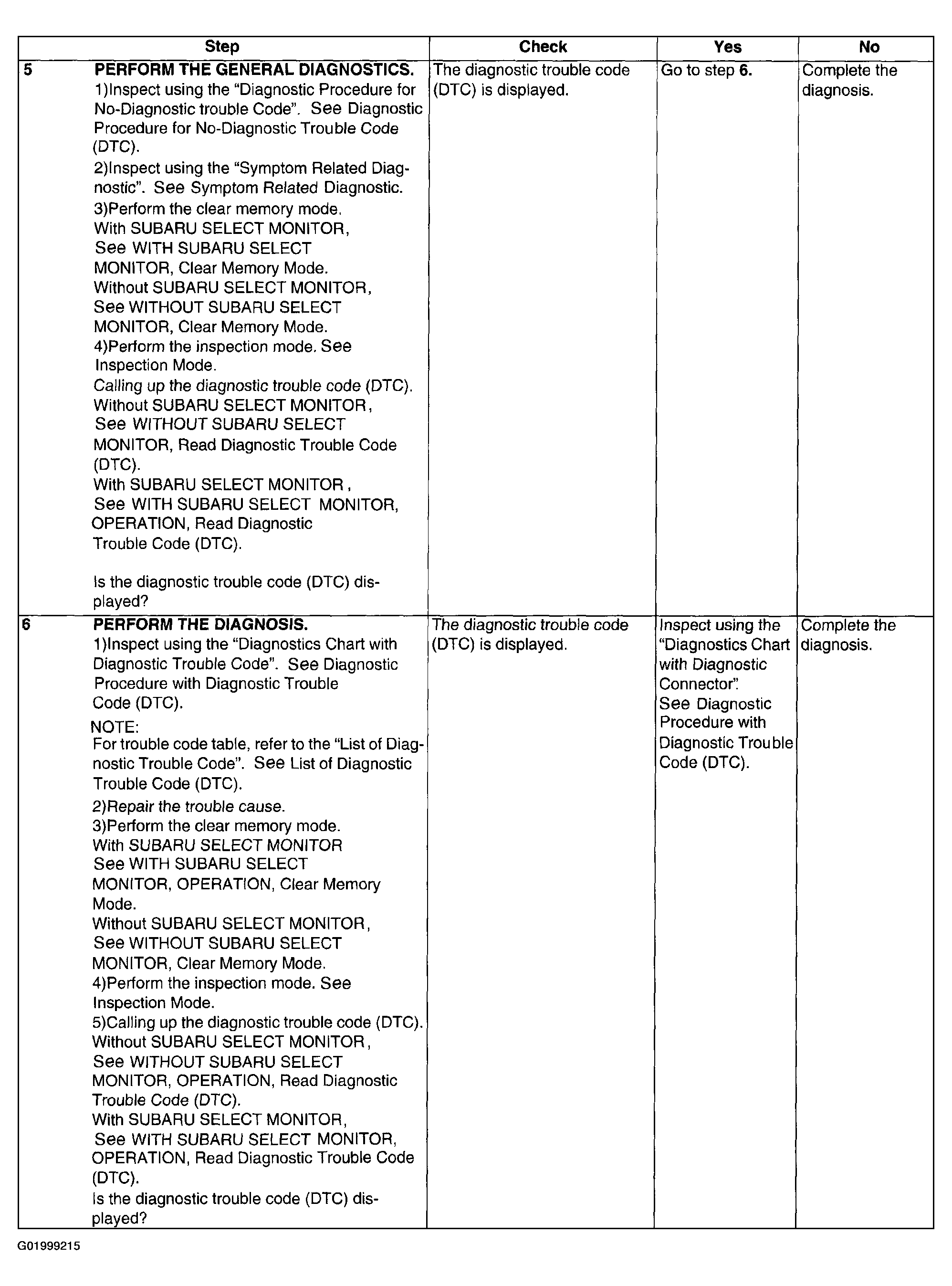

Fig 2: Basic Diagnostic Procedure Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
