Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply fluid packing to oil pressure switch threads.
    1. Fluid packing:  THREE BOND 1324 or equivalent
    Fig 1: Applying Fluid Packing To Oil Pressure Switch Threads
    G02113499
  2. Install oil pressure switch.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)
    Fig 2: Installing Oil Pressure Switch
    G02113500
  3. Connect terminal of oil pressure switch.

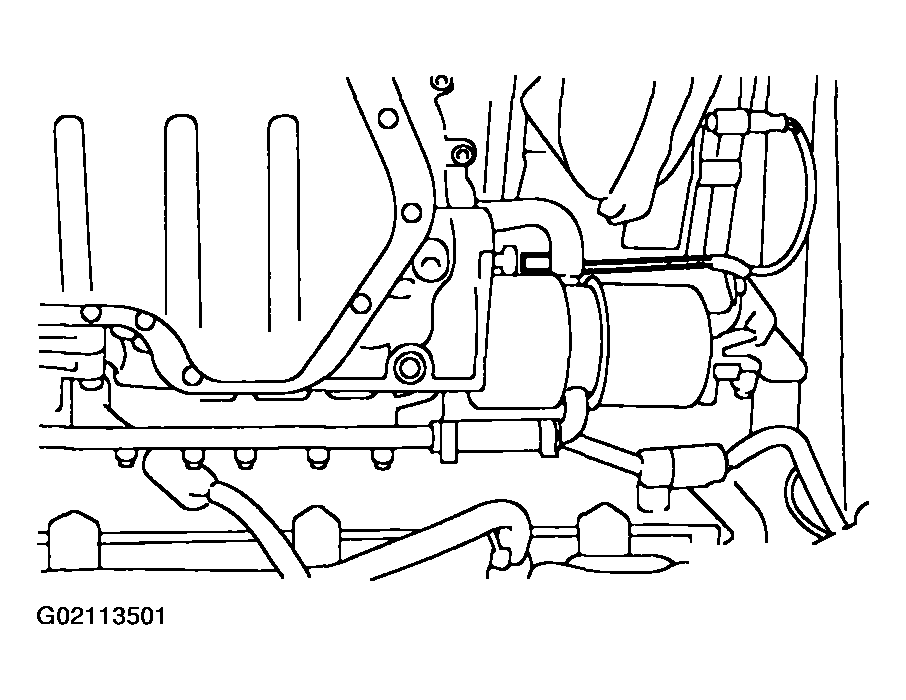

    Fig 3: Connecting Terminal Of Oil Pressure Switch
    G02113501
  4. Install under cover.
