Section 9 (Engine Cooling System (3.0L))
›
Radiator Main Fan System
›
Schematic
Radiator Main Fan System: Schematic
WARNING:
This page is about a different variant/trim than selected.

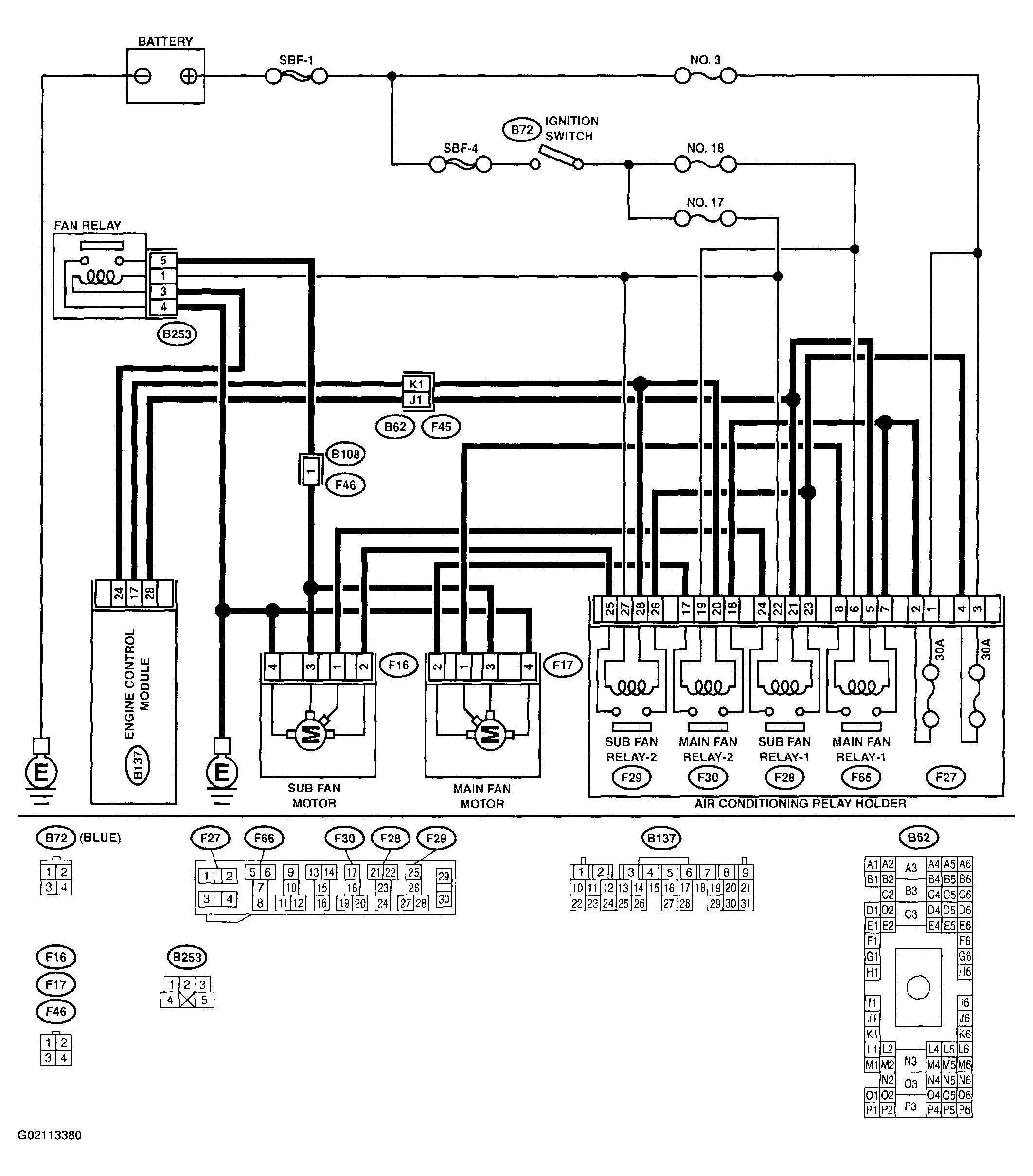

Fig 1: Radiator Main Fan Schematic Diagram
