Section 9 (Engine Cooling System (3.0L))
›
Radiator Sub Fan System
›
Schematic
Radiator Sub Fan System: Schematic
WARNING:
This page is about a different variant/trim than selected.

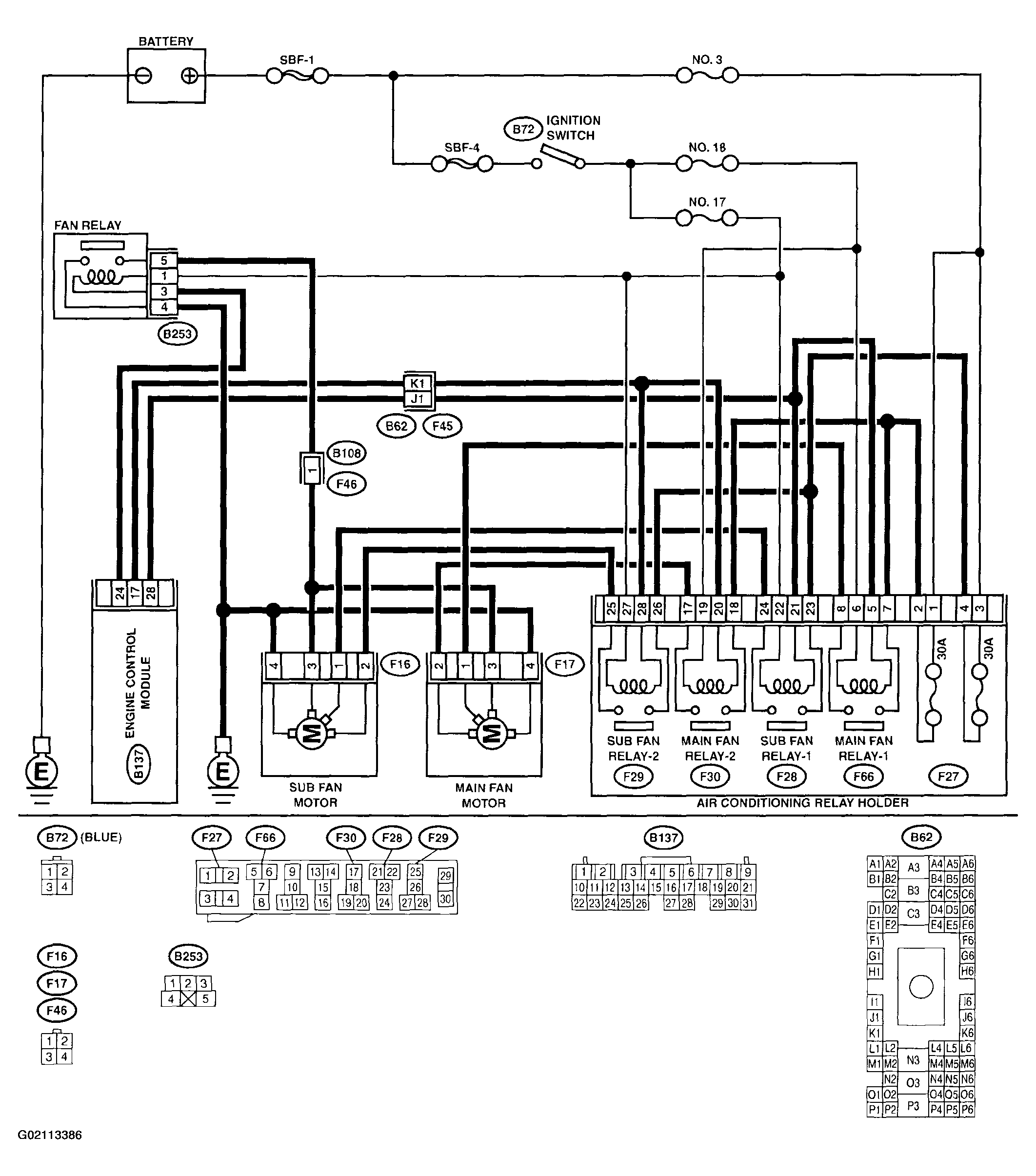

Fig 1: Radiator Sub Fan Schematic Diagram
