Water Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Install water pump onto rear chain cover.
1. Tightening torque: 6.4 Nm (0.65 kgf-m, 4.7 ft-lb)
CAUTION: Replace O-rings with a new one.

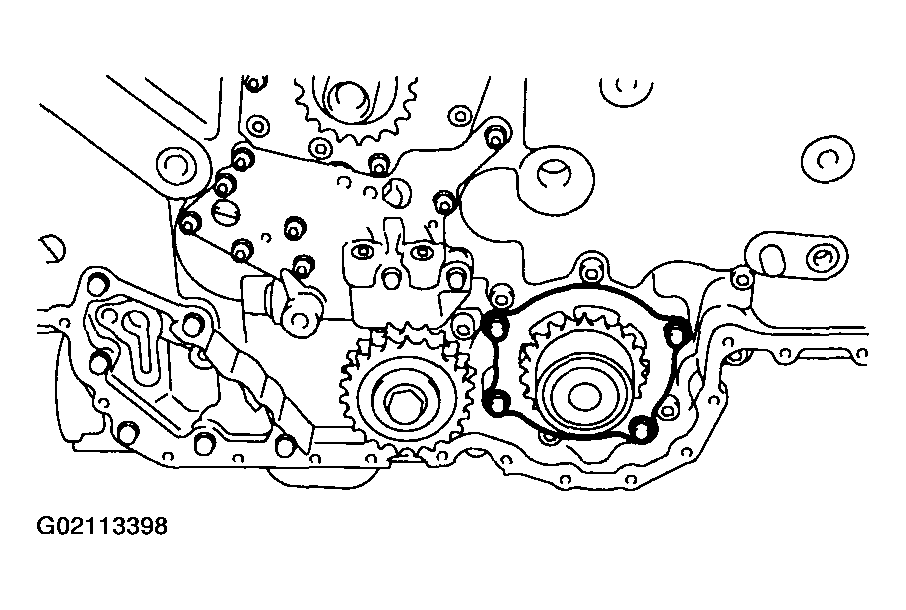

Fig 1: Installing Water Pump
Install timing chain assembly. See INSTALLATION , Timing Chain Assembly.
Install front chain cover. See INSTALLATION , Front Chain Cover.
Install V-belt. See INSTALLATION , V-belt.
Install radiator. See INSTALLATION , Radiator.
Fill coolant. See FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
