Input Shaft Play

In radial direction:

Service limit

0.18 mm (0.0071 in) or less

On condition

P: 98 N (10 kg, 22 lb)

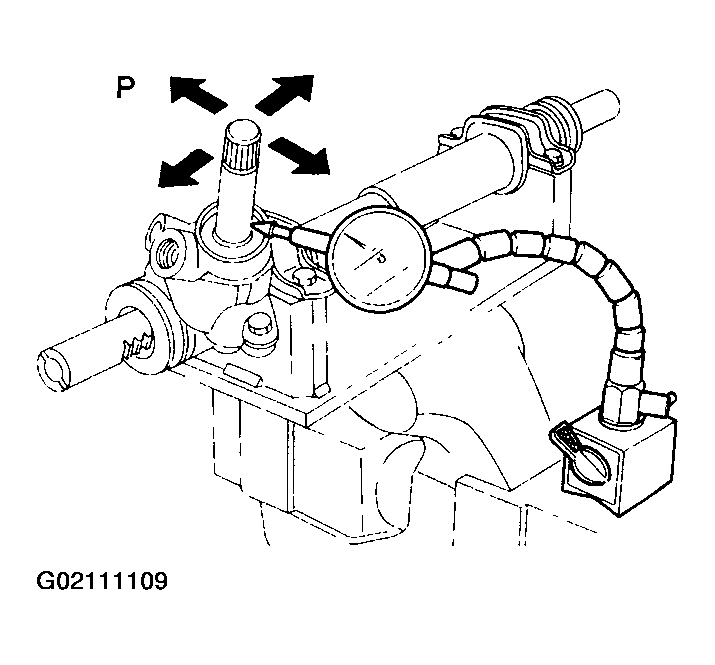

Fig 1: Checking Input Shaft Play (Radial Direction)

G02111109

In axial direction:

Service limit

0.5 mm (0.020 in) or less

On condition

P: 20 -49 N (2 - 5 kg, 4- 11 lb)

Fig 2: Checking Input Shaft Play (Axial Direction)

G02111110
