Clutch Disc and Cover: Removal

Remove transmission assembly from vehicle body. See MANUAL TRANSMISSION ASSEMBLY .
Install ST on flywheel.
ST 498497100 CRANKSHAFT STOPPER

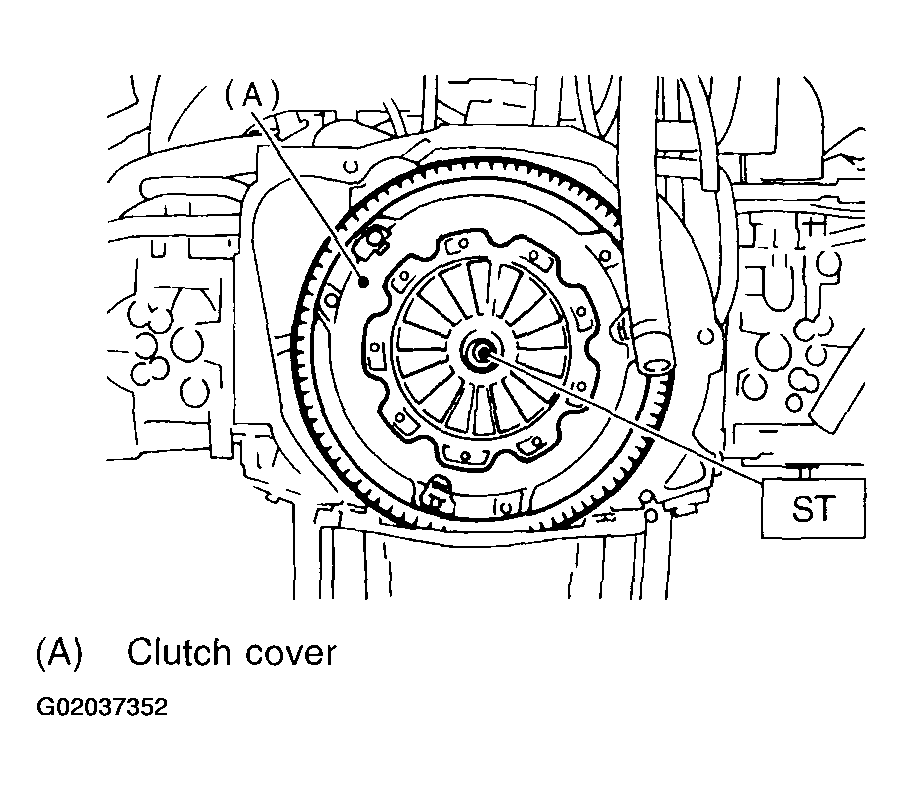

Fig 1: Installing ST On Flywheel
Remove clutch cover and clutch disc.
CAUTION:
- Take care not to allow oil on the clutch disc facing.
- Do not disassemble either clutch cover or clutch disc.
