Clutch Pedal: Removal

  1. Remove steering column. See TILT STEERING COLUMN .
  2. Disconnect connectors from stop light and clutch switches.
  3. Remove snap pins which secure lever to push rod and operating rod.
  4. Remove clevis pins which secure lever to push rod and operating rod.

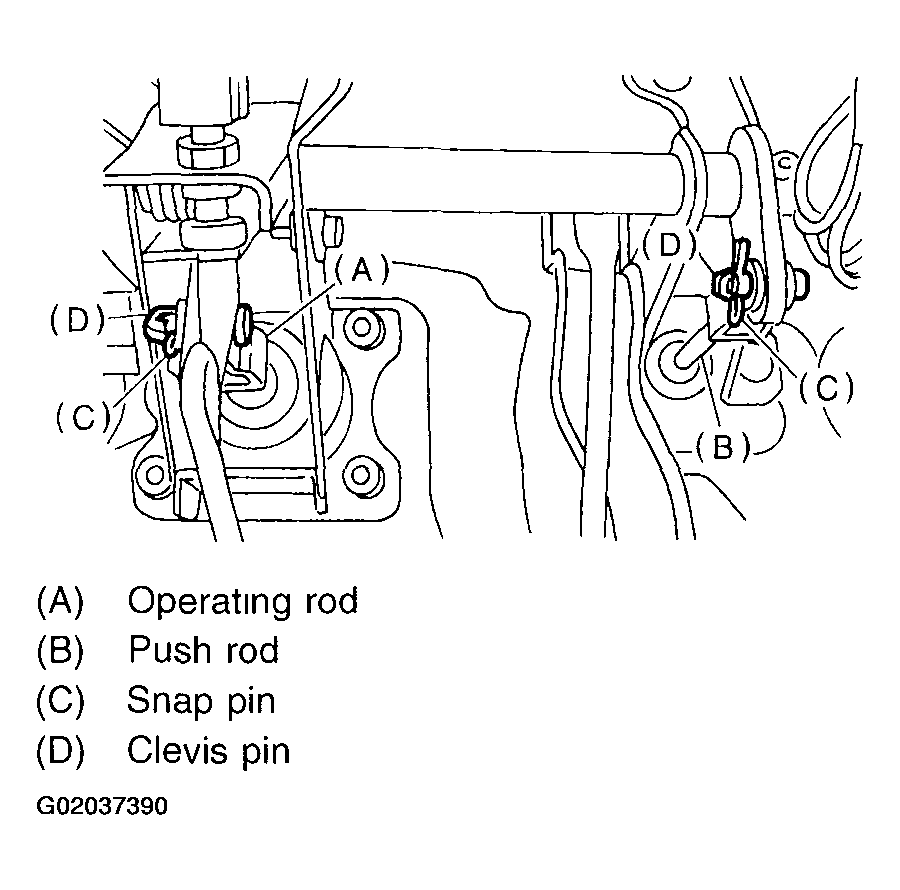

    Fig 1: Removing Clutch Pedal Linking Fasteners
    G02037390
  5. Remove nut which secures clutch master cylinder.

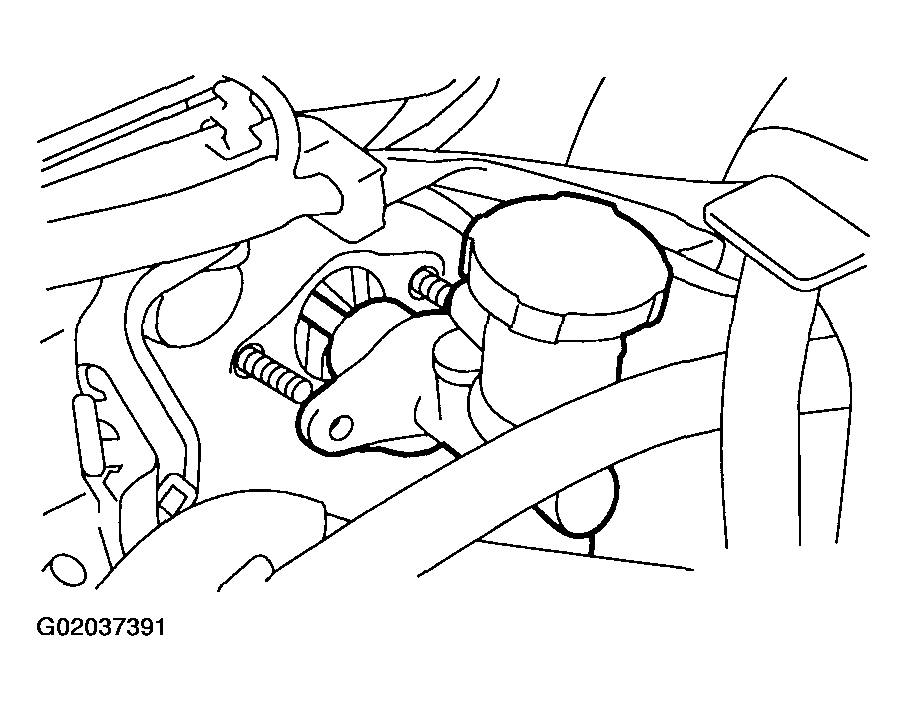

    Fig 2: Removing Clutch Master Cylinder Nut
    G02037391
  6. Remove bolts and nuts which secure brake and clutch pedals, and remove pedal assembly.
