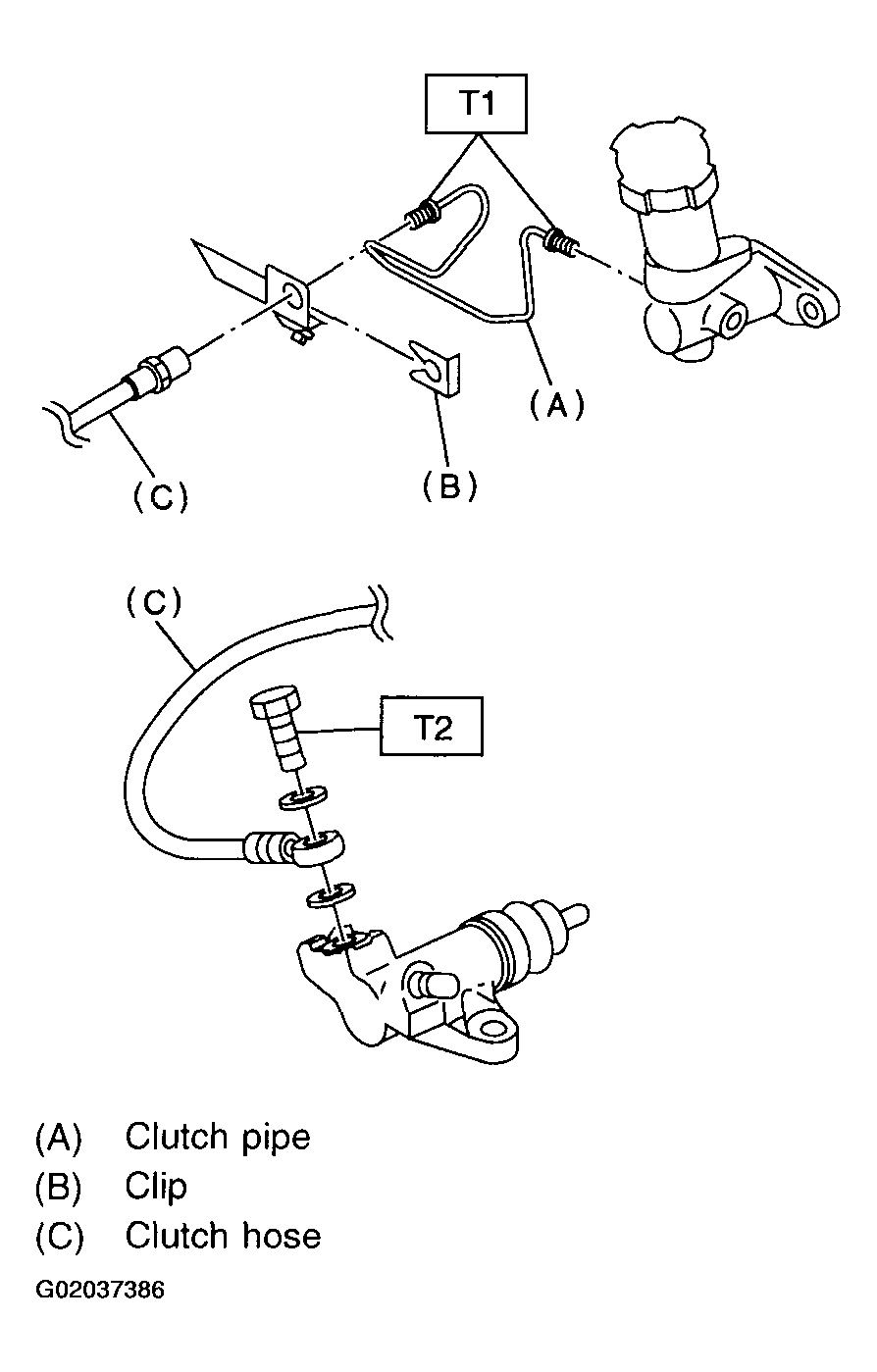

Clutch Pipe and Hose: Installation
Install in the reverse order of removal.
NOTE:
Bleed clutch fluid. See Clutch Fluid Air Bleeding
.
Tightening torque:
- T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
- T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
