General Diagnostic Table: Inspection: Clutch

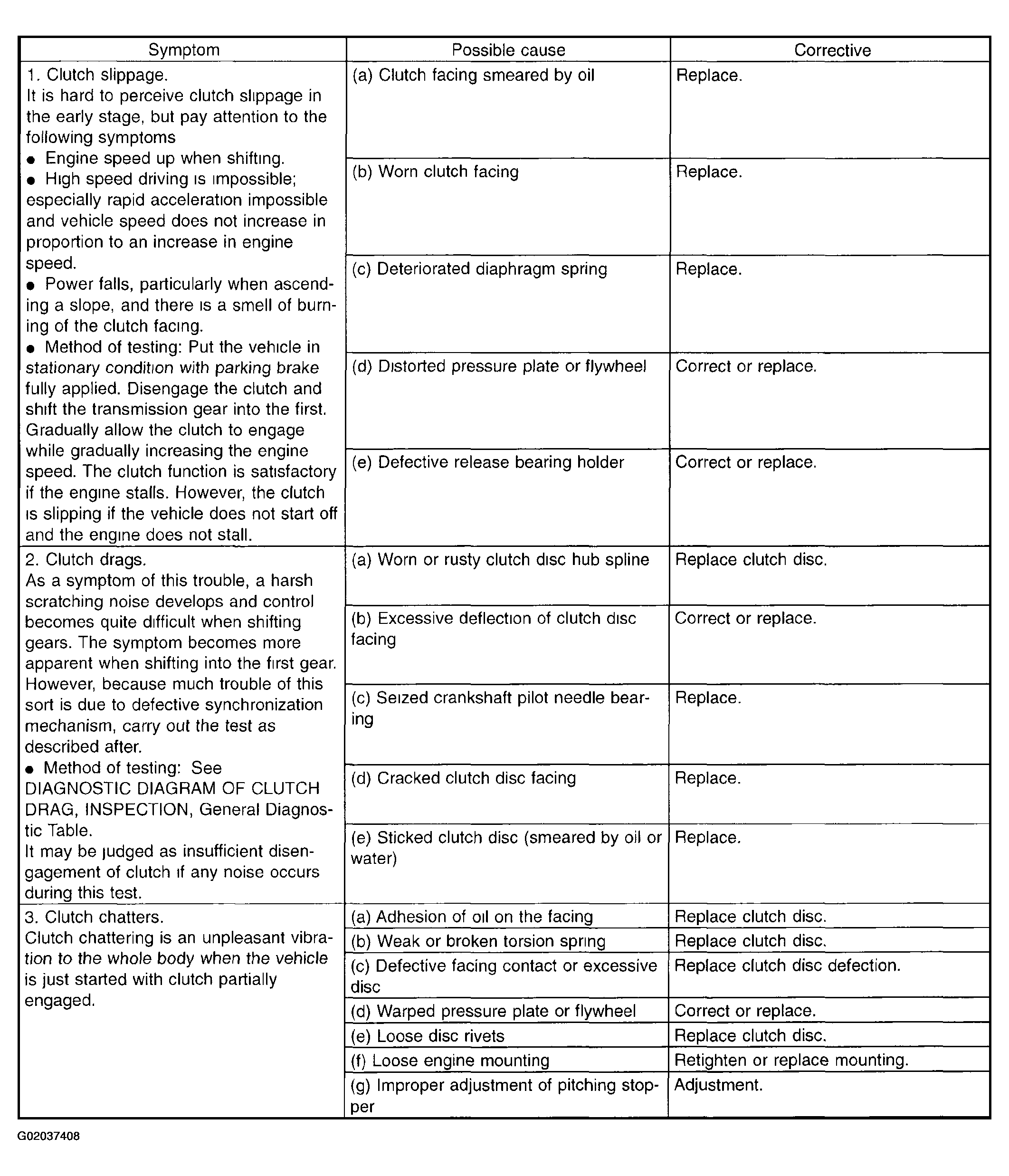

Fig 1: General Diagnostic Chart

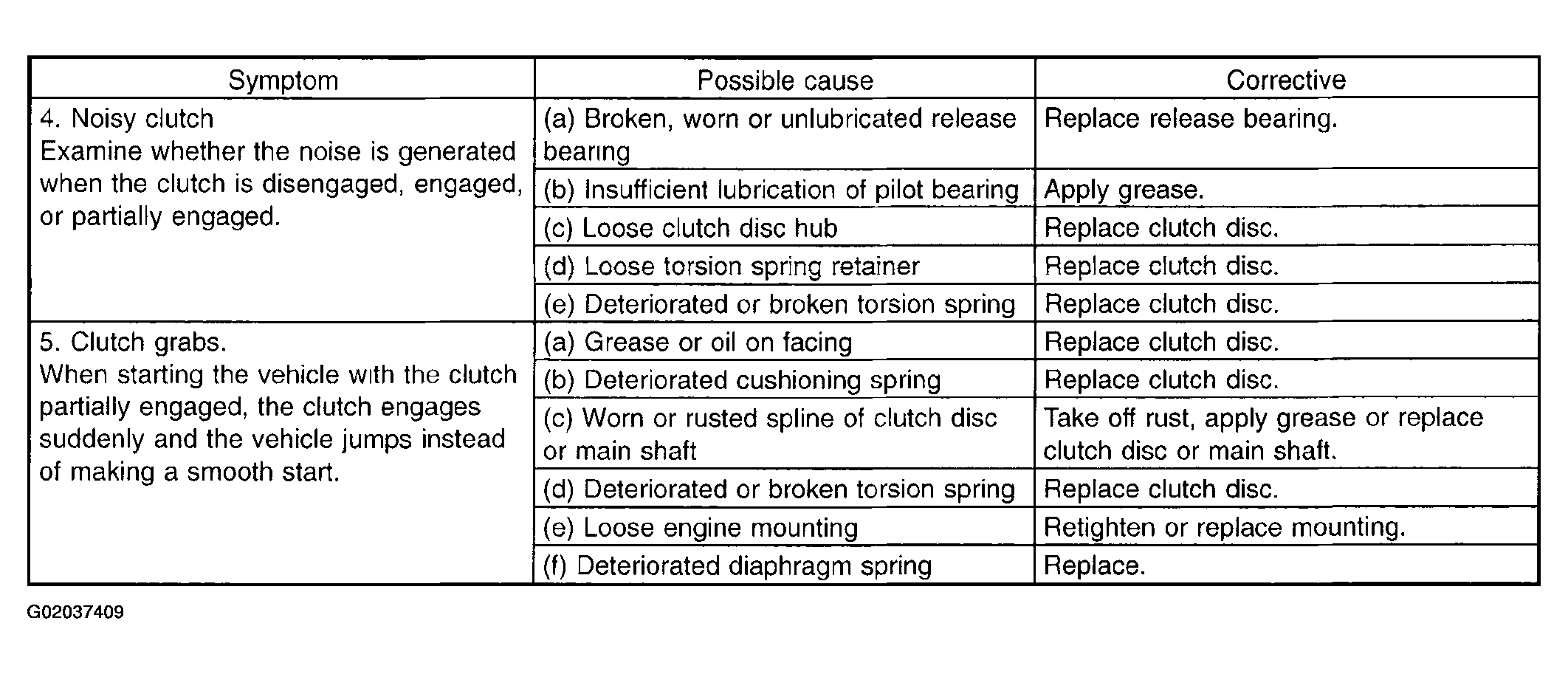

Fig 2: General Diagnostic Chart
