Release Bearing and Lever: Removal

  1. Remove transmission assembly from vehicle body. See MANUAL TRANSMISSION ASSEMBLY .
  2. Remove the two clips from clutch release lever and remove release bearing.
    CAUTION: Be careful not to deform clips.
  3. Remove release lever seal.

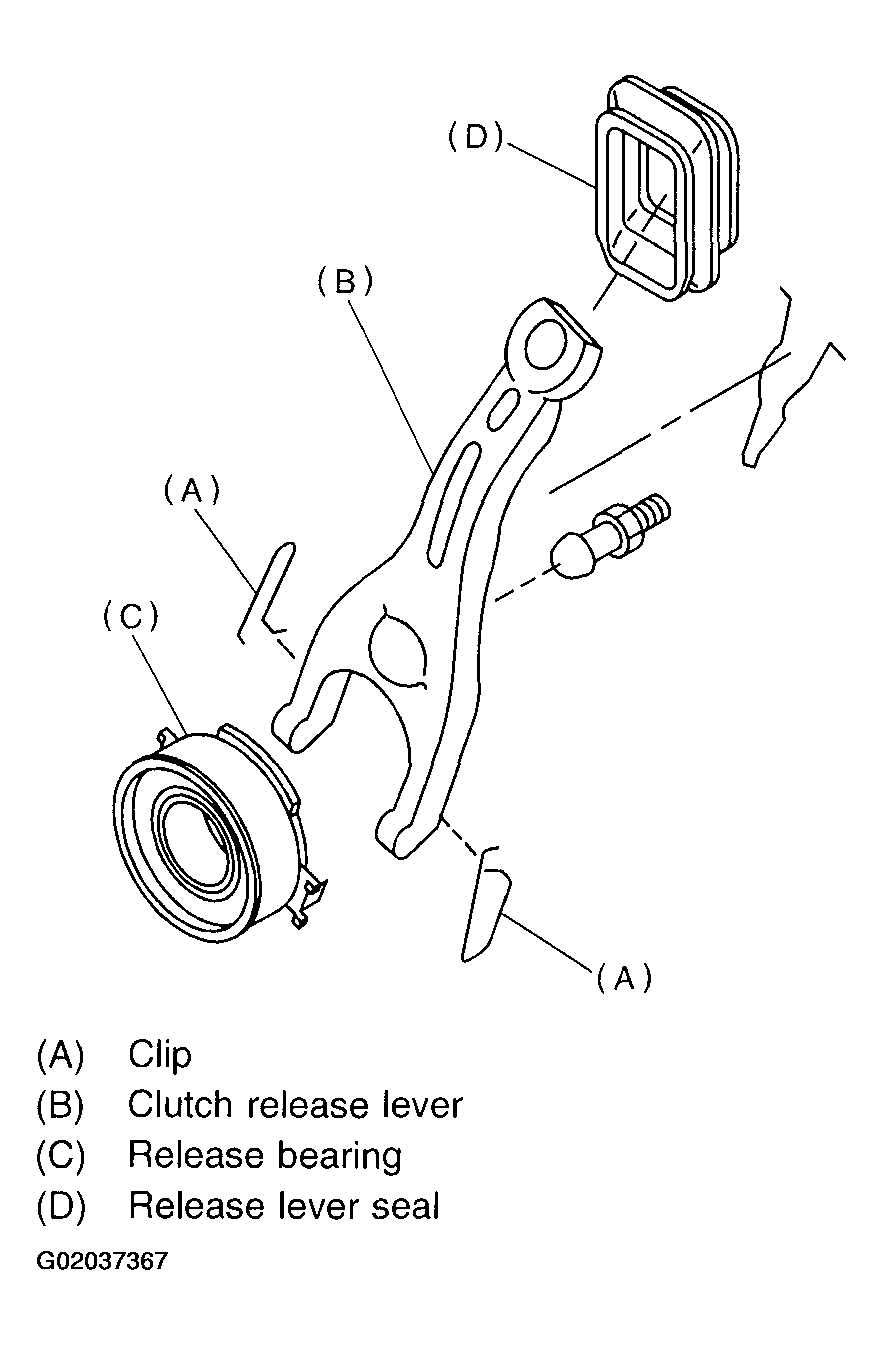

    Fig 1: Identifying Release Lever Components
    G02037367
  4. Remove release lever retainer spring from release lever pivot with a screwdriver by accessing it through clutch housing release lever hole. Then remove release lever.

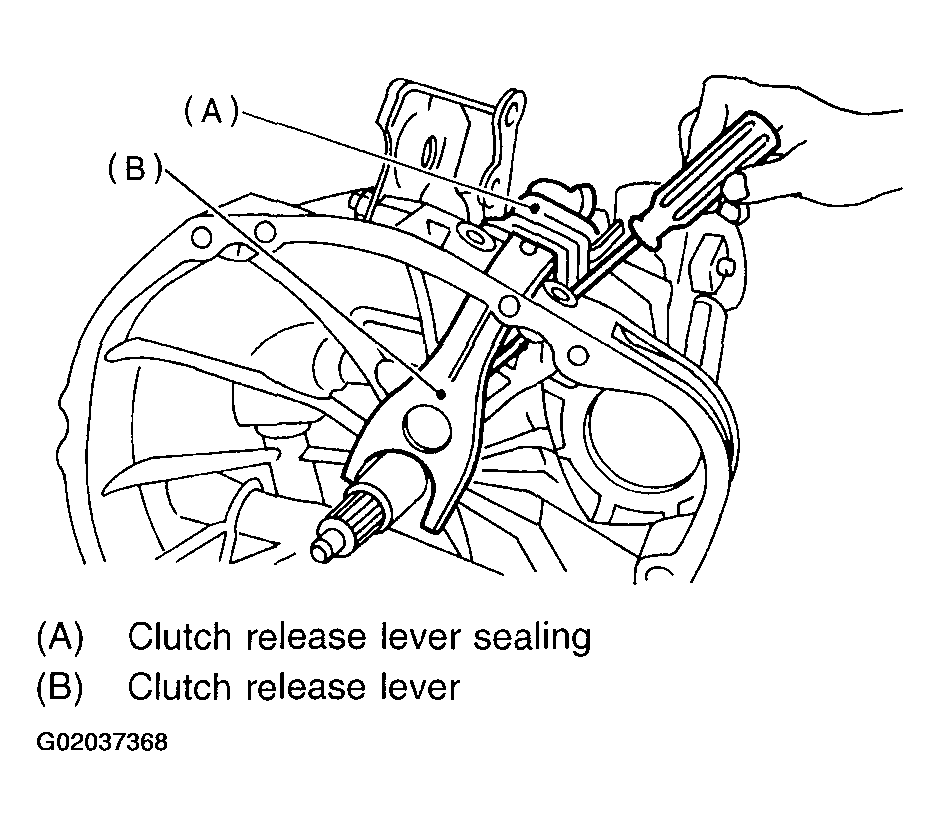

    Fig 2: Removing Release Lever
    G02037368
