HYPOID Gear Backlash

Adjust backlash by turning holder in right side case.

ST 499787000 WRENCH ASSY

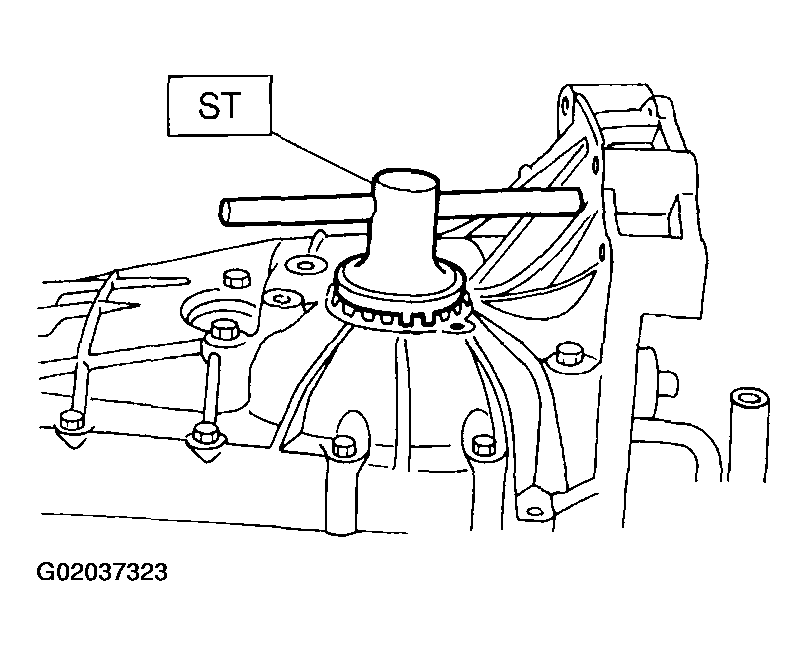

Fig 1: Adjusting Hypoid Gear Backlash

NOTE: Each time holder rotates one tooth, backlash changes by 0.05 mm (0.002 in).

Fig 2: Illustrating Hypoid Gear Backlash Adjustment Increments
