Switches and Harness: Removal

  1. Disconnect connector battery ground terminal.
  2. Disconnect connector back-up light switch and neutral position switch.

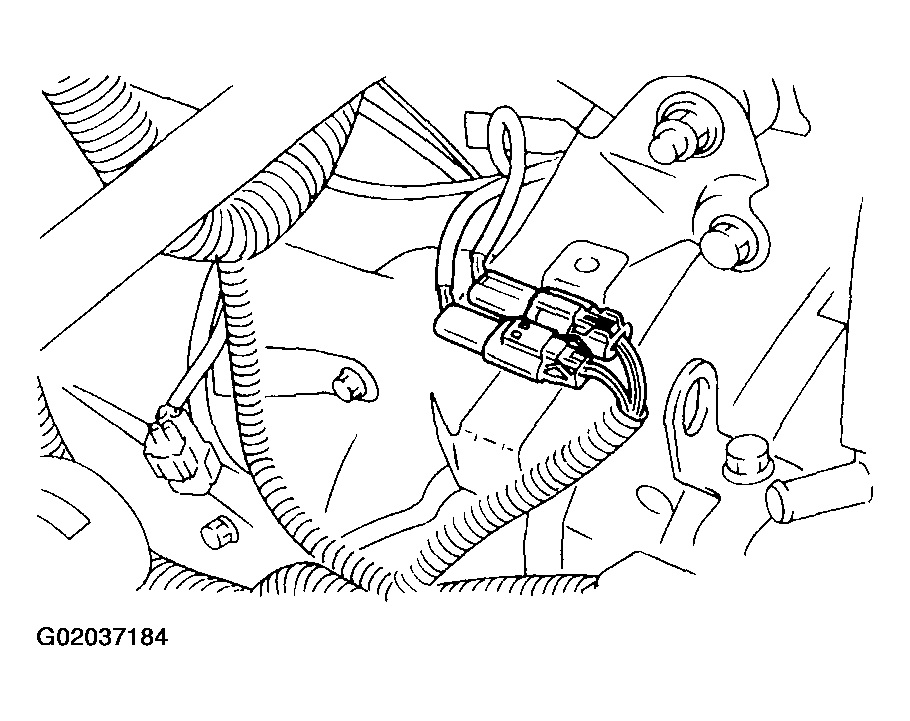

    Fig 1: Disconnecting Back-Up Light Switch And Neutral Position Switch Connectors
    G02037184
  3. Lift-up the vehicle.
  4. Remove back-up light switch and neutral position switch with harness.

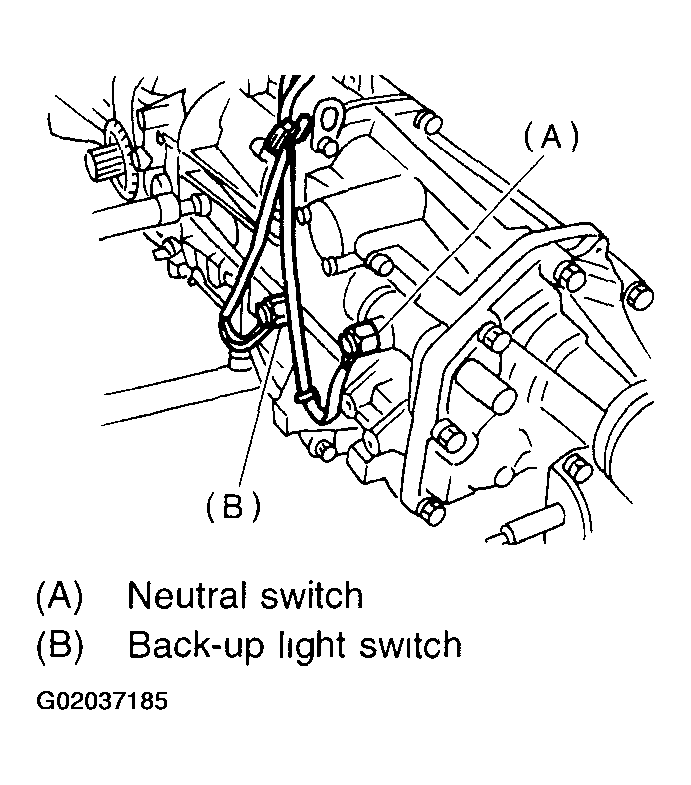

    Fig 2: Removing Back-Up Light Switch And Neutral Position Switch With Harness
    G02037185
