Extension Case

Using ST, install oil seal to extension case. See Oil Seal .
CAUTION: Use new oil seal.
Install shift bracket to extension case.
Tightening torque:
1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

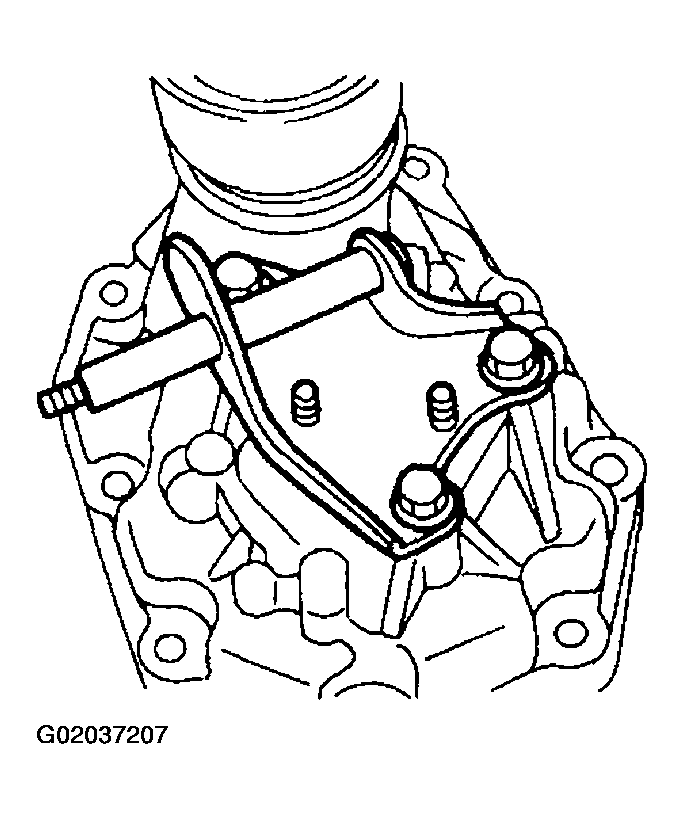

  Fig 1: Installing Shift Bracket
Install transfer drive gear to extension case. See INSTALLATION .
