Transfer Drive Gear: Removal

  1. Remove the manual transmission assembly from vehicle. See Manual Transmission Assembly  .
  2. Remove back-up light switch and neutral position switch. See Switches and Harness  .
  3. Remove transfer case with extension case assembly. See Transfer Case and Extension Case Assembly  .
  4. Remove extension case assembly.
  5. Remove transfer driven gear.
  6. Remove transfer drive gear.

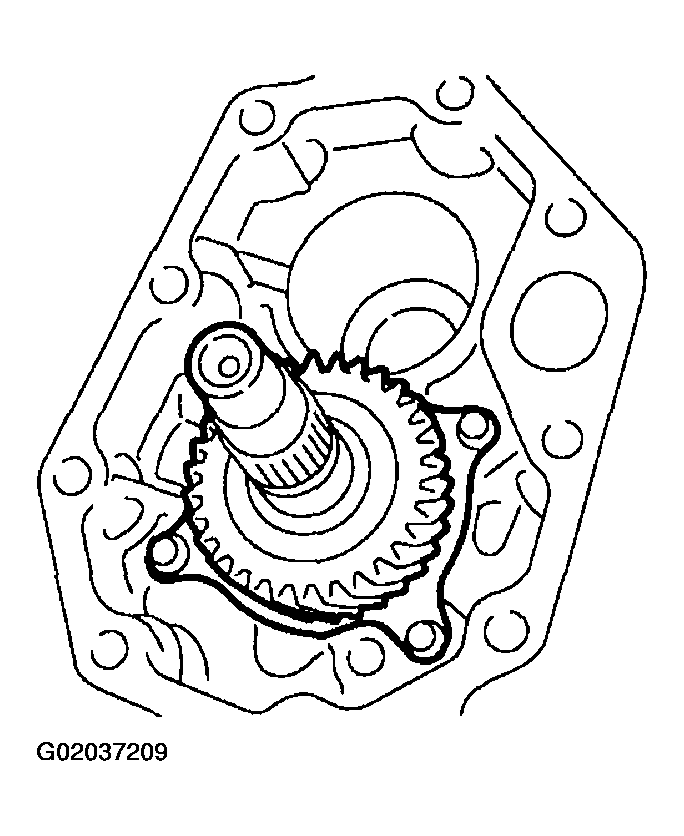

    Fig 1: Removing Transfer Drive Gear
    G02037209
