Pitching Stopper
Pitching Stopper
Install the pitching stopper.
Tightening torque:
T1:
50 N.m (5.1 kgf-m, 37 ft-lb)
T2:
58 N.m (5.9 kgf-m, 43 ft-lb)

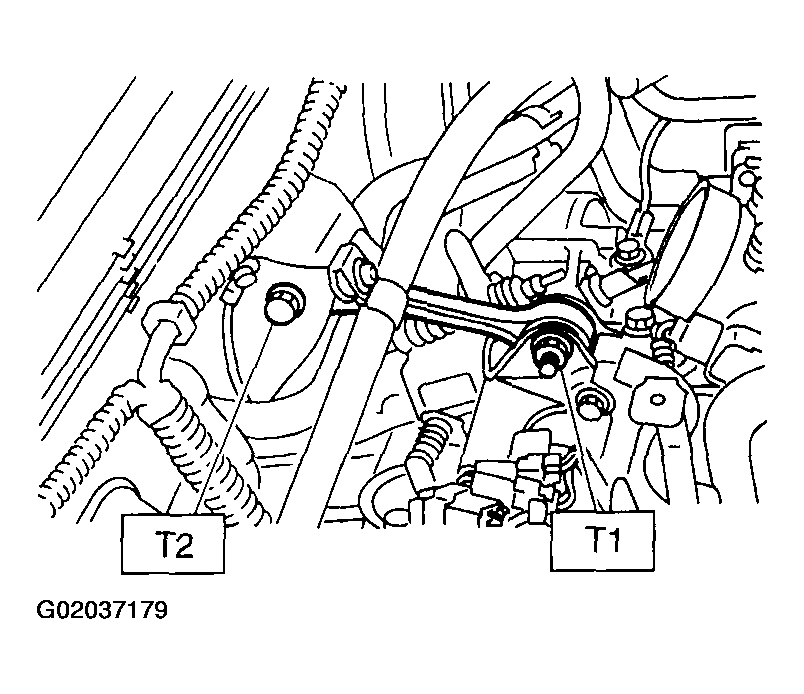

Fig 1: Installing The Pitching Stopper
Install the air intake duct and cleaner case.
