Code 41: Abnormal Abs Control Module: Wiring Diagram

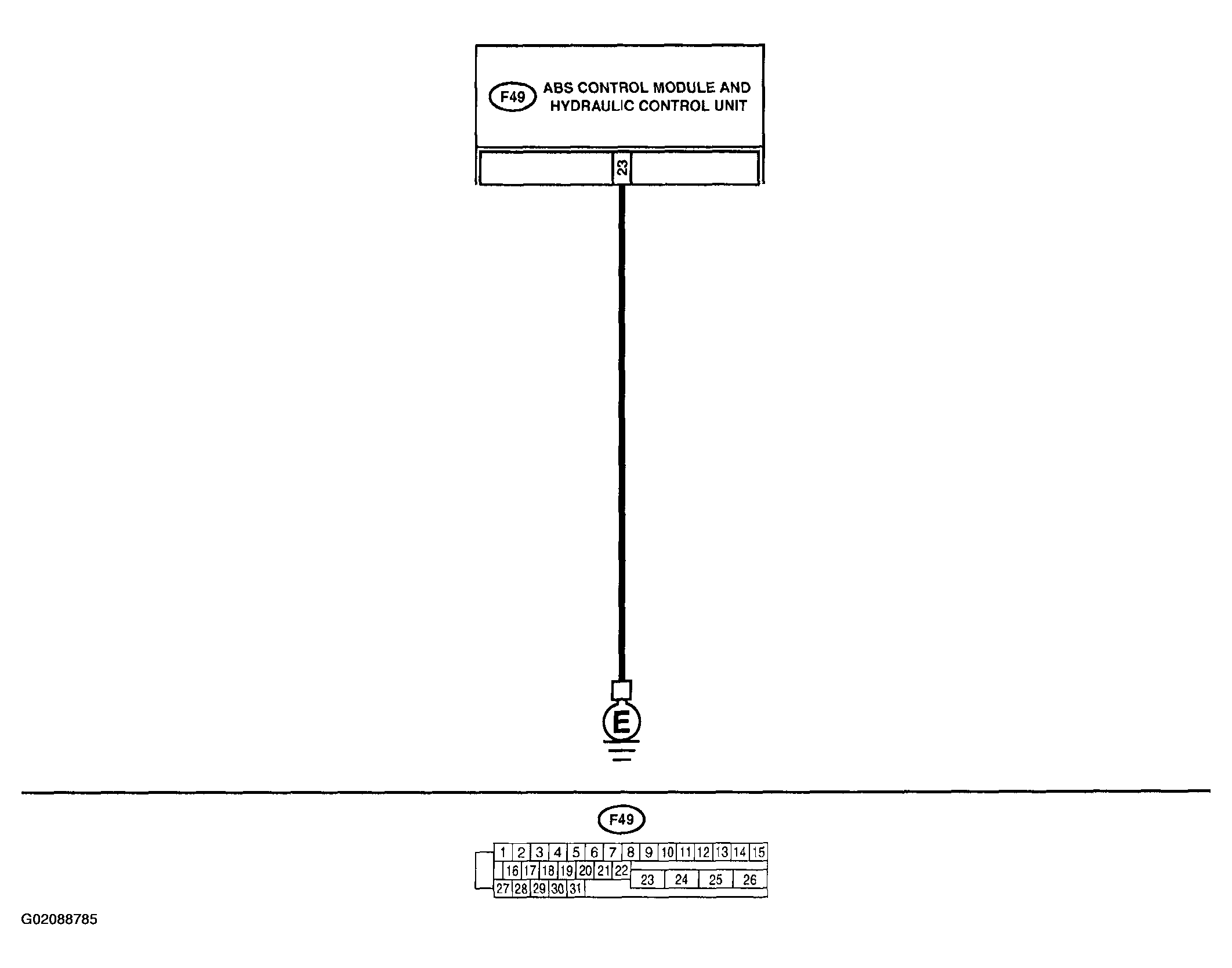

Fig 1: Trouble Code 41 - Abnormal ABS Control Module - Wiring Diagram
G02088785
