Read Current Data

  1. On the < Main Menu > display screen, select the {Each System Check} and press the < YES > key.
  2. On the < System Selection Menu > display screen, select the {Brake Control System} and press the < YES > key.
  3. Press the < YES > key after displayed the information of ABS type.
  4. On the < Brake Control Diagnosis > display screen, select the {Current Data Display & Save} and press the < YES > key.
  5. On the < Data Display Menu > display screen, select the {Data Display} and press the < YES > key.
  6. Using the scroll key, move the display screen up or down until the desired data is shown.
    • A list of the support data is shown in the following table.

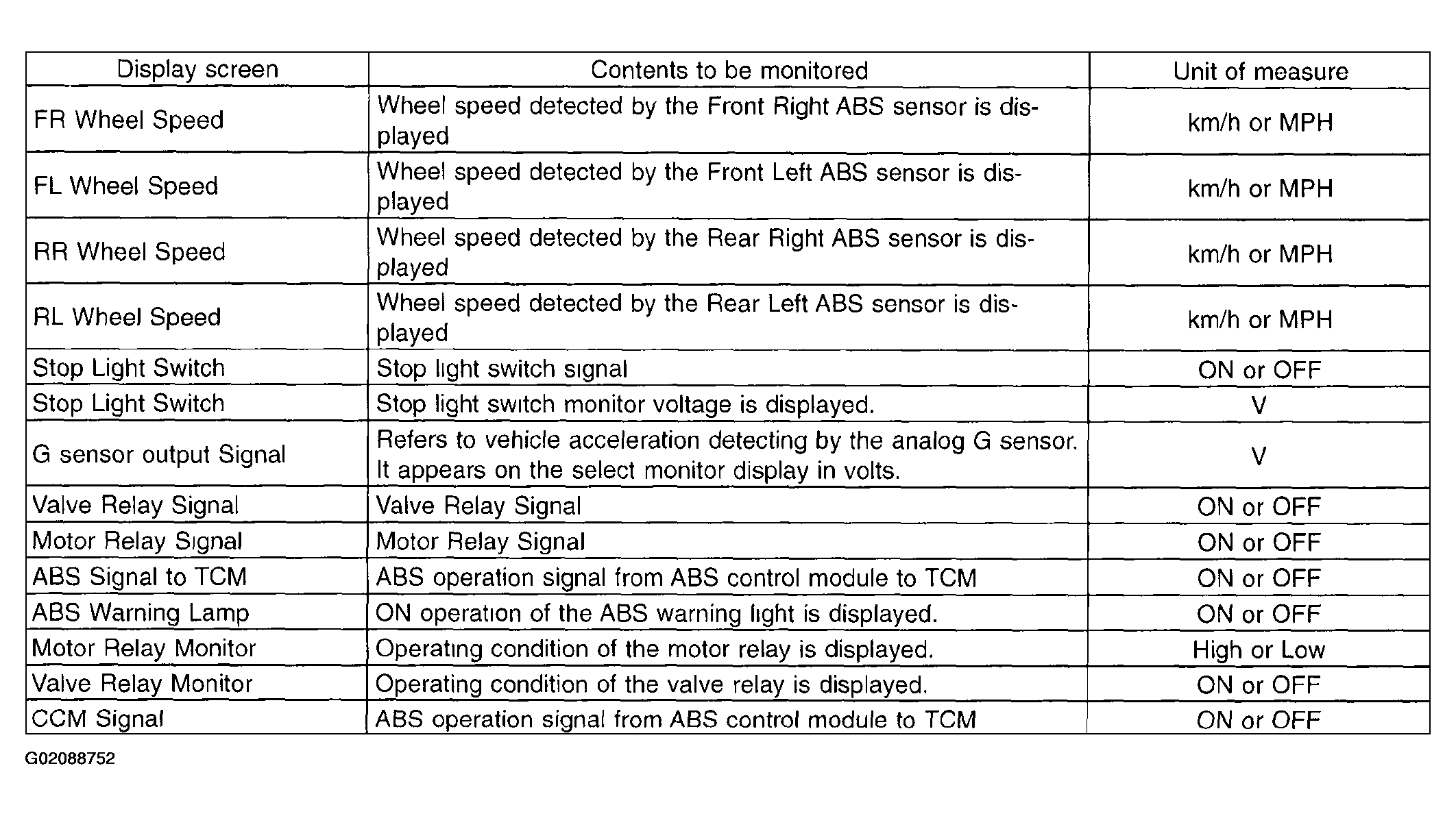

    Fig 1: Support Data Chart
    G02088752
    NOTE: For detailed operation procedure. See SUBARU SELECT MONITOR  .
