Vehicle Dynamics Control (Diagnostics)
›
Diagnostics Chart With Select Monitor
›
Trouble Code 29 Any One Of Four Abs Sensor Signal
›
Diagnostic Chart
Diagnostic Chart

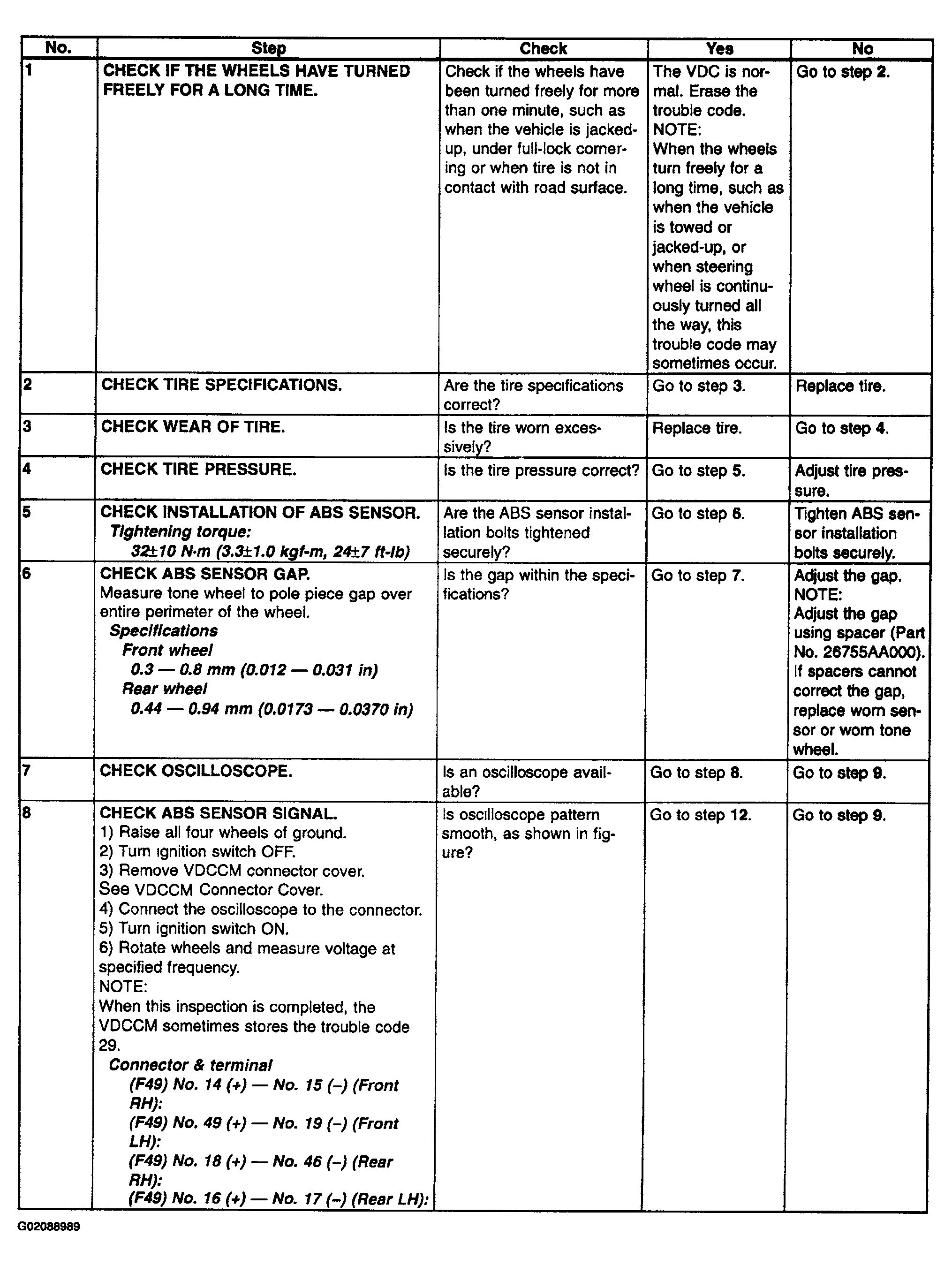

Fig 1: Diagnostic Chart - Trouble Code 29 - With Select Monitor (1 Of 2)

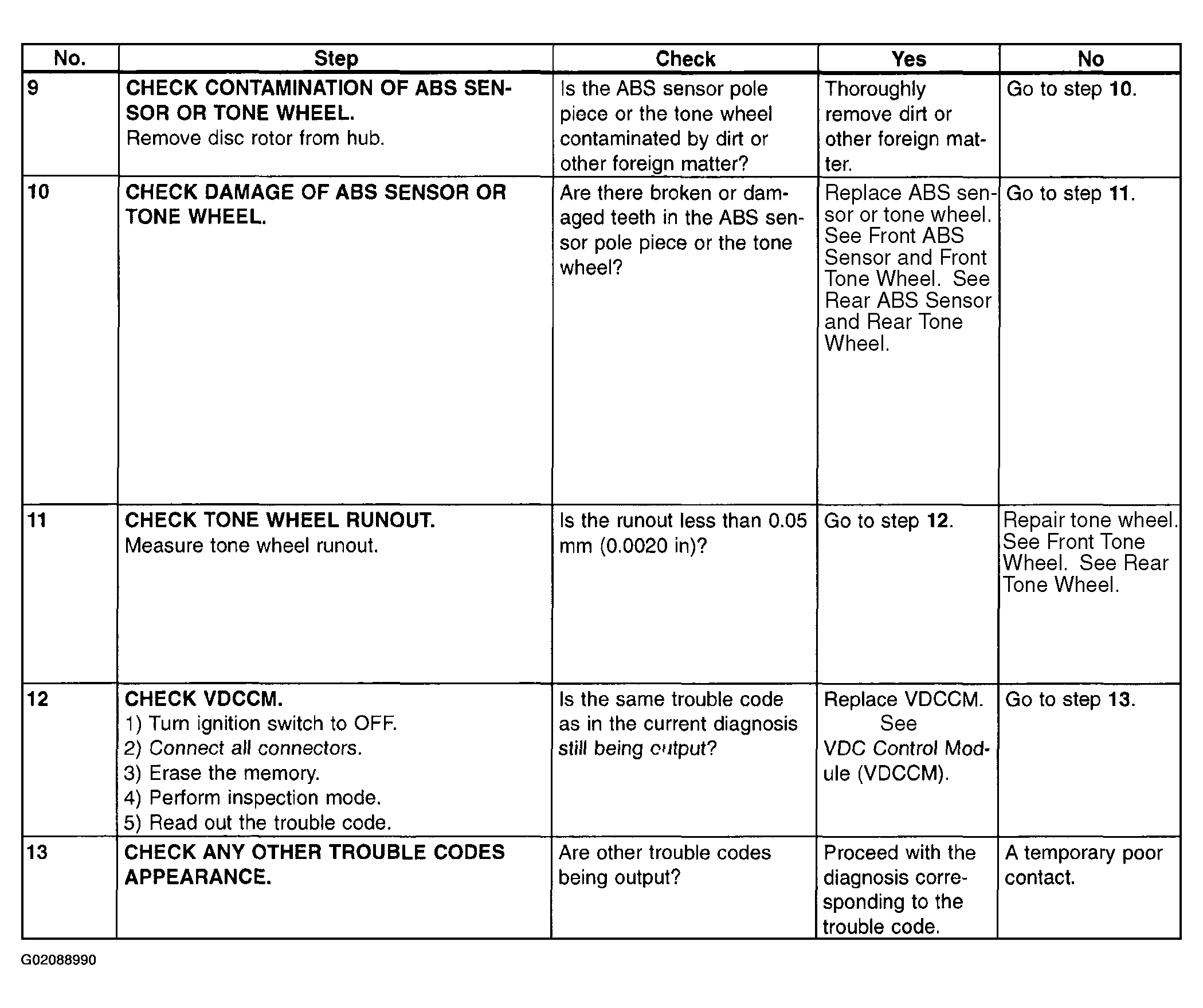

Fig 2: Diagnostic Chart - Trouble Code 29 - With Select Monitor (2 Of 2)
