Lubrication System (3.0L): General Description: Component

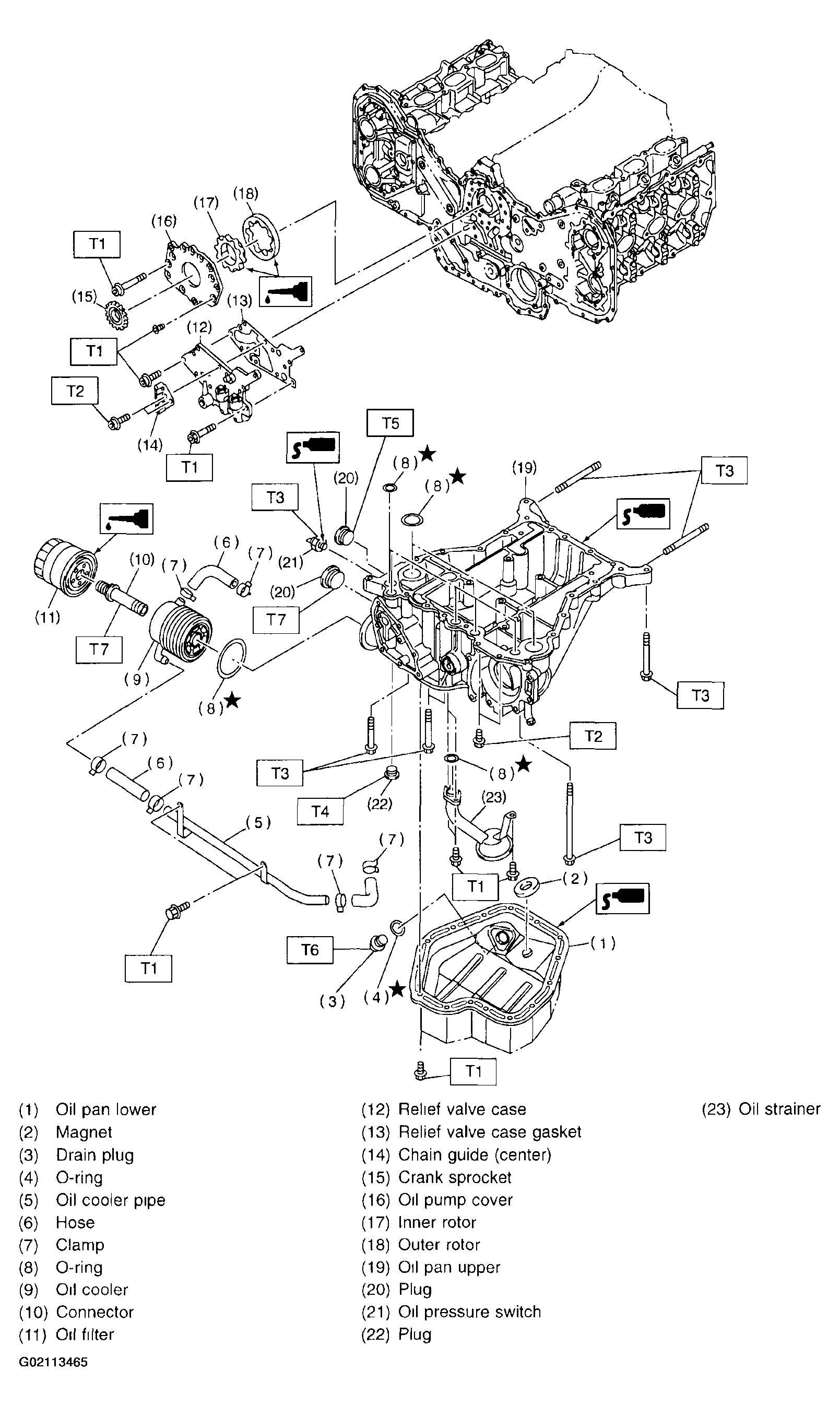

Fig 1: Exploded View Of Lubrication System

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  6.4 (0.65, 4.7)
2. T2:  7.8 (0.80, 5.8)
3. T3:  18 (1.8, 13)
4. T4:  34 (3.5, 25)
5. T5:  37 (3.8, 27)
6. T6:  44 (4.5, 33)
7. T7:  90 (9.2, 67)
