Fuel Filler Pipe

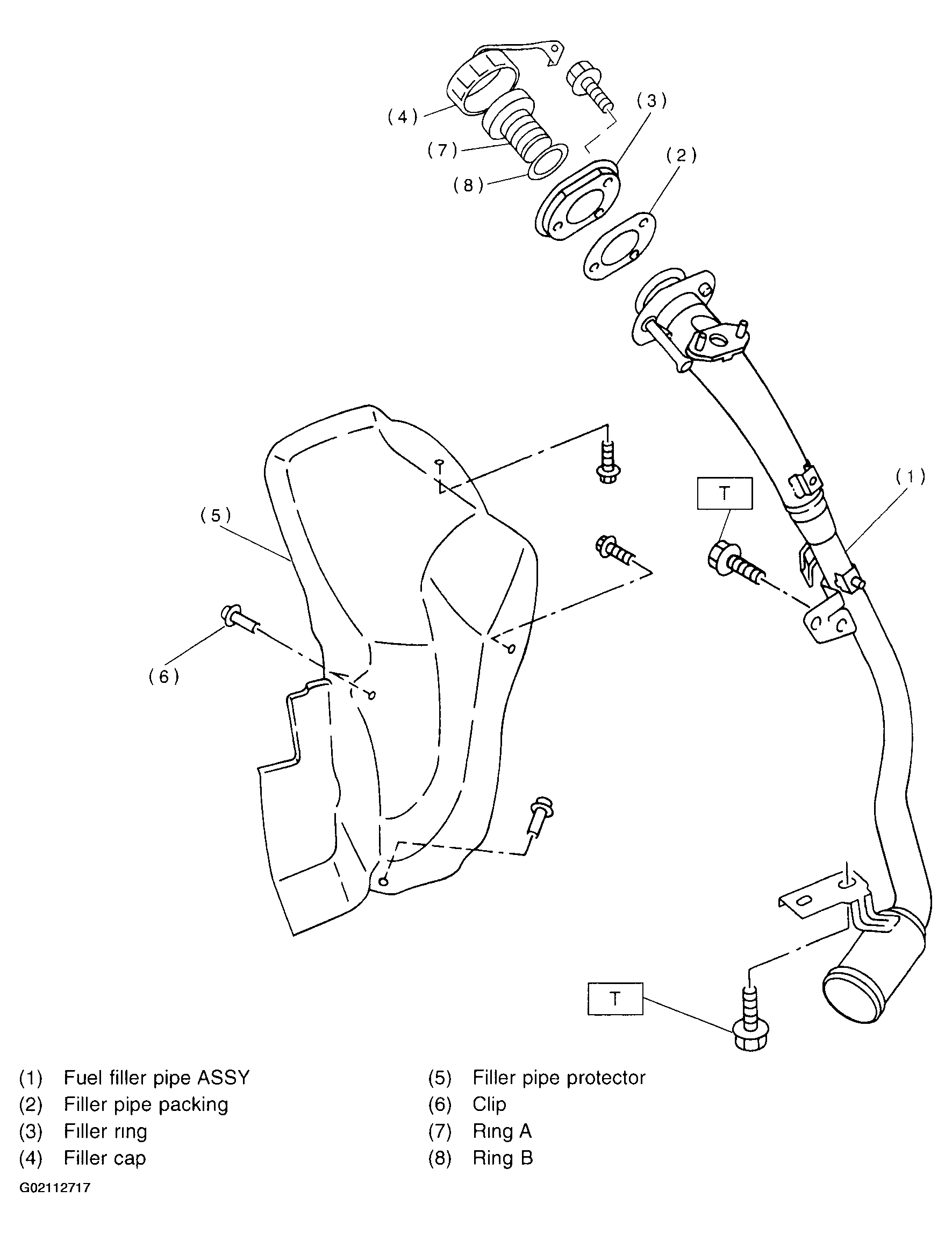

Fig 1: Exploded View Of Fuel Filler Pipe & Components
G02112717

Tightening torque: N-m (kgf-m, ft-lb)

  1. T:  7.5 (0. 75, 5.4)
