Fuel Line

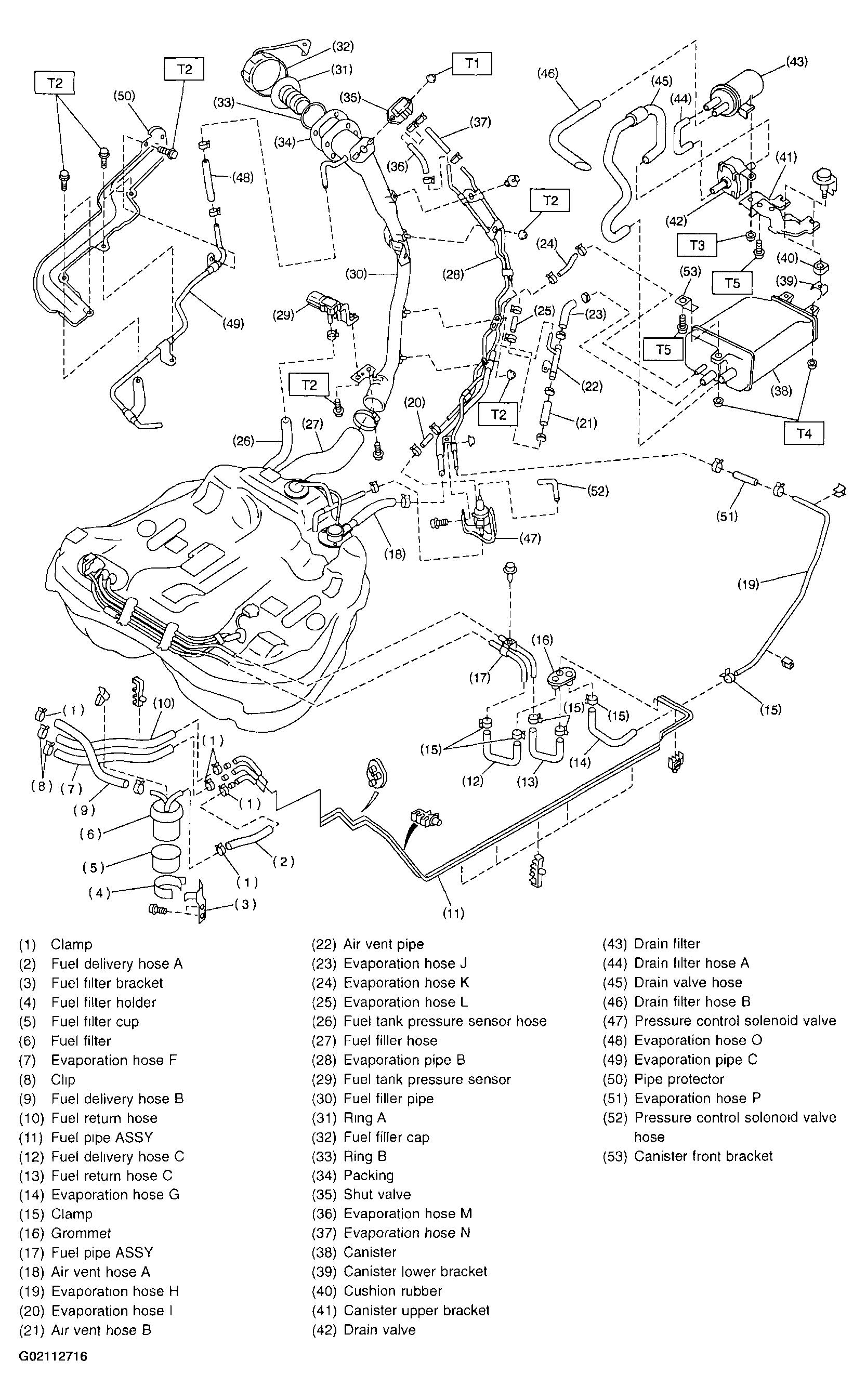

Fig 1: Exploded View Of Fuel Lines & Components
G02112716

Tightening torque: N-m (kgf-m, ft-lb)

  1. T1:  4.5 (0. 46, 3.3)
  2. T2:  7.5 (0.76, 5.5)
  3. T3:  18 (1.8, 13.0)
  4. T4:  23 (2.3, 16.6)
  5. T5:  33 (3.4, 25)
