Main Relay: Removal

Disconnect battery ground cable.

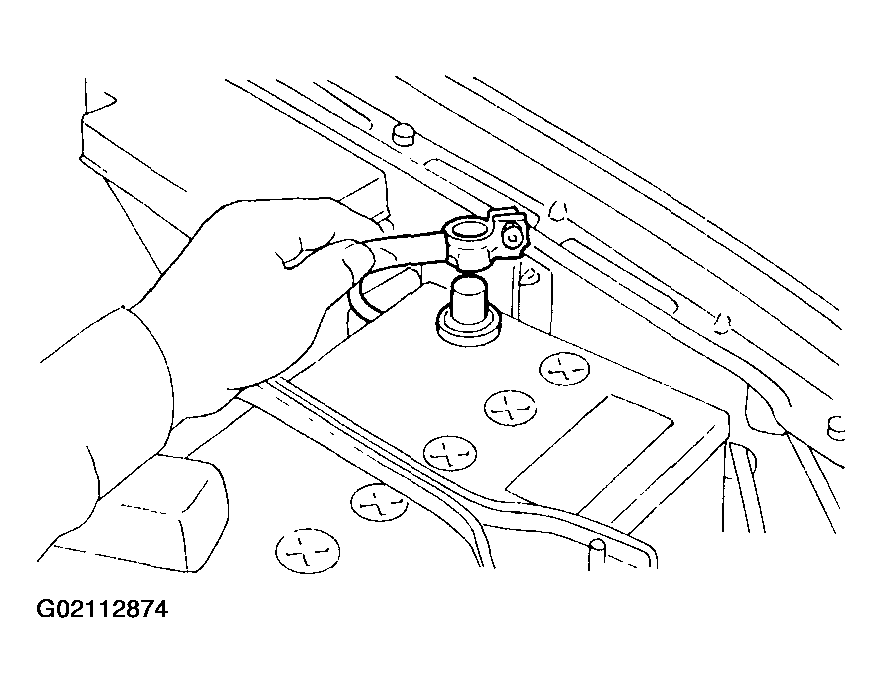

Fig 1: Disconnecting Battery Ground Cable
Remove lower inner trim of passenger side. See REMOVAL , Lower Inner Trim.
Disconnect connectors from main relay.
Remove bolt which holds main relay bracket on body.

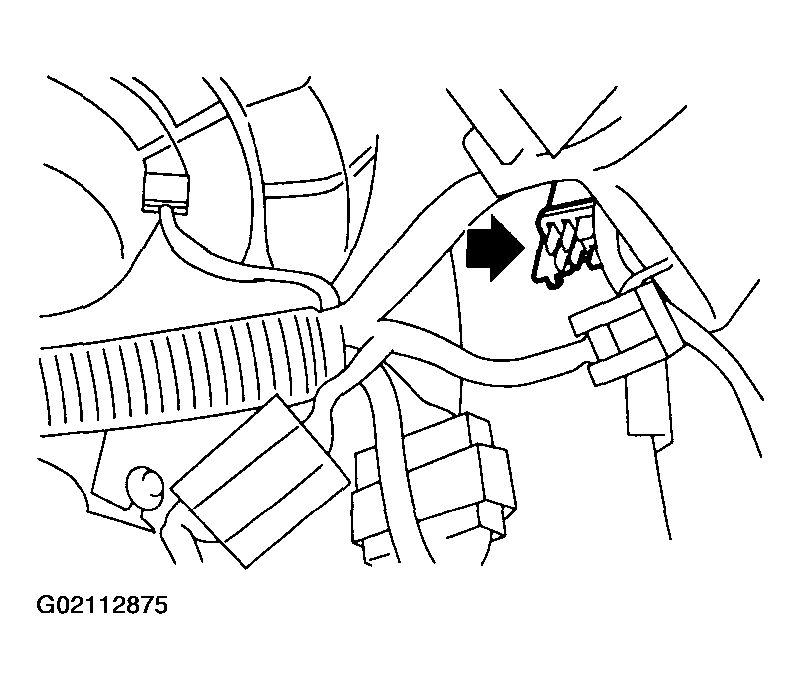

Fig 2: Removing Bolt Holding Main Relay Bracket
