Air Cleaner: Installation

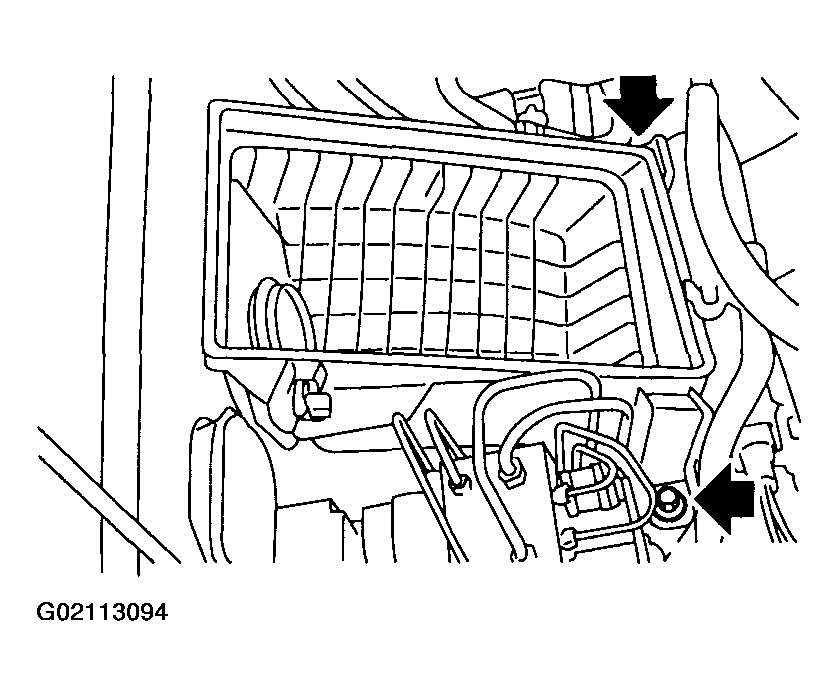

Install the air cleaner lower case.
1. Tightening torque: 32.3 N.m (3.3 kgf-m, 23.9 ft-lb)
Fig 1: Installing Air Cleaner Lower Case
Set the air cleaner.
Install the air cleaner upper cover.
NOTE: Before installing air cleaner upper cover, align holes with protruding portions of air cleaner lower case, then secure upper cover to lower case.

Fig 2: Installing Air Cleaner Upper Case

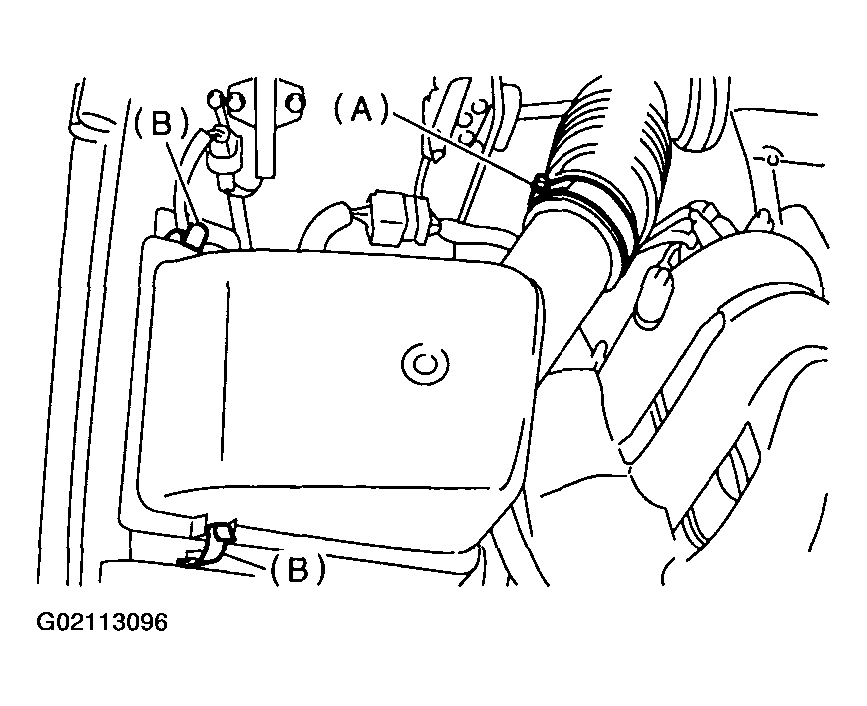

Install the clip (B) above the air cleaner upper cover.
Tighten clamp (A), and connect air intake boot and air cleaner upper cover.

Fig 3: Installing Clip & Tightening Clamp
