Intake Manifold: Removal

  1. Release fuel pressure. See RELEASING OF FUEL PRESSURE , OPERATION, Fuel.

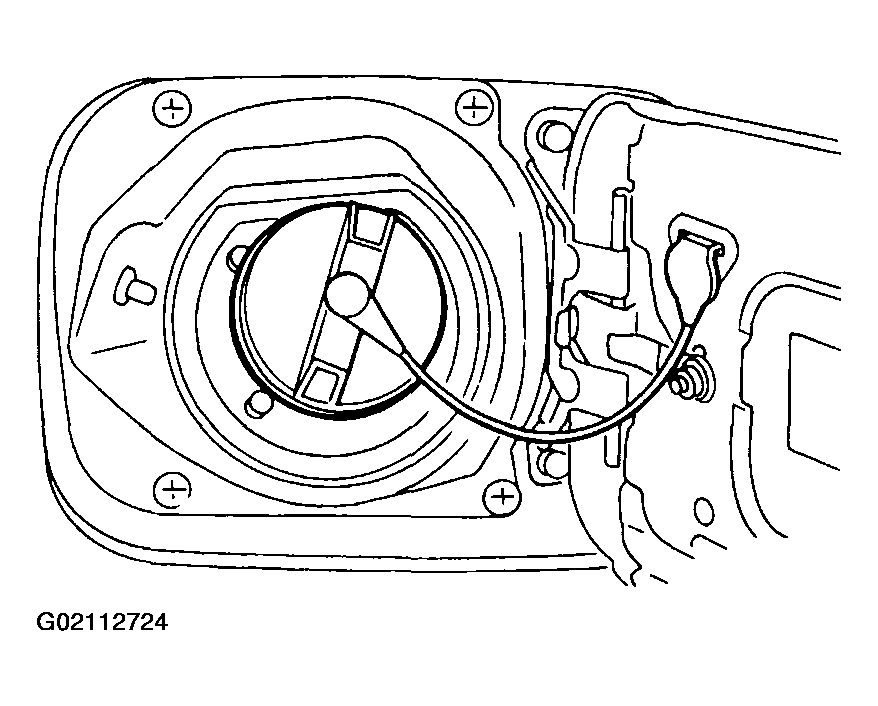

  2. Open fuel flap lid, and remove fuel filler cap.
    Fig 1: Removing Fuel Filler Cap
    G02112724
  3. Disconnect battery ground cable.

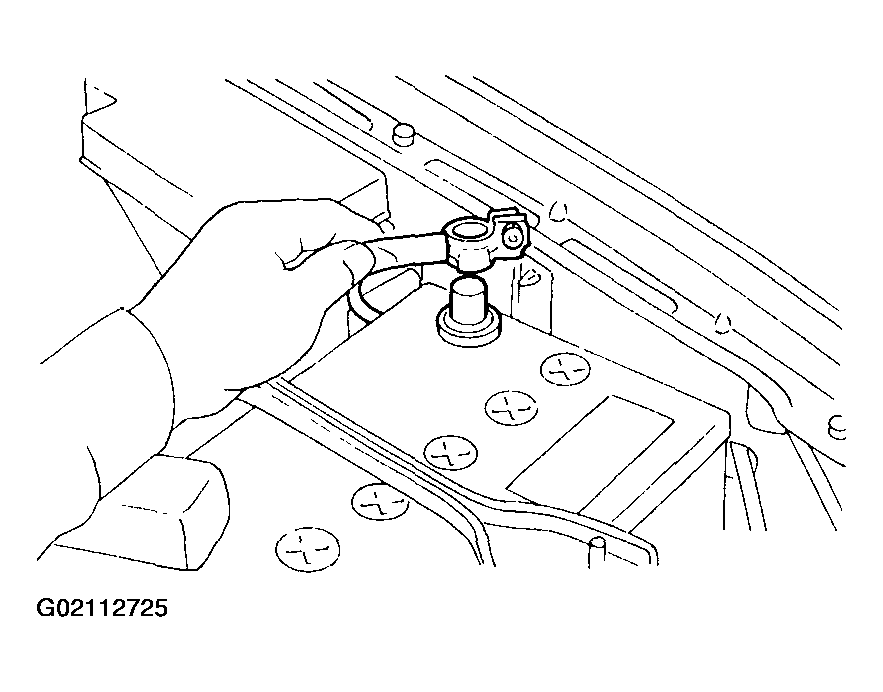

    Fig 2: Disconnecting Battery Ground Cable
    G02112725
  4. Remove air intake duct, air cleaner assembly and air intake chamber. See REMOVAL  , Air Intake Duct, REMOVAL  , Air Cleaner and REMOVAL  , Air Intake Chambers.
  5. Disconnect accelerator cable (A).
  6. Disconnect cruise control cable (B). (With cruise control model)

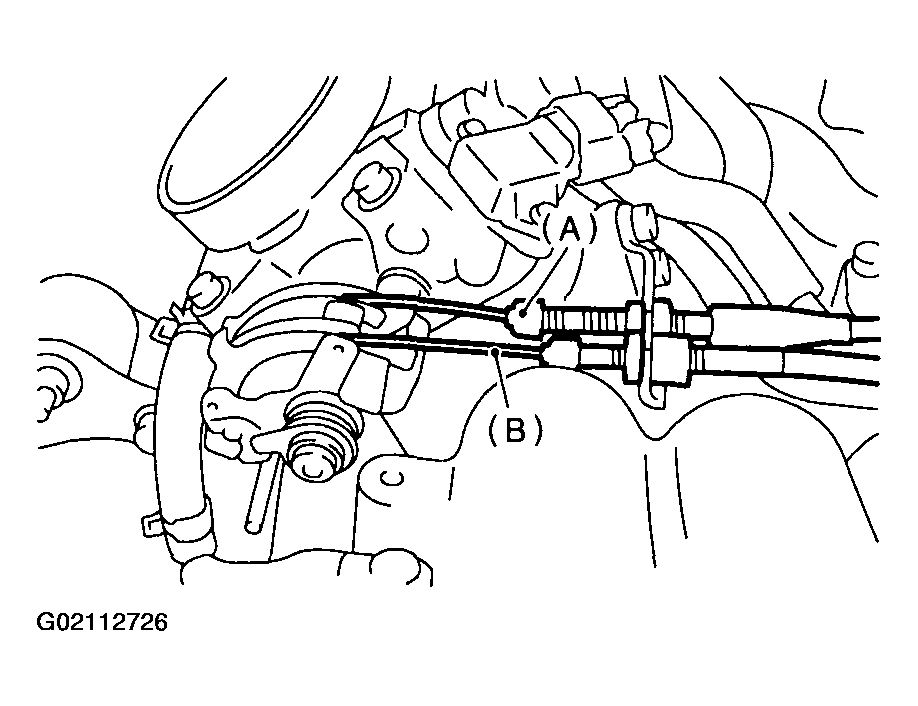

    Fig 3: Disconnecting Accelerator Cable & Cruise Control Cable (With Cruise Control Model)
    G02112726
  7. Remove power steering pump and tank from brackets.
    1. Remove V-belt. See REMOVAL , V-belt.
    2. Remove power steering oil pipe with bracket.

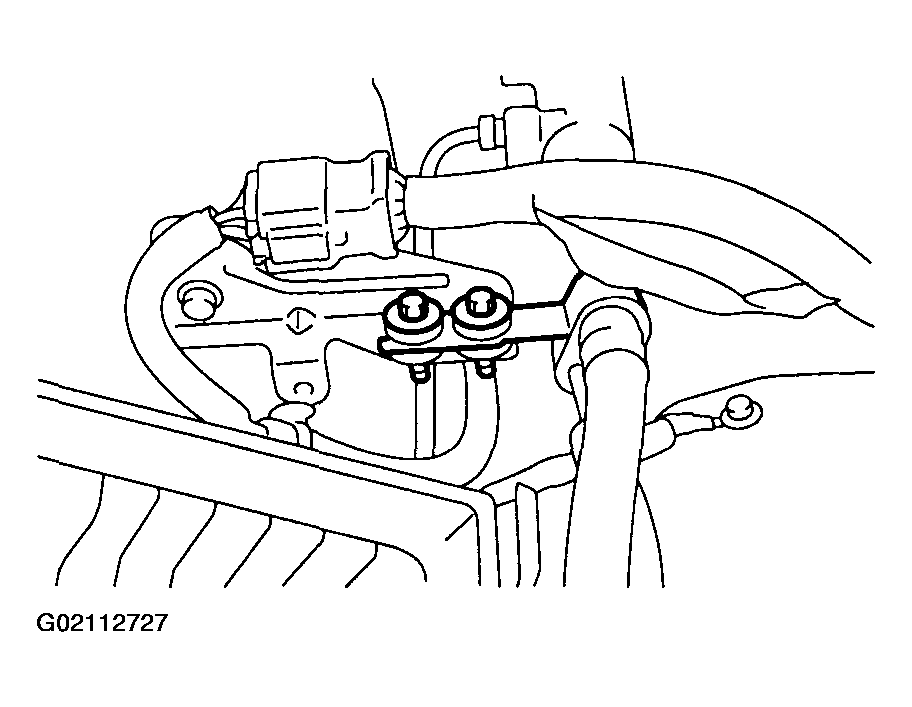

      Fig 4: Removing Power Steering Oil Pipe With Bracket
      G02112727
    3. Remove bolts which install power steering pump bracket.
      NOTE: Do not separate hose and pipe from the main pump.

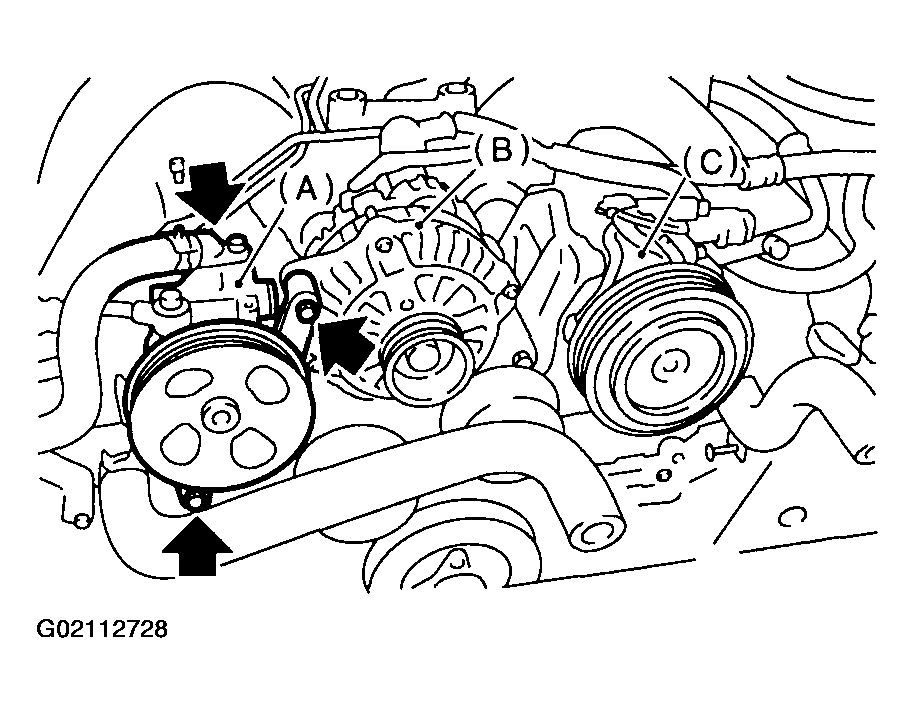

      Fig 5: Removing Bolts From Power Steering Pump Bracket
      G02112728

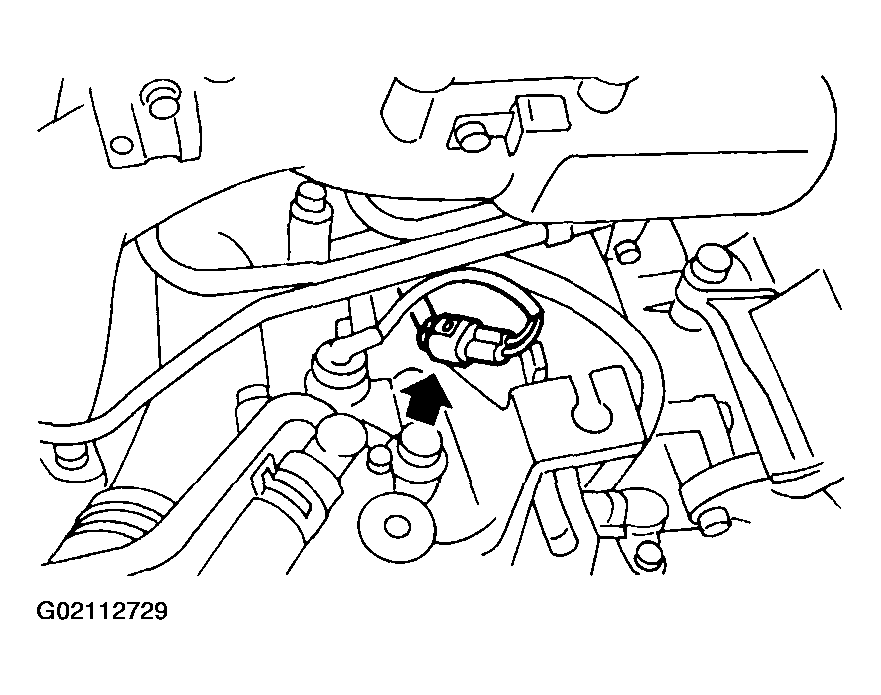

    4. Disconnect power steering pump switch connector.
      Fig 6: Disconnecting Power Steering Pump Switch Connector
      G02112729
    5. Remove power steering tank from the bracket by pulling it upward.

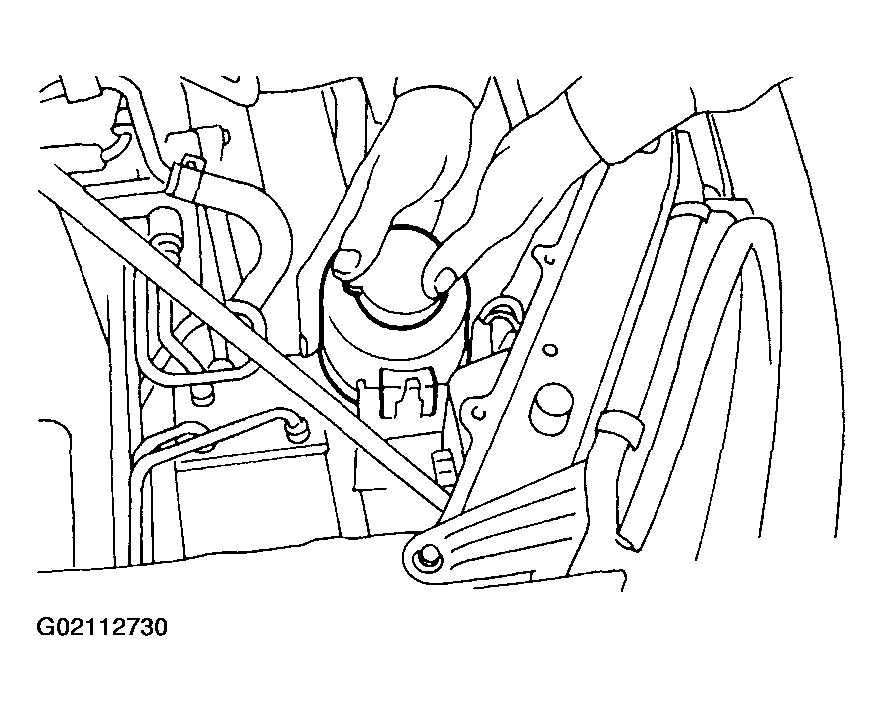

      Fig 7: Removing Power Steering Tank From Bracket Pulling Upward
      G02112730

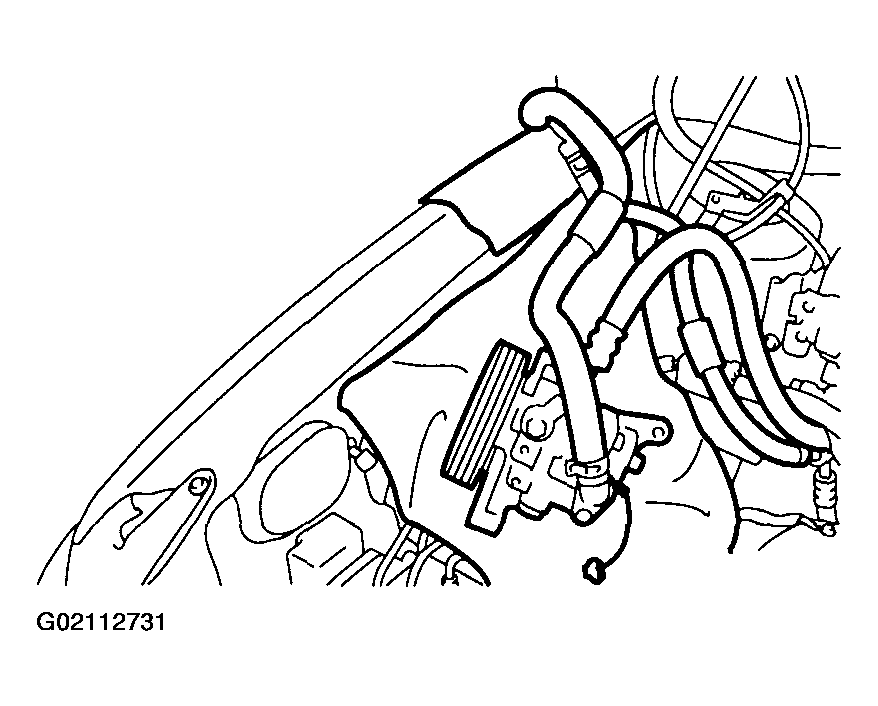

    6. Place power steering pump on the right side wheel apron.
      Fig 8: Placing Power Steering Pump On Right Side Of Wheel Apron
      G02112731

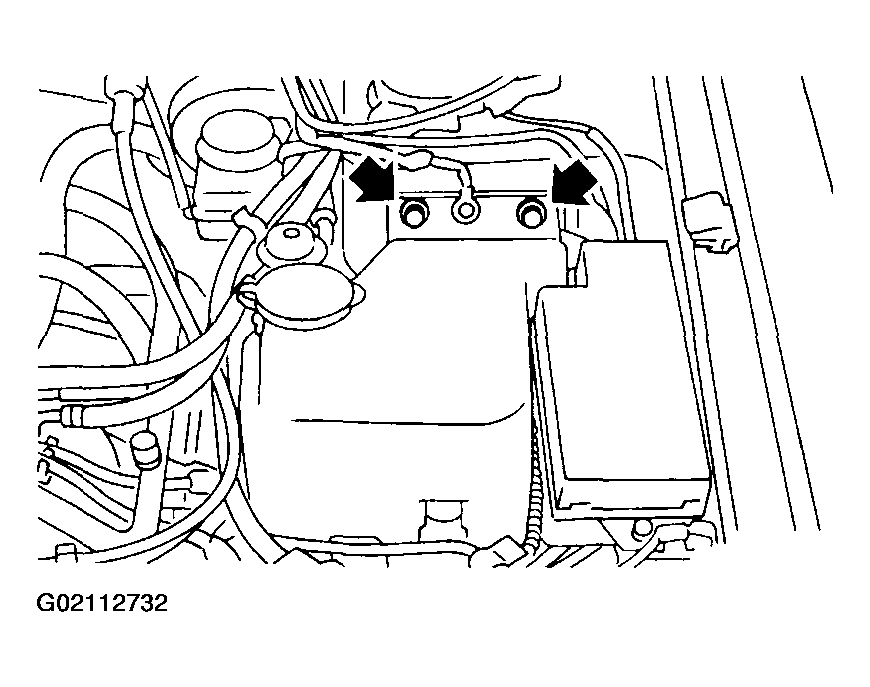

  8. Remove two bolts which install washer tank on body.
    Fig 9: Removing Bolts From Washer Tank On Body
    G02112732
  9. Disconnect connector from front window washer motor.
  10. Disconnect connector from rear gate glass washer motor.

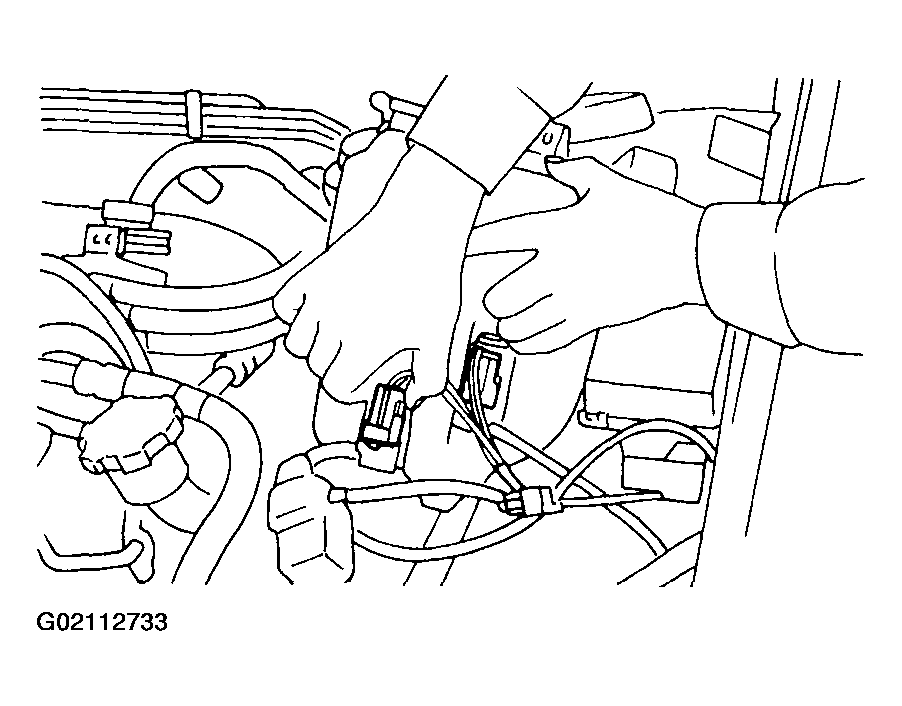

    Fig 10: Disconnecting Connector From Rear Gate Glass Washer Motor
    G02112733
  11. Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
  12. Move washer tank, and secure it away from working area.

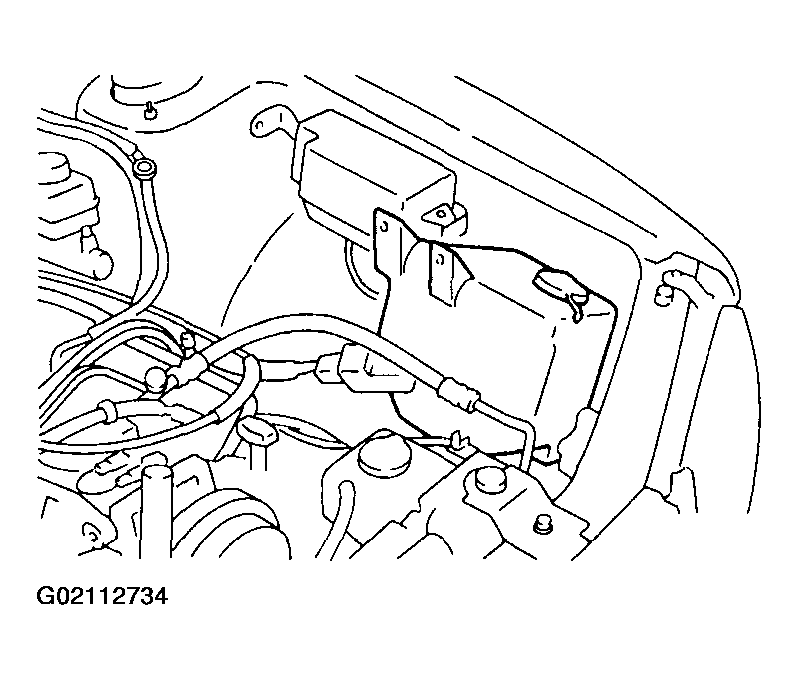

    Fig 11: Securing Washer Tank Away From Working Area
    G02112734

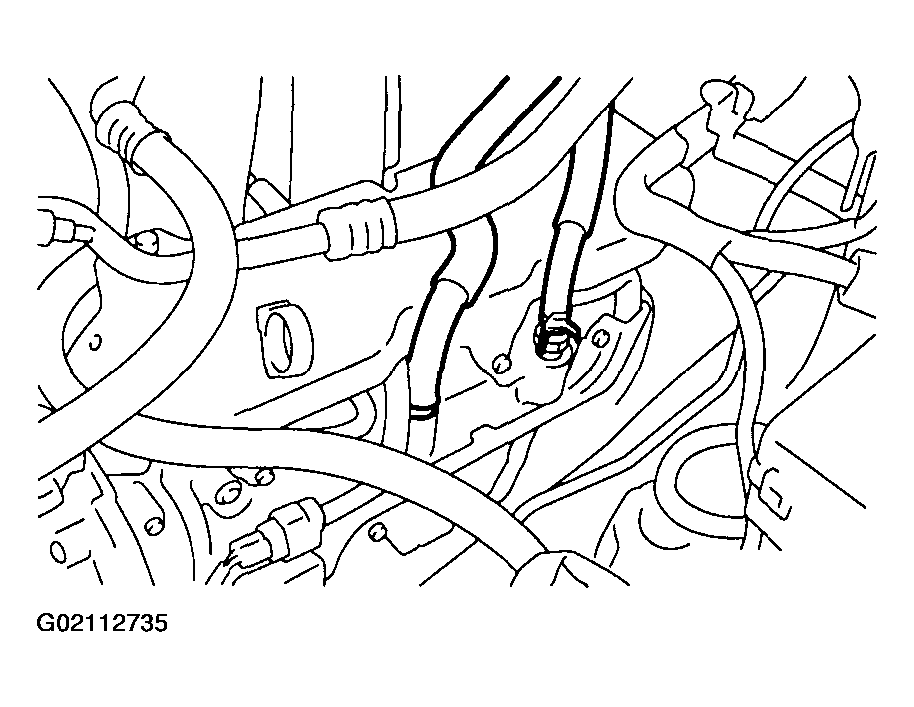

  13. Disconnect PCV hoses from cylinder head cover.
    Fig 12: Disconnecting PCV Hoses From Cylinder Head Cover
    G02112735

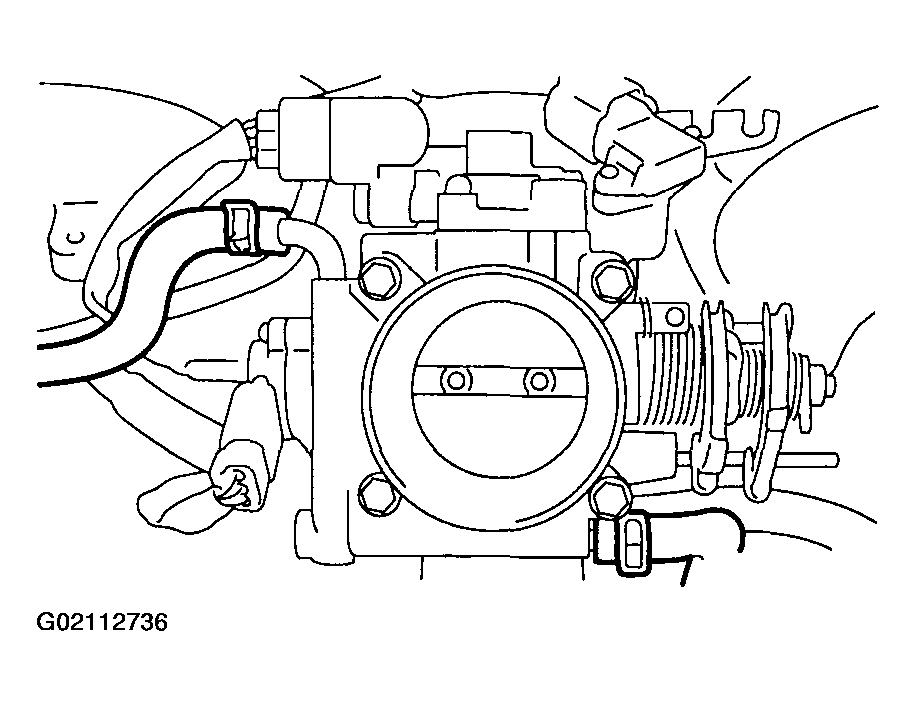

  14. Disconnect engine coolant hose from throttle body.
    Fig 13: Disconnecting Engine Coolant Hose From Throttle Body
    G02112736

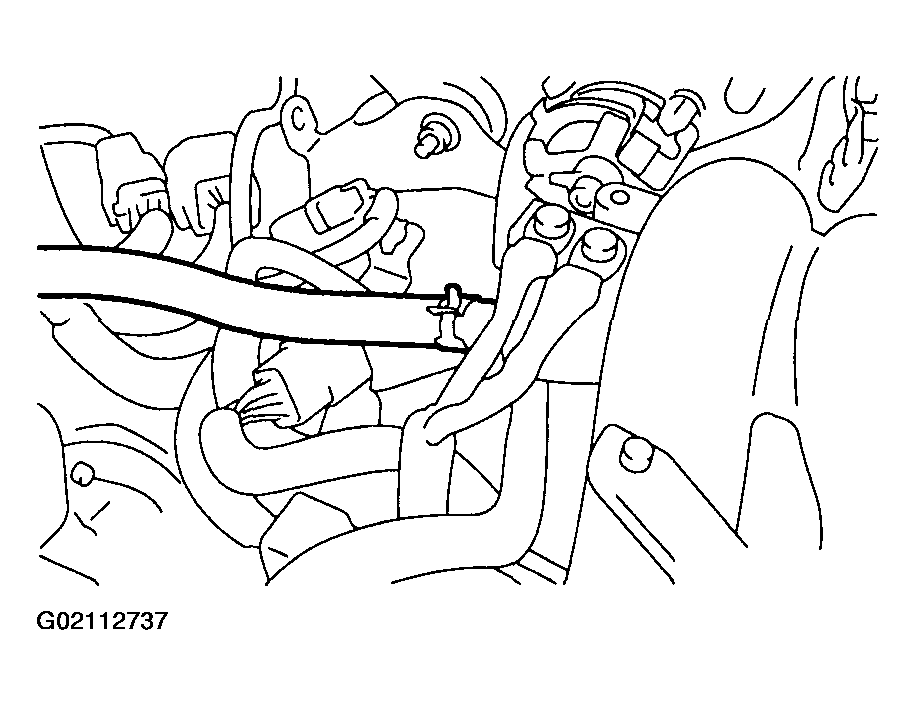

  15. Disconnect brake booster hose.
    Fig 14: Disconnecting Brake Booster Hose
    G02112737
  16. Remove EGR pipe from EGR valve.
    NOTE: Be careful not to drop gaskets.

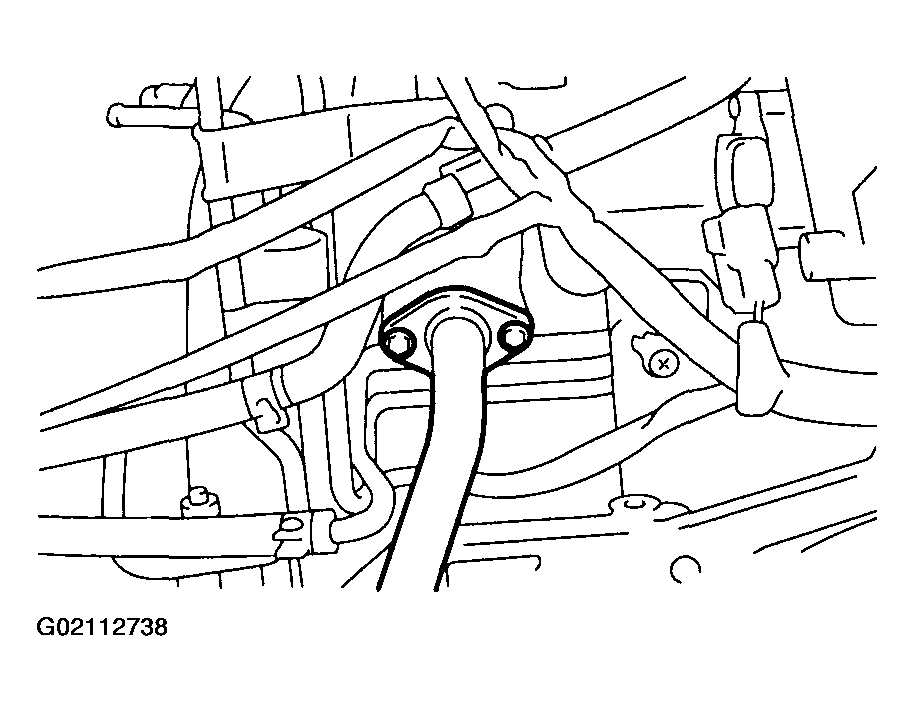

    Fig 15: Removing EGR Pipe From EGR Valve
    G02112738
  17. Disconnect engine harness connectors from bulkhead harness connectors.

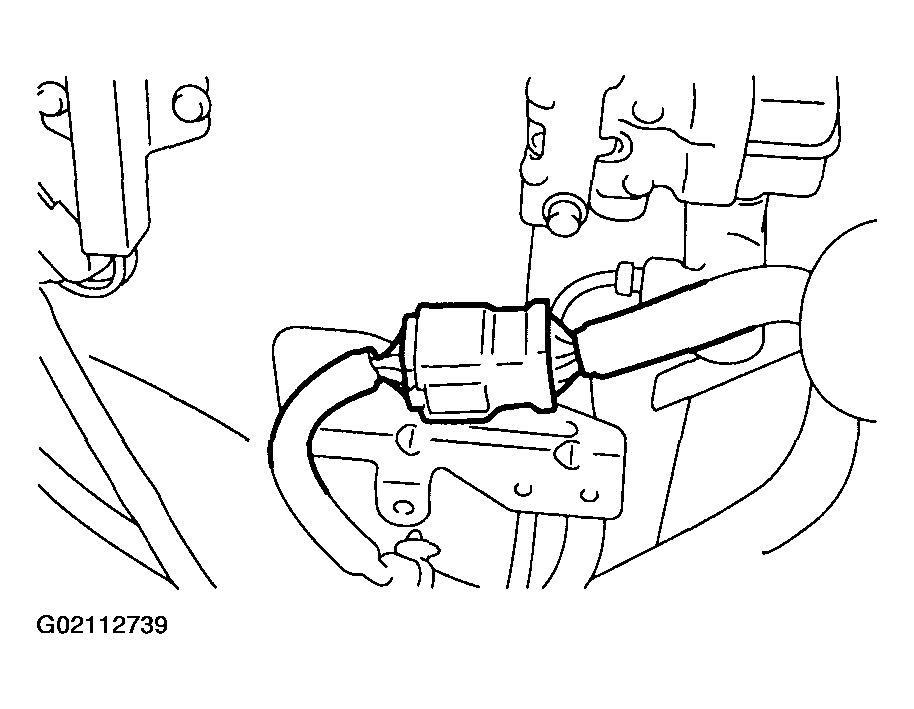

    Fig 16: Disconnecting Engine Harness Connectors From Bulkhead Harness Connectors
    G02112739
  18. Disconnect engine ground terminal from intake manifold.

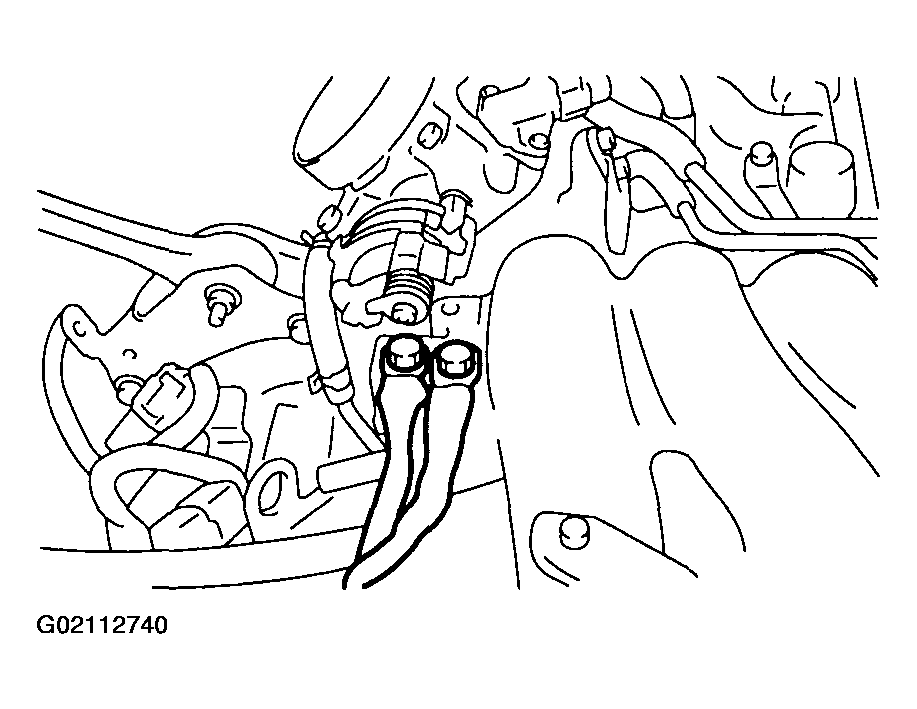

    Fig 17: Disconnecting Engine Ground Terminal From Intake Manifold
    G02112740
  19. Disconnect fuel hoses from fuel pipes.
    WARNING:
    • Do not spill fuel.
    • Catch fuel from hoses in a container or cloth.

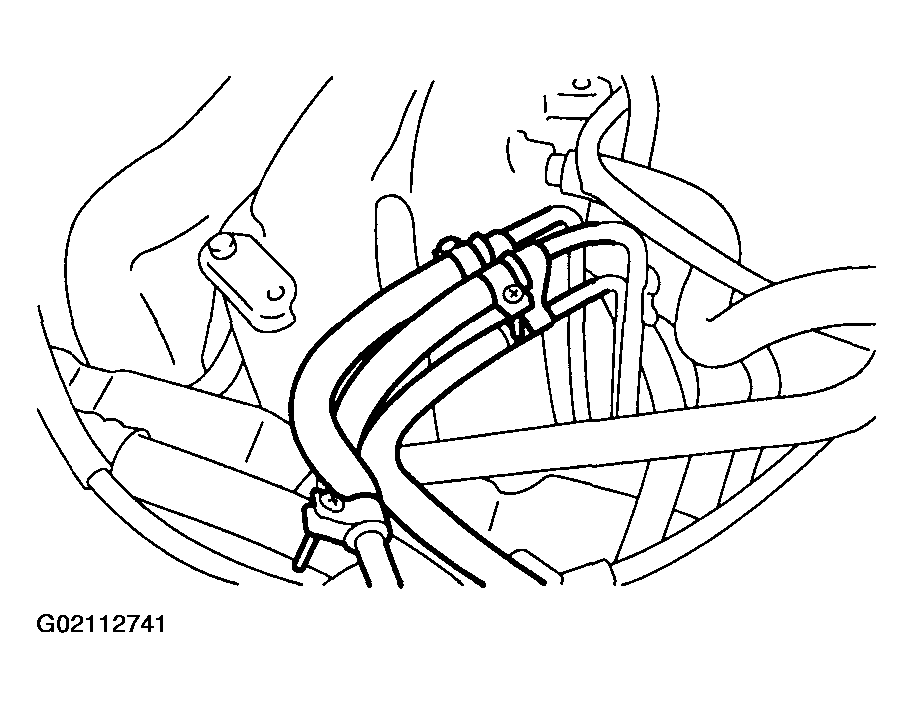

      Fig 18: Disconnecting Fuel Hoses From Fuel Pipes
      G02112741
  20. Remove ground cable from fuel pipe protector LH.
    Fig 19: Removing Ground Cable From Fuel Pipe Protector LH
    G02112742
  21. Remove fuel pipe protector LH.

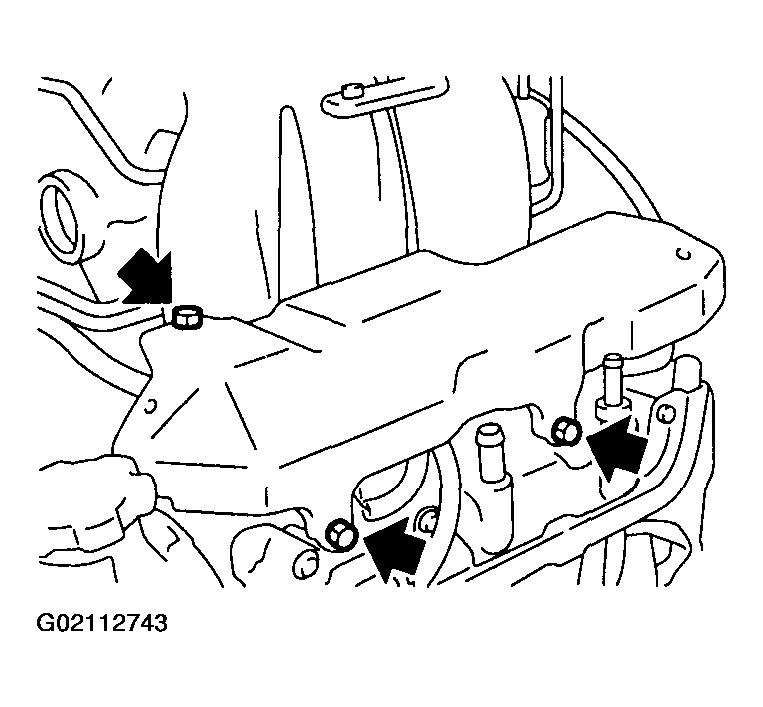

    Fig 20: Removing Fuel Pipe Protector LH
    G02112743

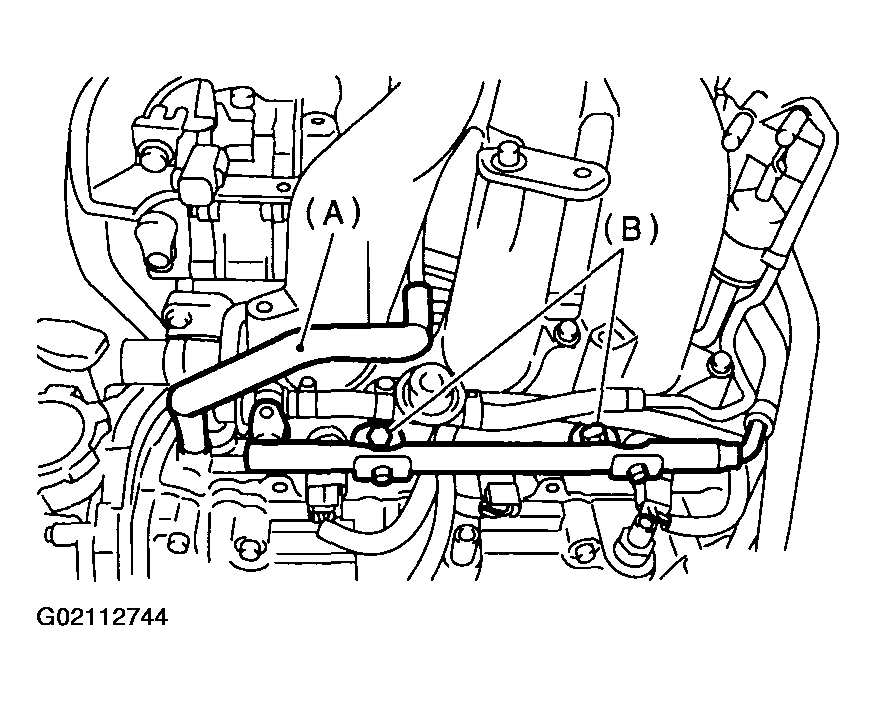

  22. Disconnect air assist hose (A).
  23. Remove the bolt (B), which holds fuel injector pipe LH onto cylinder head.

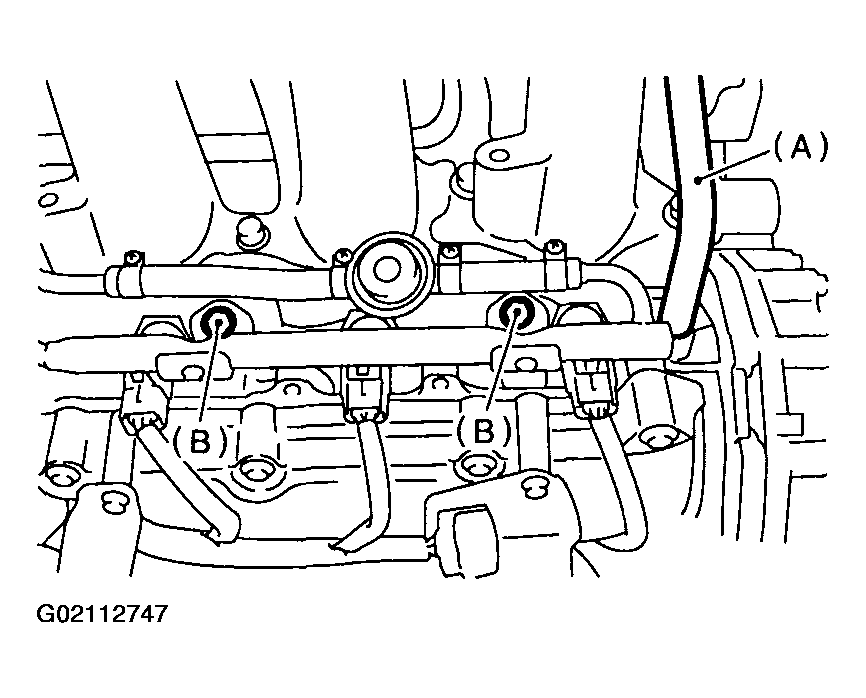

    Fig 21: Disconnecting Air Assist Hose & Bolt Holding Fuel Injector Pipe LH
    G02112744
  24. Remove ground cable from fuel pipe protector RH.

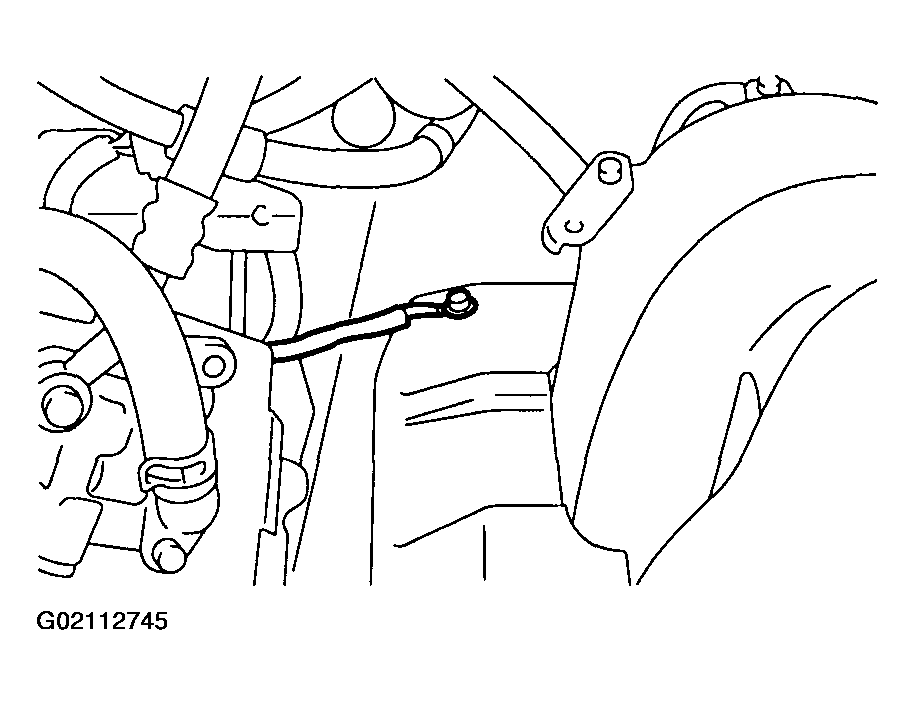

    Fig 22: Removing Ground Cable From Fuel Pipe Protector RH
    G02112745
  25. Remove fuel pipe protector RH.

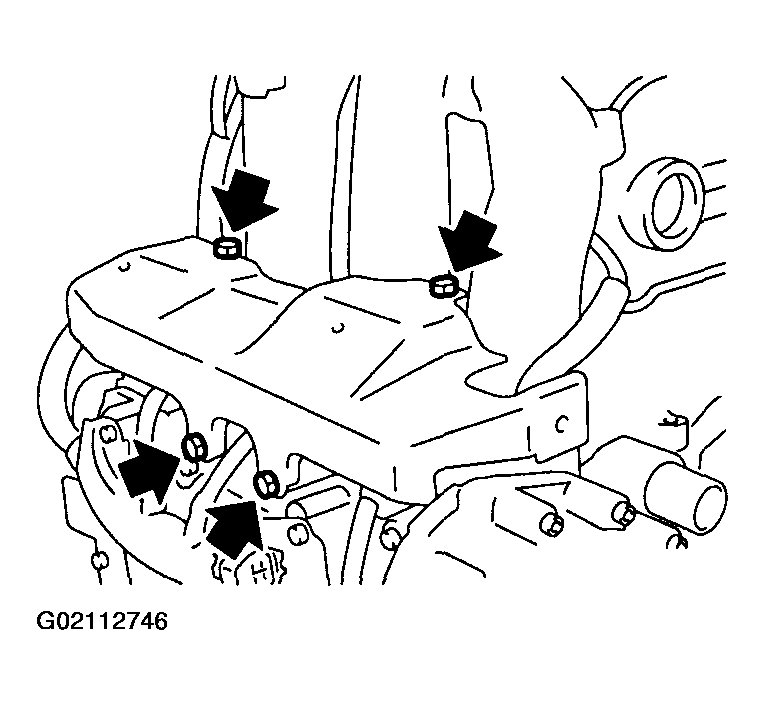

    Fig 23: Removing Fuel Pipe Protector RH
    G02112746
  26. Disconnect air assist hose (A).

    Remove the bolt (B), which holds fuel injector pipe RH onto cylinder head.

    Fig 24: Disconnecting Air Assist Hose & Bolt Holding Fuel Injector Pipe RH
    G02112747
  27. Remove bolts which holds intake manifold onto cylinder heads.

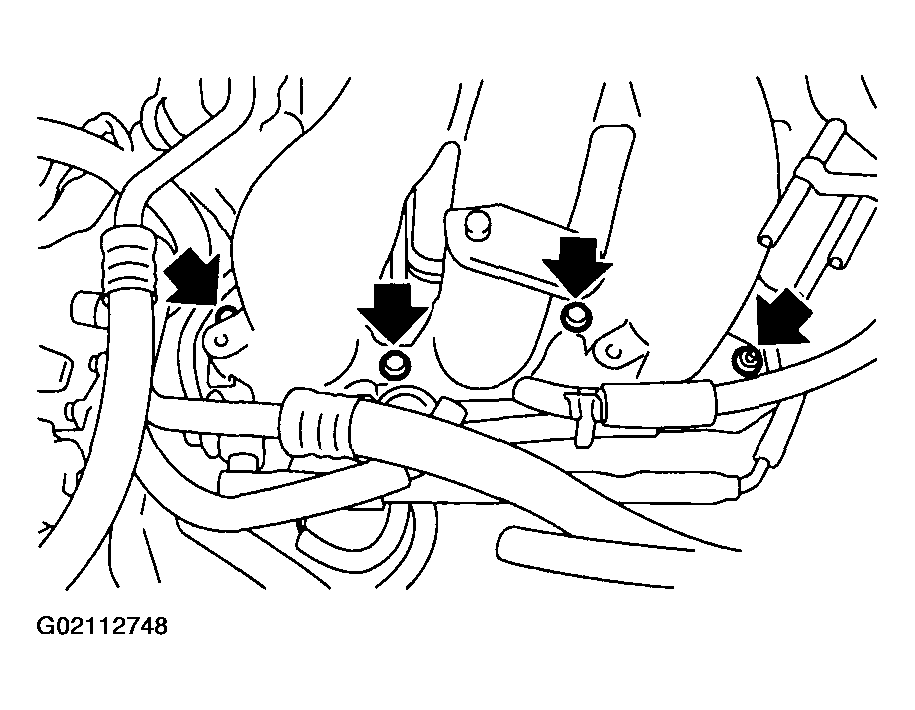

    Fig 25: Removing Bolts Holding Intake Manifold (1 Of 2)
    G02112748

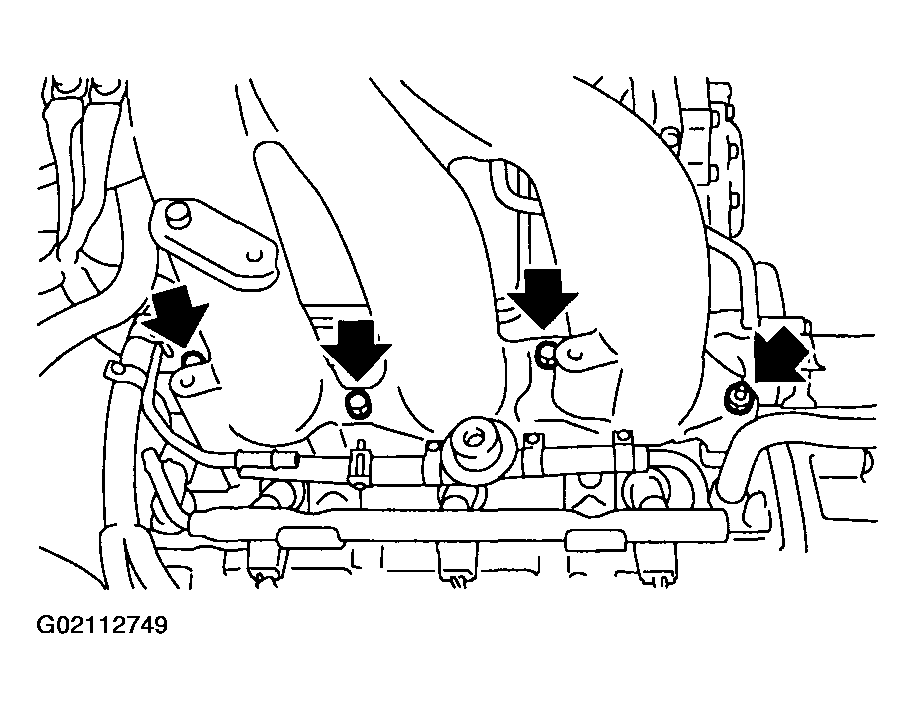

    Fig 26: Removing Bolts Holding Intake Manifold (2 Of 2)
    G02112749
  28. Remove intake manifold.
