At Shift Lock Control Module Power Supply And Ground Line

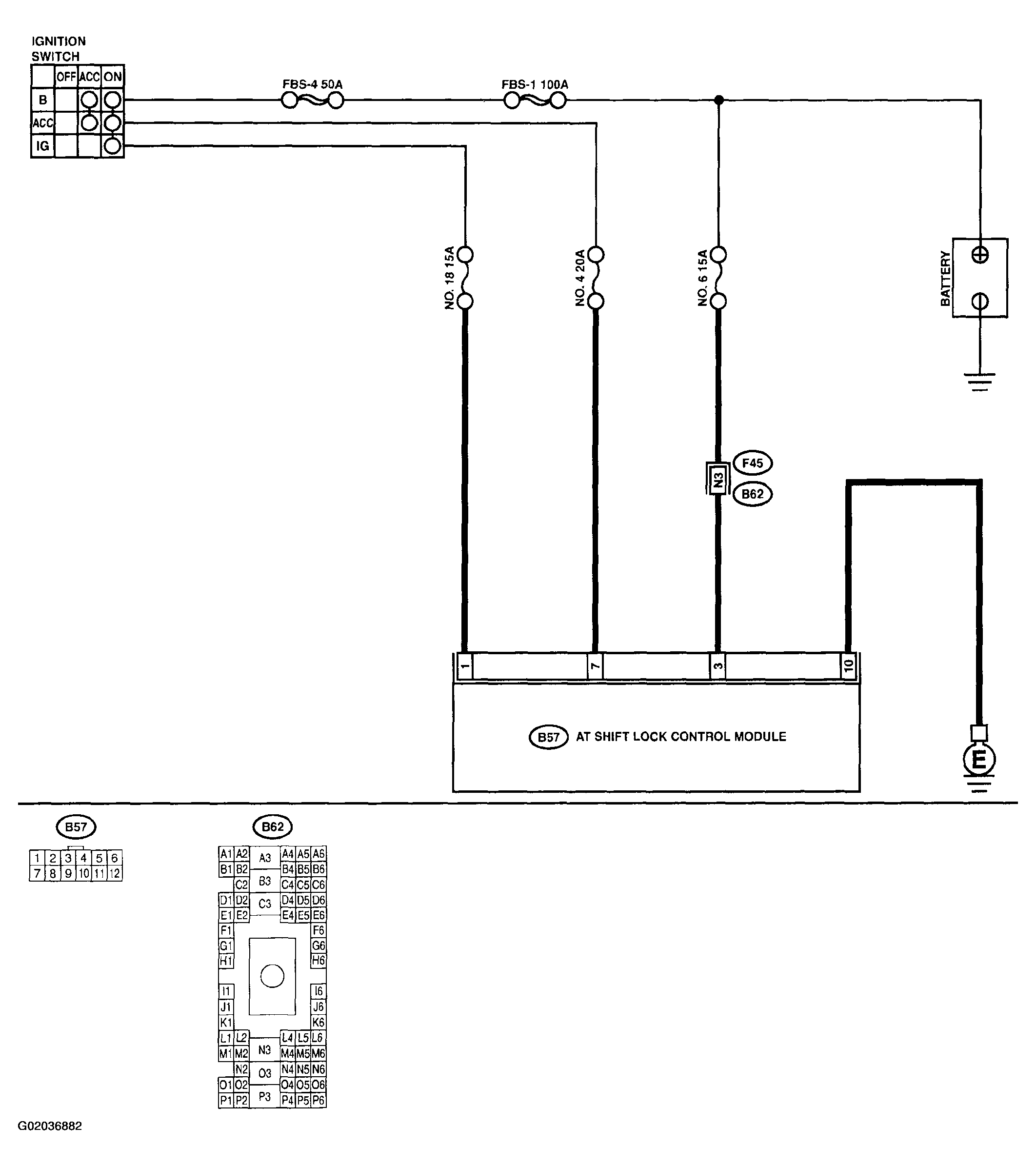

Fig 1: Wiring Diagram

G02036882

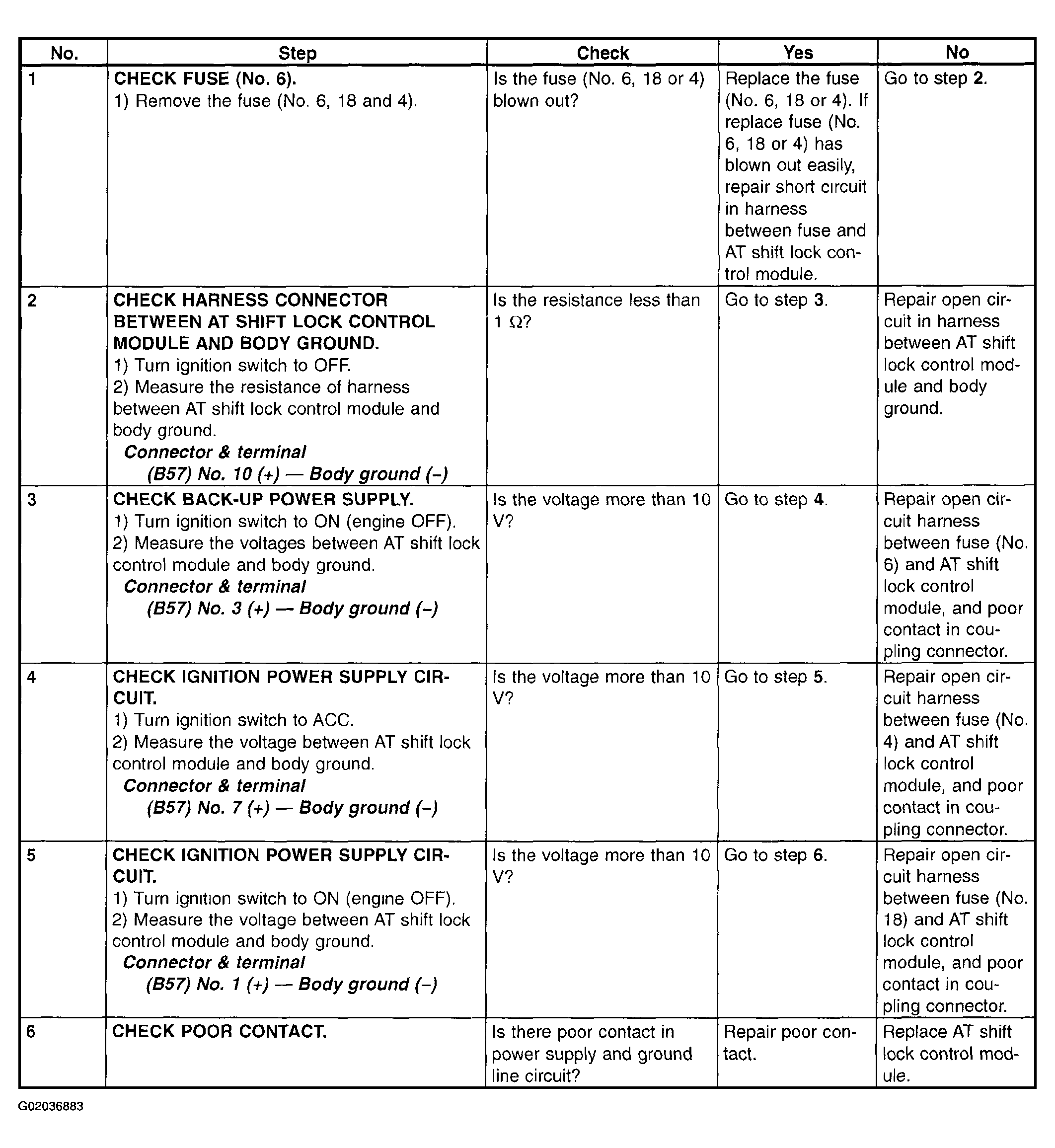

Fig 2: AT Shift Lock Power Supply Diagnostic Chart

G02036883
