Keyless Entry System
›
Inspection
›
Symptom Chart
Symptom Chart

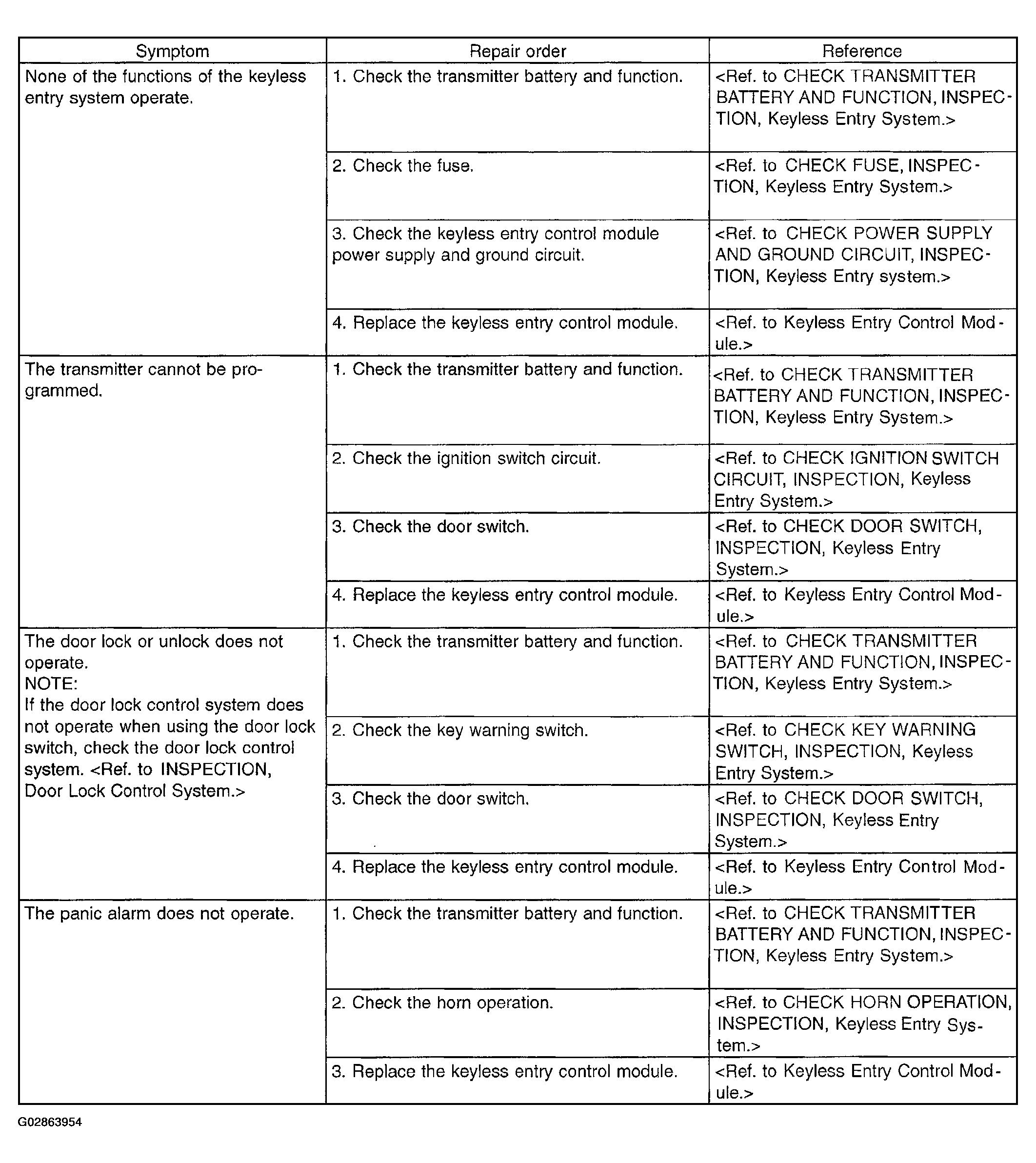

Fig 1: Keyless Entry System Symptom Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

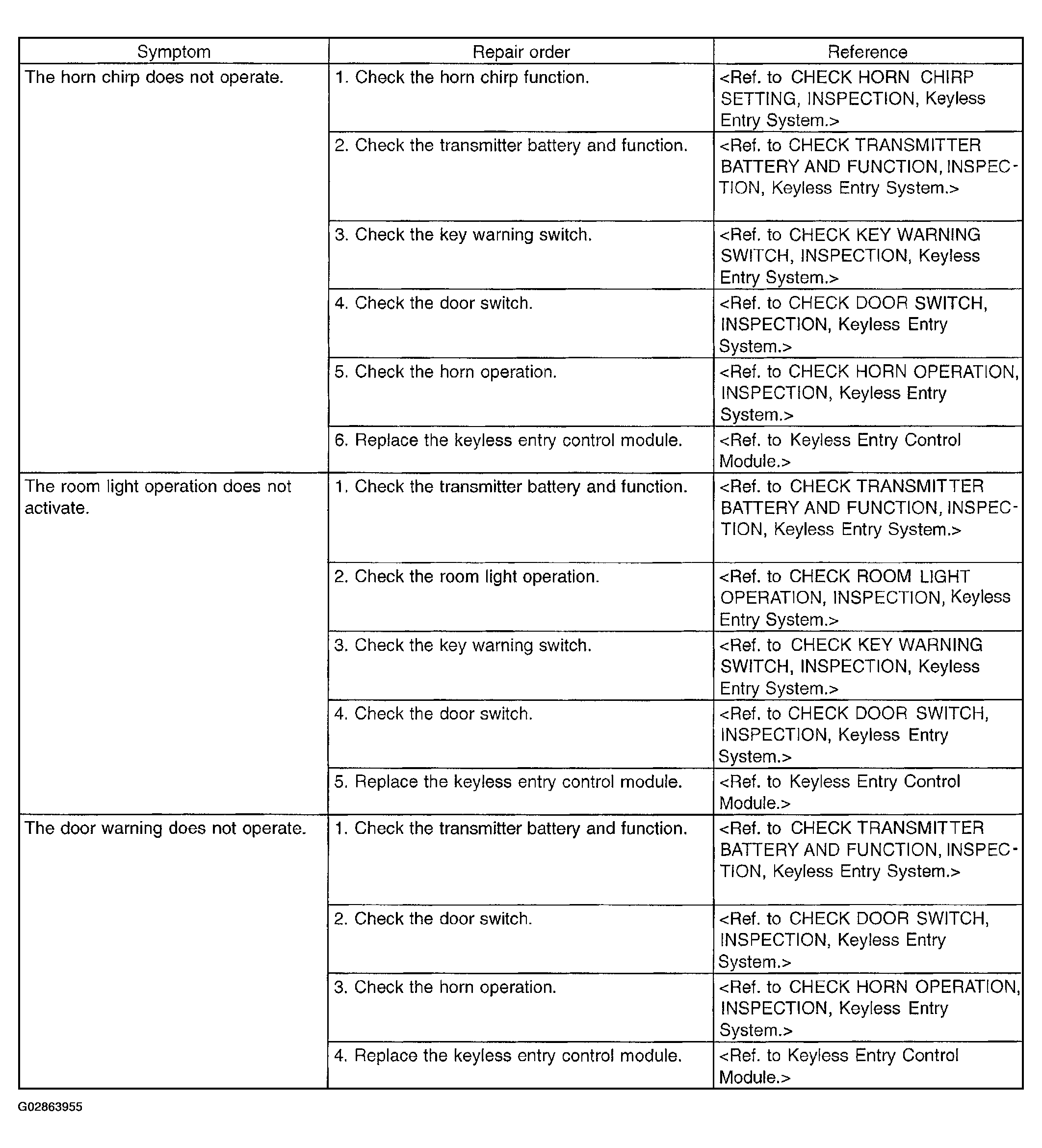

Fig 2: Keyless Entry System Symptom Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
