Control System

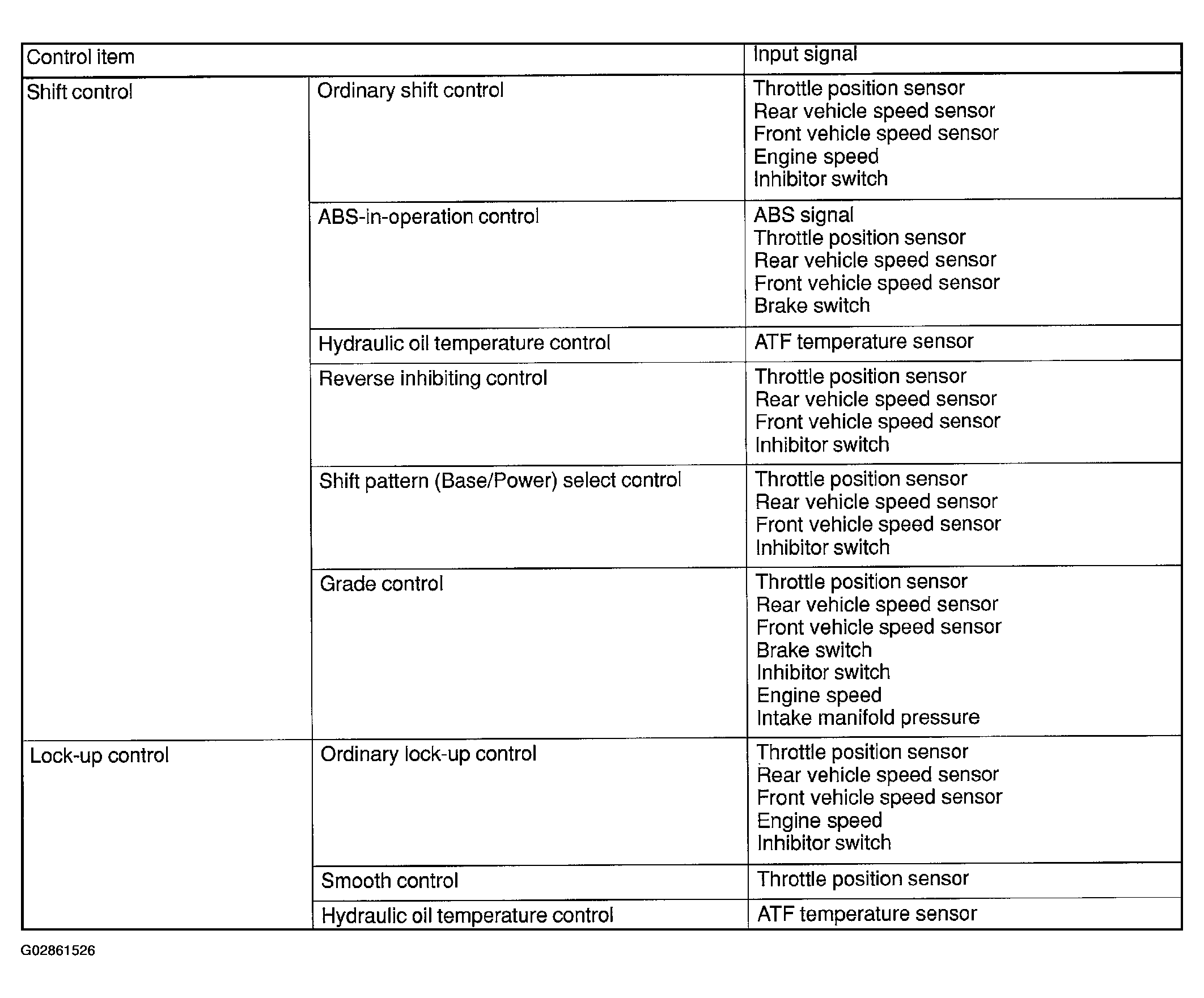

Fig 1: Transmission Control Module, Control System (1 Of 2)
G02861526Courtesy of SUBARU OF AMERICA, INC.

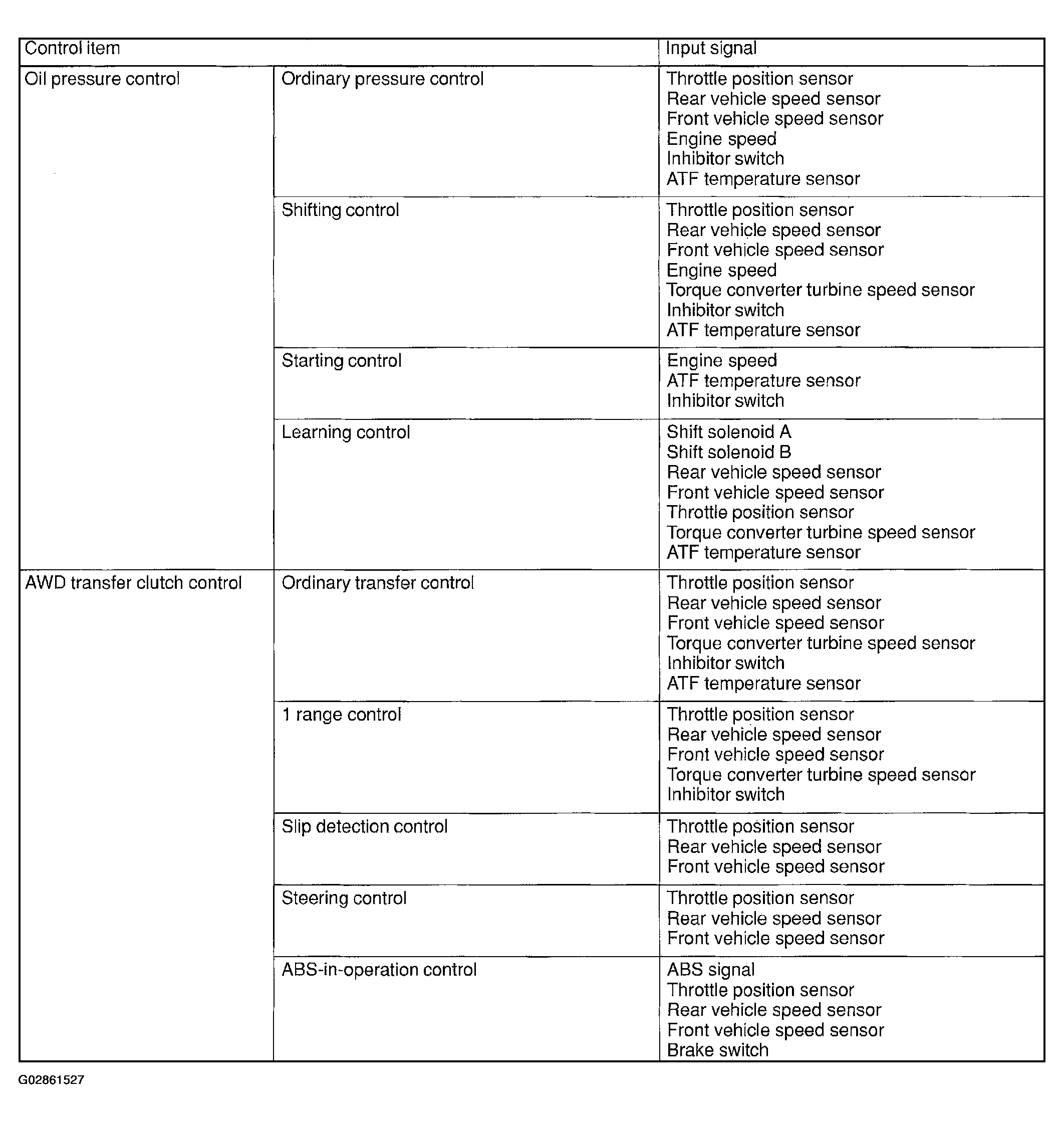

Fig 2: Transmission Control Module, Control System (2 Of 2)
G02861527Courtesy of SUBARU OF AMERICA, INC.
