Cruise Control Module: Removal

  1. Disconnect ground cable from battery.
  2. Remove front pillar lower trim.

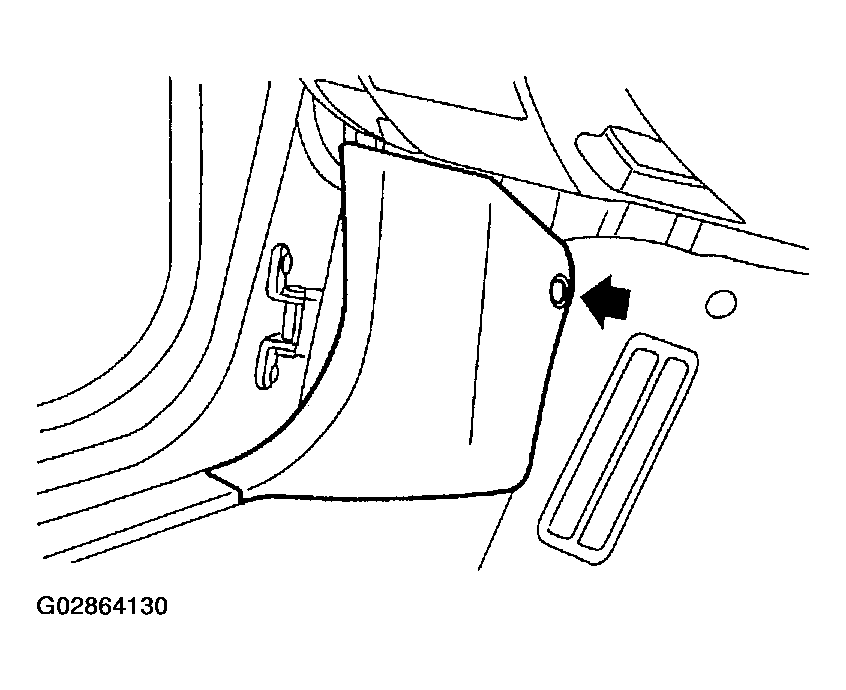

    Fig 1: Removing Front Pillar Lower Trim
    G02864130Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect connector from cruise control module.
  4. Remove bolt, then remove cruise control module.

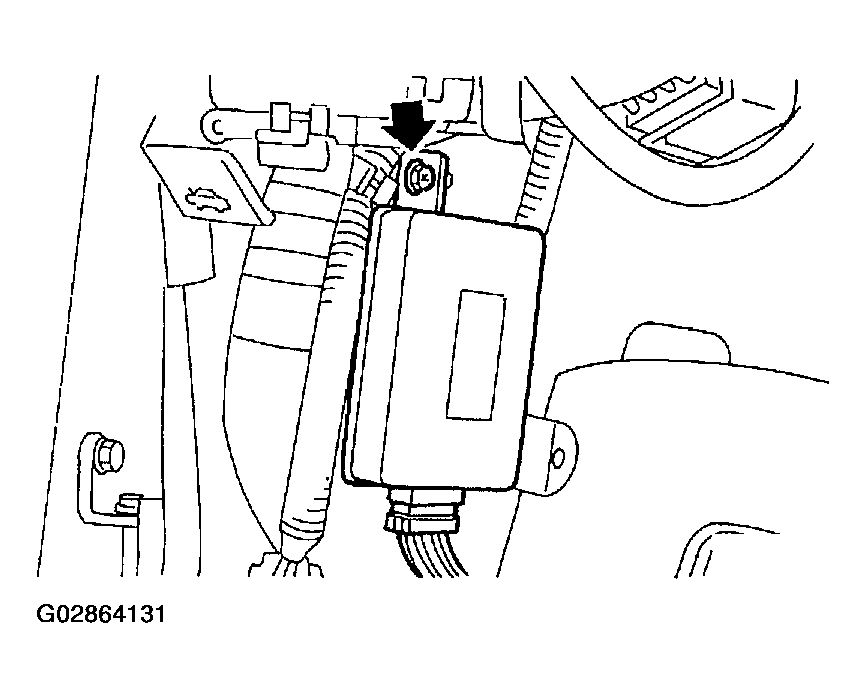

    Fig 2: Removing Cruise Control Module
    G02864131Courtesy of SUBARU OF AMERICA, INC.
