Wiper Control Relay: Removal

1. Disconnect battery ground cable.
2. Remove the right quarter lower trim. Refer to REMOVAL , Rear Quarter Trim.
3. Remove the quarter pocket.
4. Loosen nut to remove control unit.

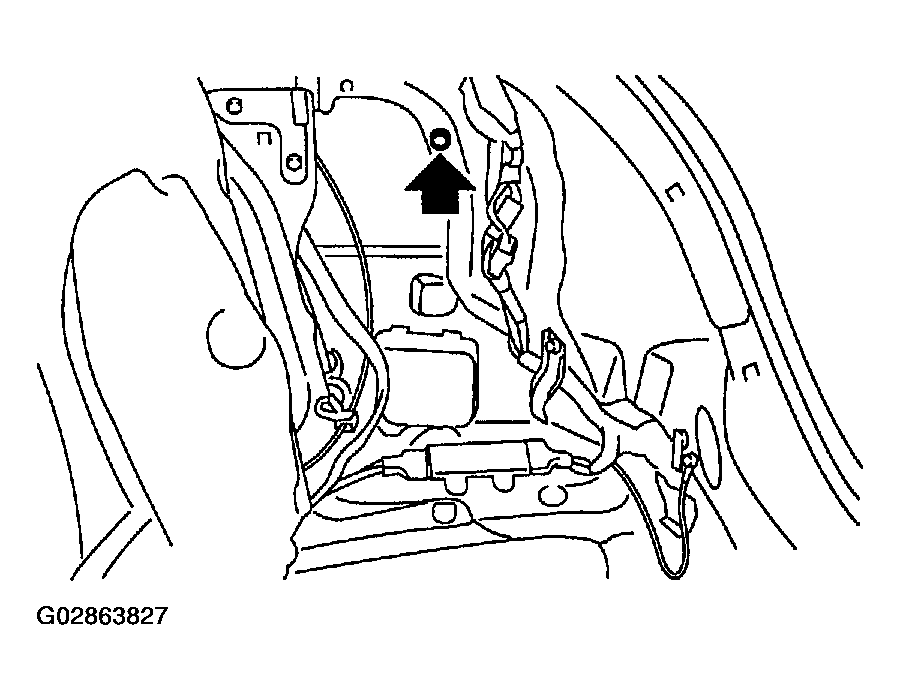

Fig 1: Removing Wiper Control Relay

Courtesy of SUBARU OF AMERICA, INC.
