Ignition Switch Circuit Test

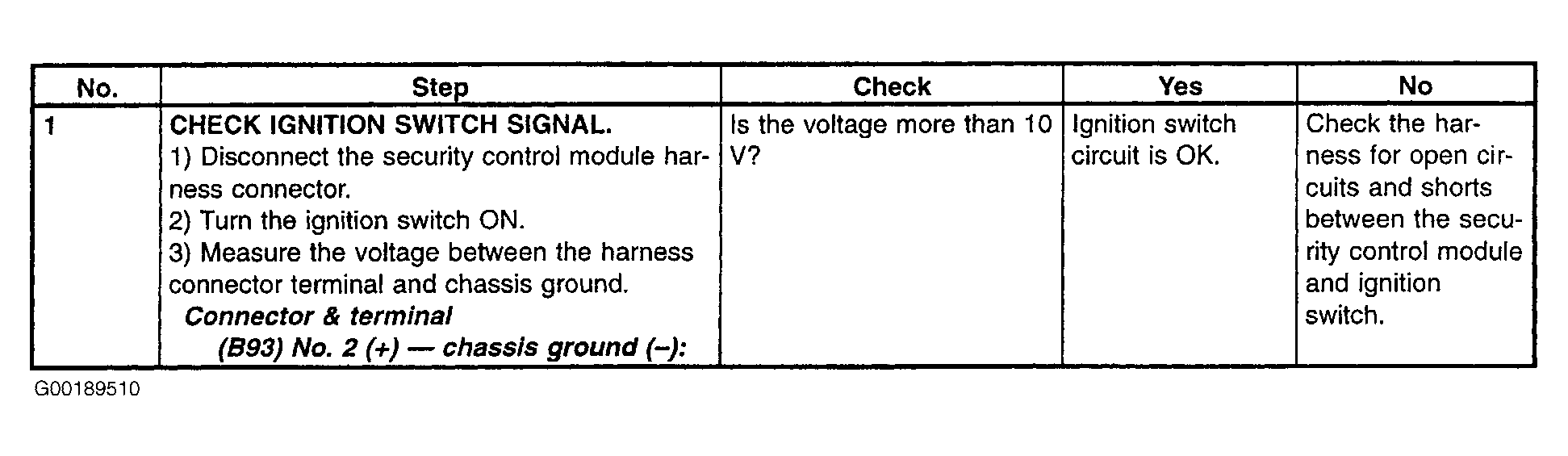

Fig 1: Ignition Switch Circuit Testing Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
