Interrupt Relay Circuit Test

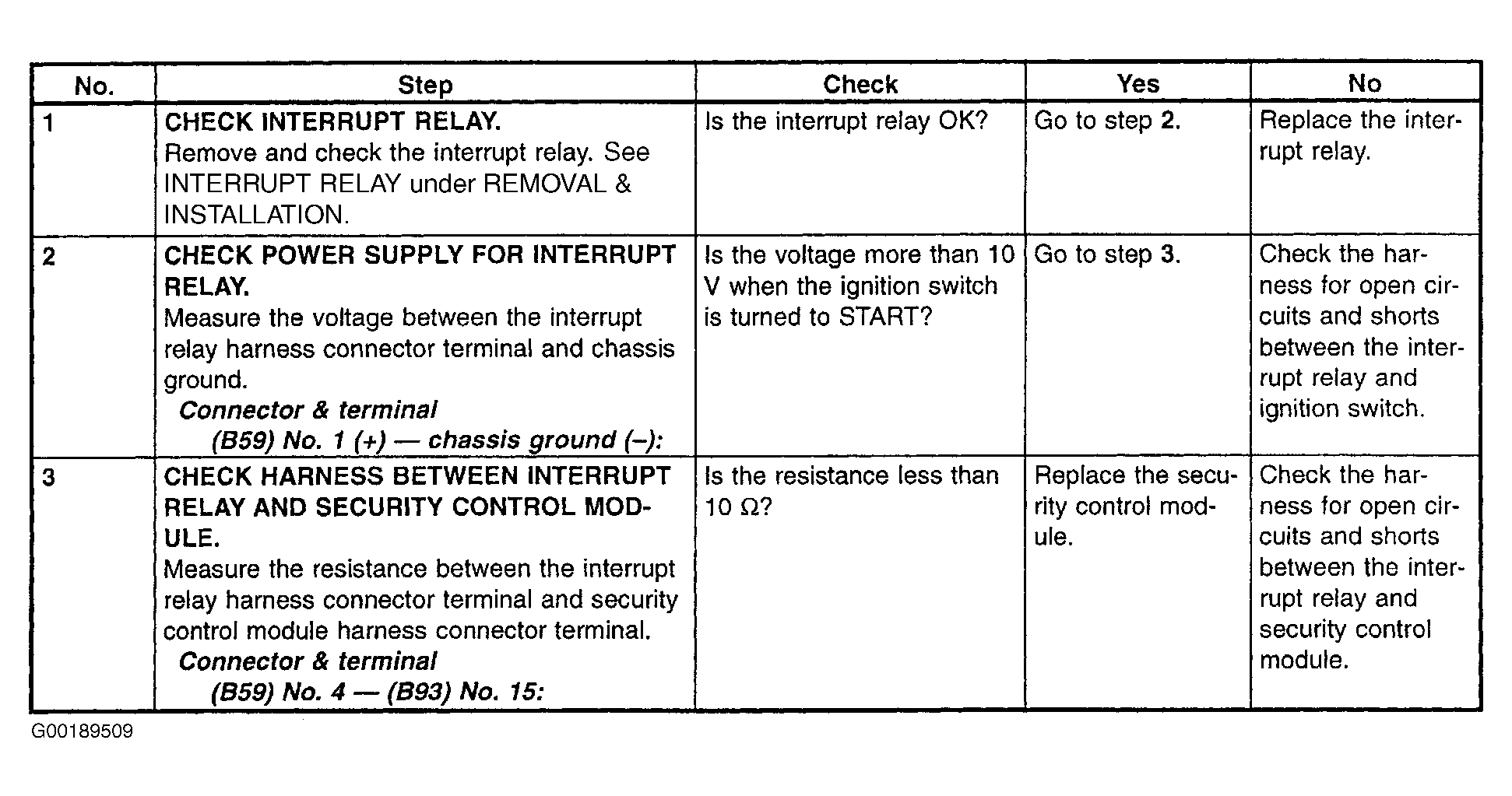

Fig 1: Interrupt Relay Circuit Testing Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
