Check Ignition Switch Circuit
Check Ignition Switch Circuit

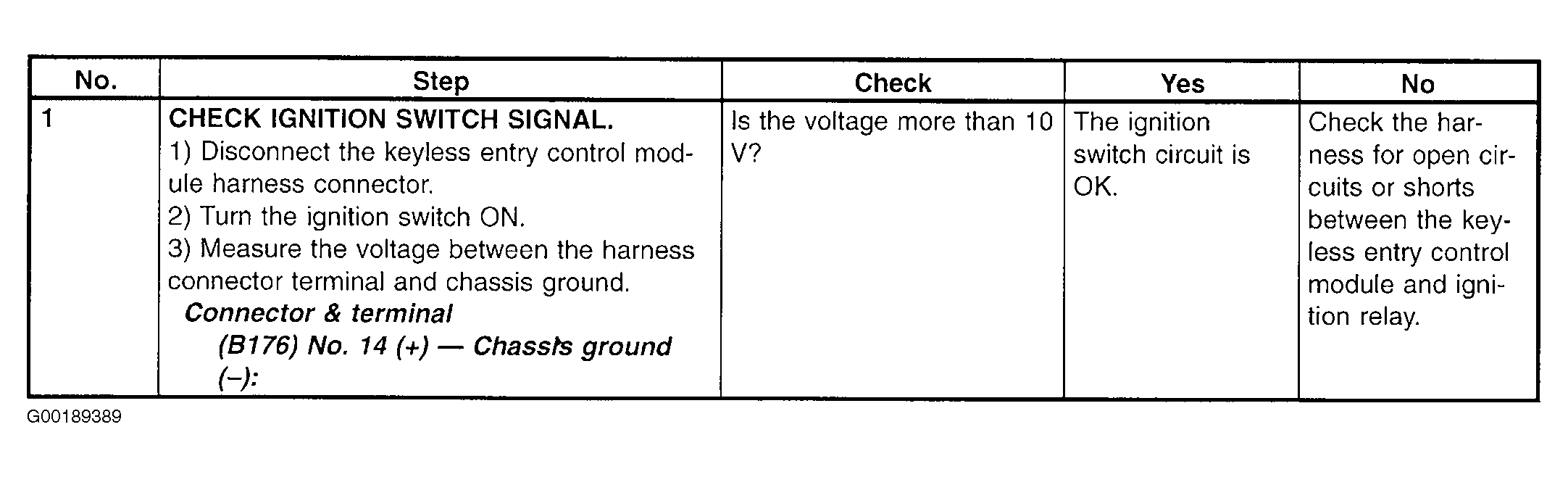

Fig 1: Check Ignition Switch Circuit (Testing Procedure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
