Check Room Light Operation
Check Room Light Operation

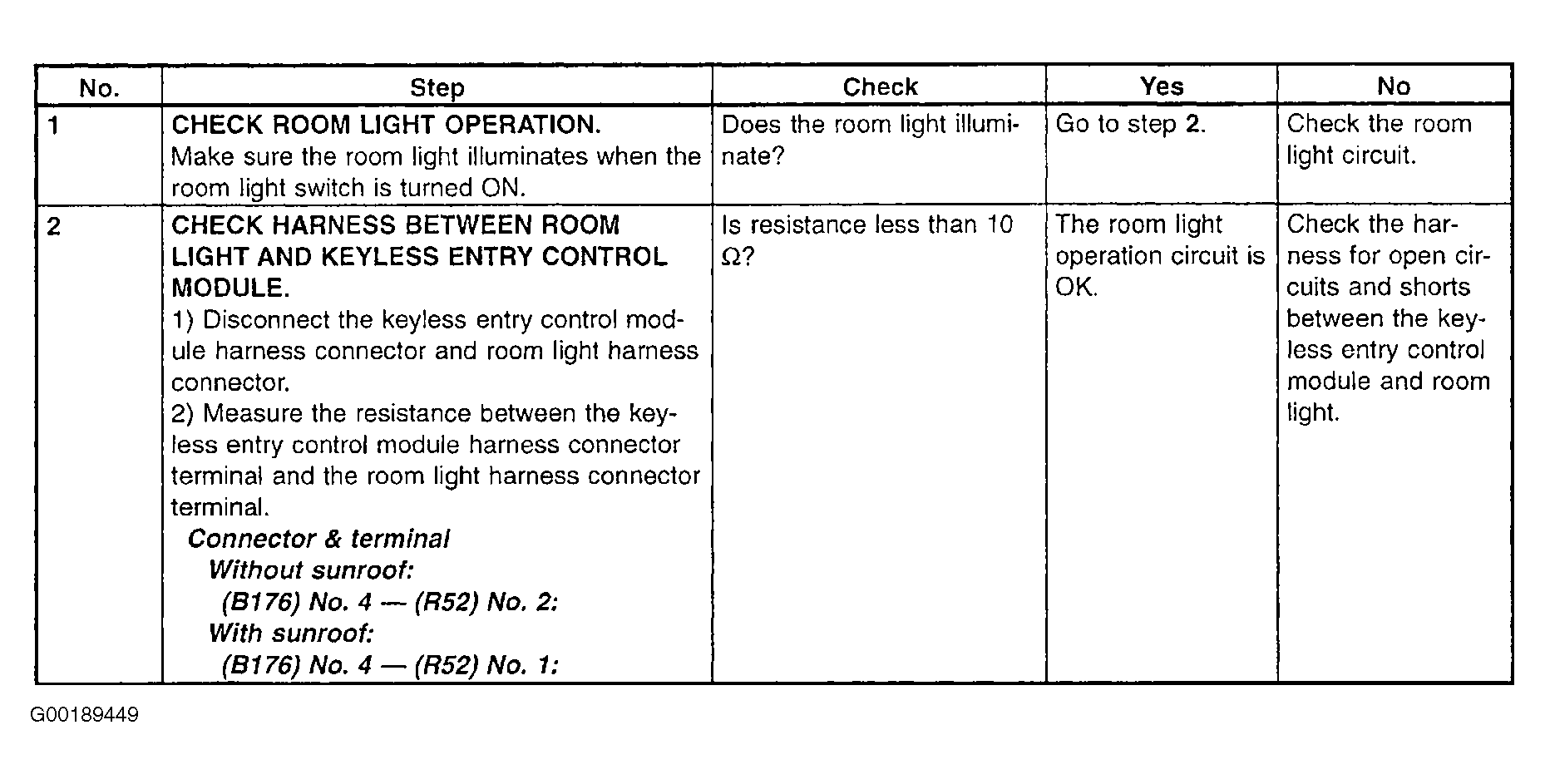

Fig 1: Check Room Light Operation (Testing Procedure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
