Symptom Chart (Keyless Entry System)

Use chart in Fig 1 & Fig 2 .

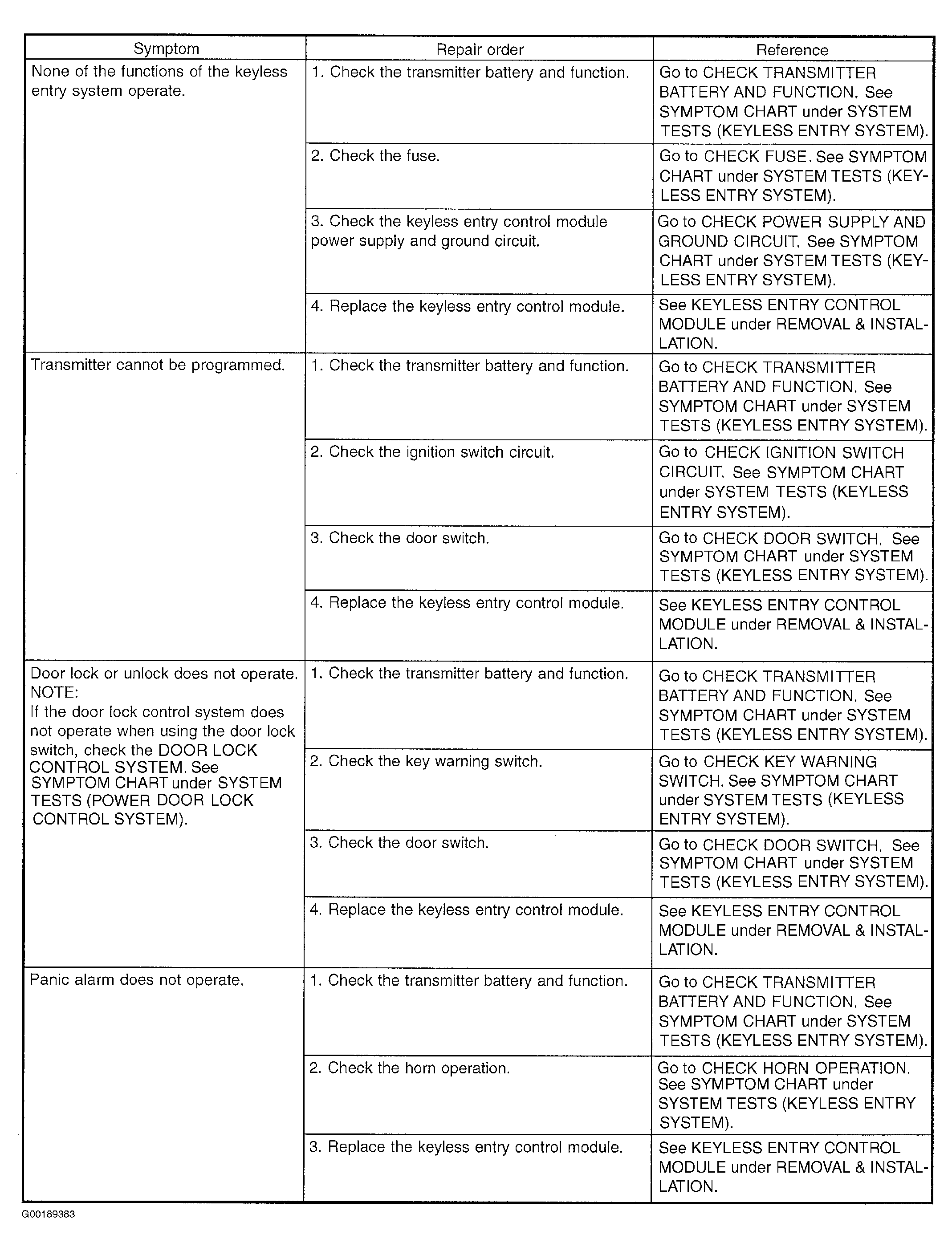

Fig 1: Keyless Entry System Symptom Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

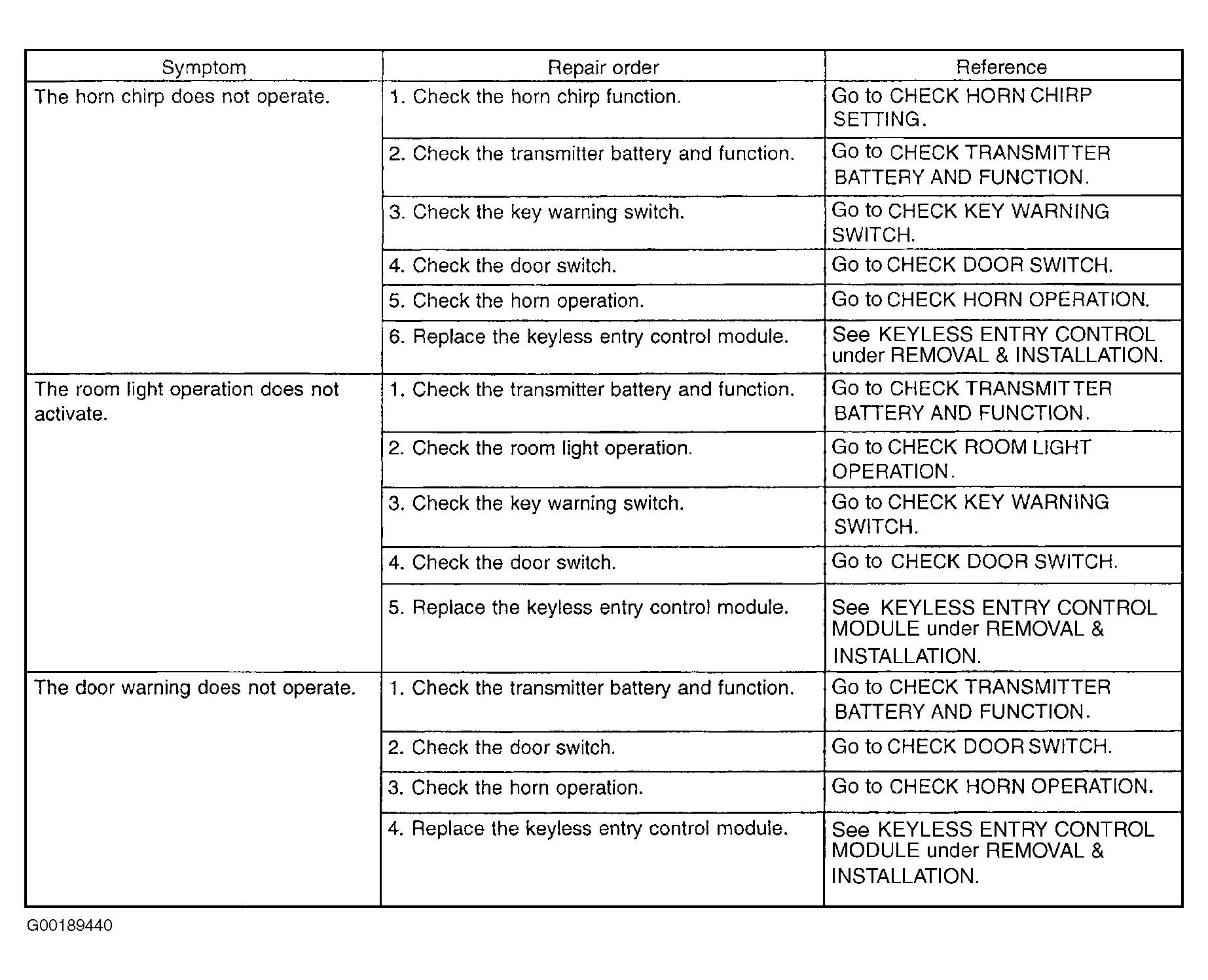

Fig 2: Keyless Entry System Symptom Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
