Front Hood Lock Assembly: Adjustment
Loosen the bolt. Adjust the lock assembly while moving it up and down.

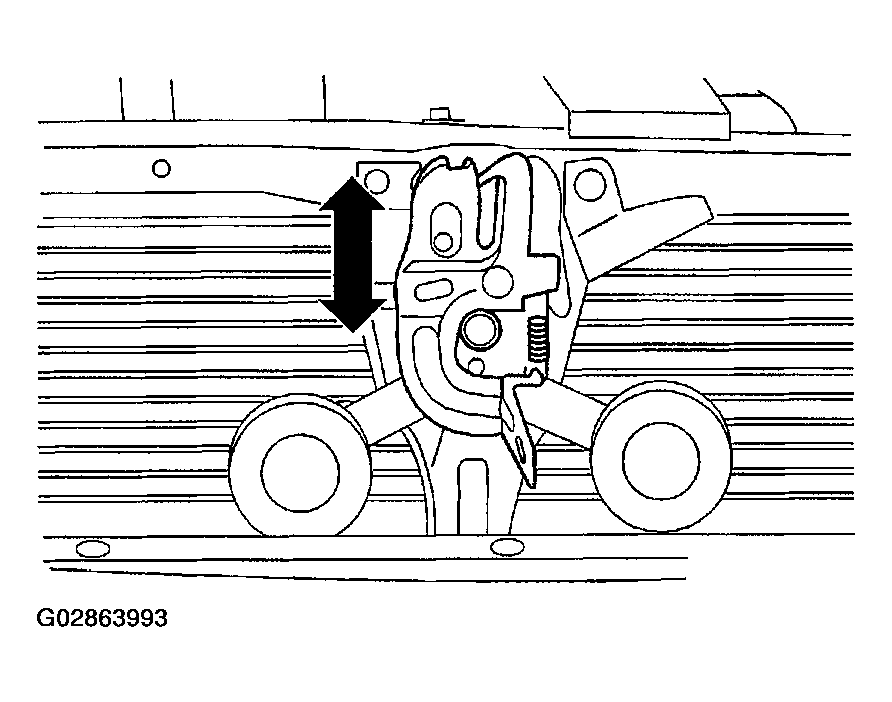

Fig 1: Adjusting Front Hood Lock Assembly
Courtesy of SUBARU OF AMERICA, INC.
