Interrupt Relay: Removal

  1. Disconnect battery ground cable.
  2. Remove the mounting nut and detach the interrupt relay (behind the fuse box).

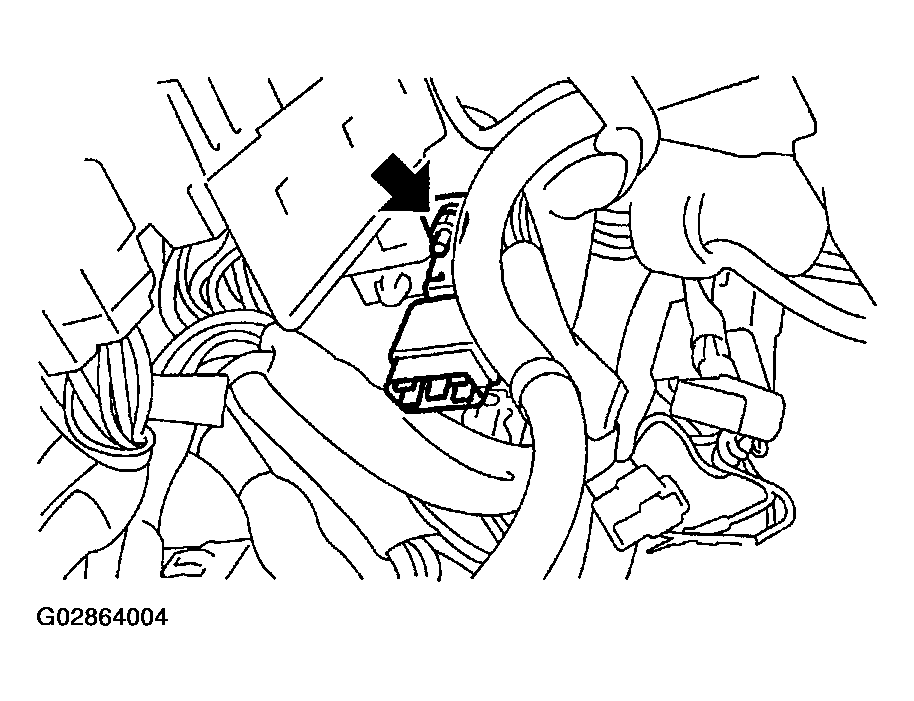

    Fig 1: Removing Mounting Nut
    G02864004Courtesy of SUBARU OF AMERICA, INC.
