Rear Inner Remote: Removal

  1. Remove the rear door trim. Refer to REMOVAL , Rear Door Trim.
  2. Remove the sealing cover. Refer to REMOVAL , Rear Sealing Cover.
  3. Unlatch rod holder.
  4. Remove the two rod joints.
  5. Remove the inner remote.

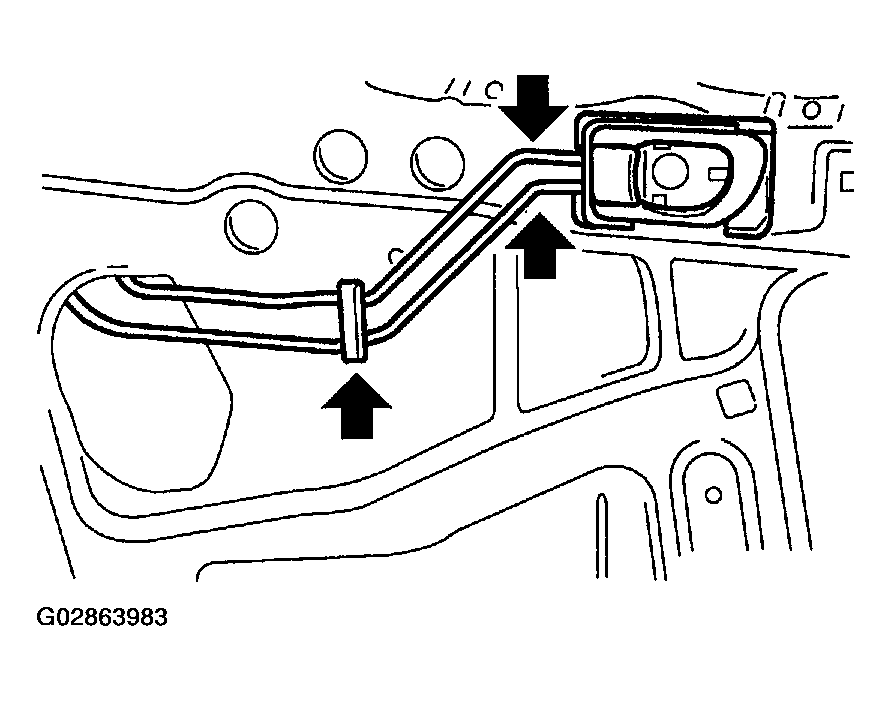

    Fig 1: Removing Rear Inner Remote
    G02863983Courtesy of SUBARU OF AMERICA, INC.
