Main Switch

  1. Release two hooks (A) of switch panel to remove power window main switch.
  2. Disconnect electrical connector from power window main switch.

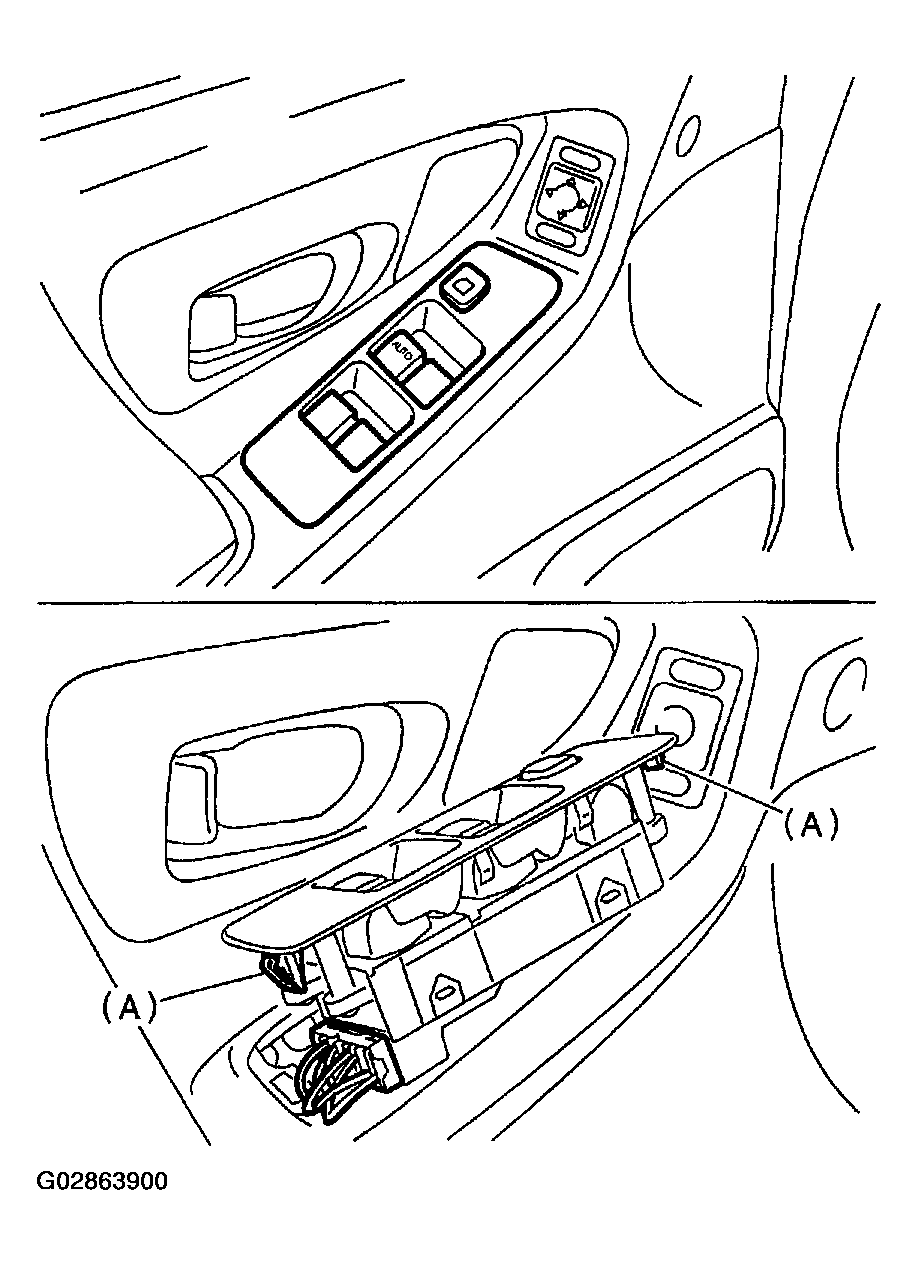

    Fig 1: Removing Power Window Control Main Switch
    G02863900Courtesy of SUBARU OF AMERICA, INC.
