Driver Side Switches

The master power window switch cluster is located on the driver's door. It powers and grounds all of the power window switches and motors. The master power window switch offers one-touch (AUTO) operation of driver's window. Master switch also includes a lock-out feature to prevent passengers from operating any of the other power window door switches. See Fig 2 .

Operating Driver's Window

• Push the switch down until it clicks, then release it. The window will fully open. To stop the window when halfway open, pull the switch up slightly. See Fig 3 .
• Push the switch down lightly and hold it. The window will continue to open for as long as the switch is held.
• Pull the switch up lightly and hold it. The window will continue to close for as long as the switch is held.

Fig 1: Power Window Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

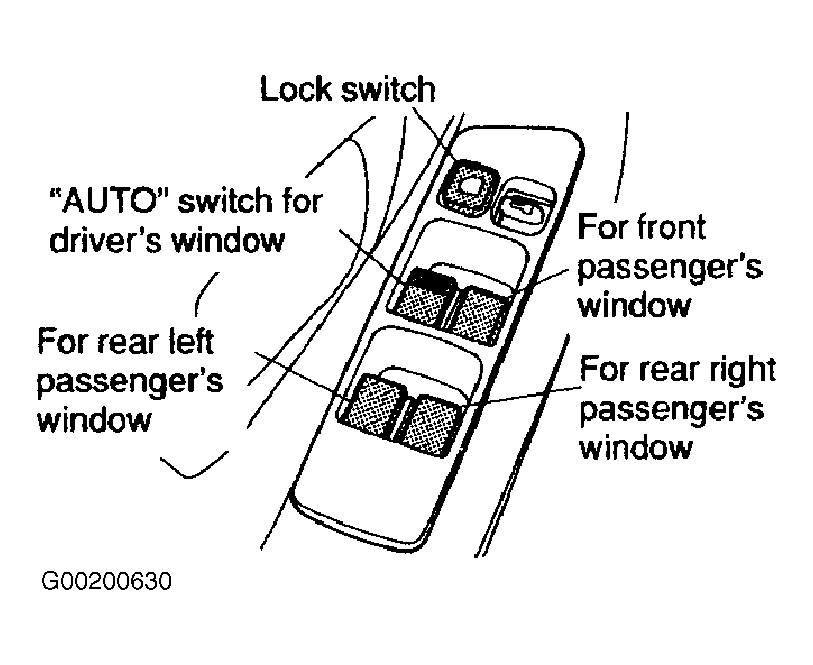

Fig 2: Identifying Power Window Switch Cluster (Driver's Side)

Courtesy of SUBARU OF AMERICA, INC.

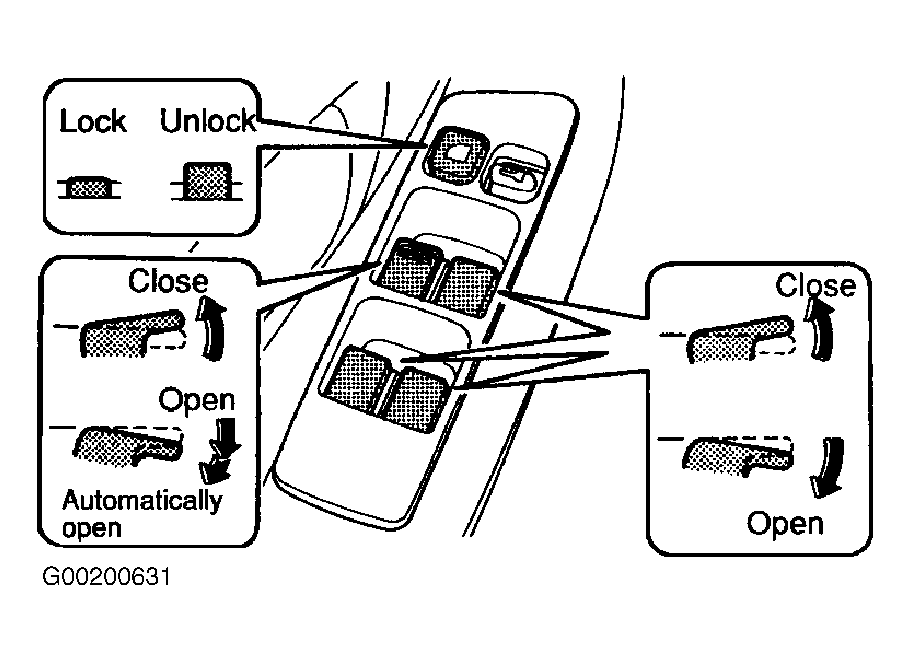

Fig 3: Operating Power Window Switches

Courtesy of SUBARU OF AMERICA, INC.
