Main Switch

  1. Release two switch panel hooks (A) to remove power window main switch. See Fig 1 .
  2. Disconnect electrical connector from power window main switch.
  3. Install in reverse order of removal procedure.

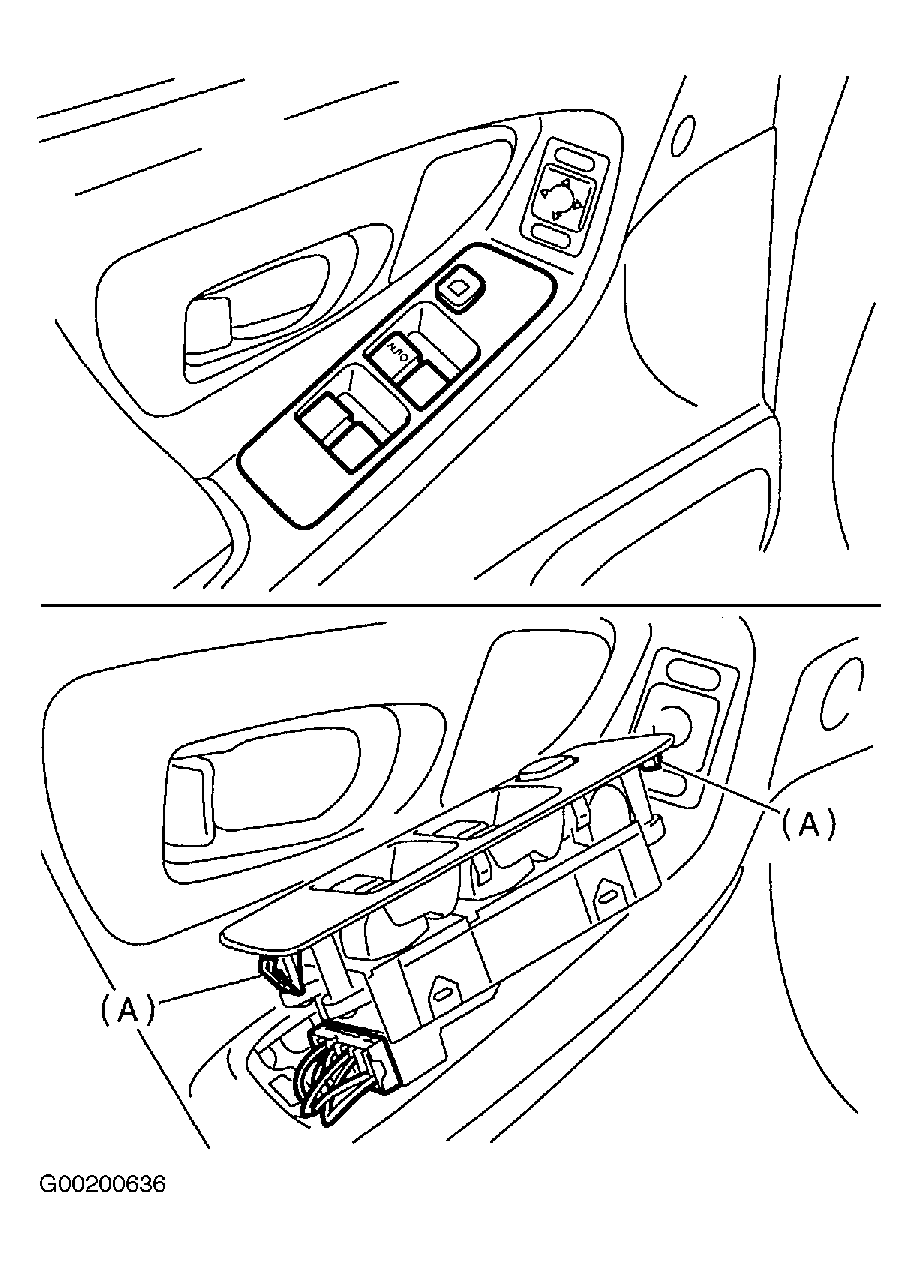

Fig 1: Removing Power Window Control Main Switch
G00200636Courtesy of SUBARU OF AMERICA, INC.
