Torque Specifications

TORQUE SPECIFICATIONS

Application ⁽¹⁾

Specification: INCH Lbs. (Nm, kgf-m)

Regulator ASSY Nuts & Bolts (T1)

66.38 (7.5, 0.7.6)

Door Sash (Rear) Nuts (T2)

123.91 (14, 1.4)

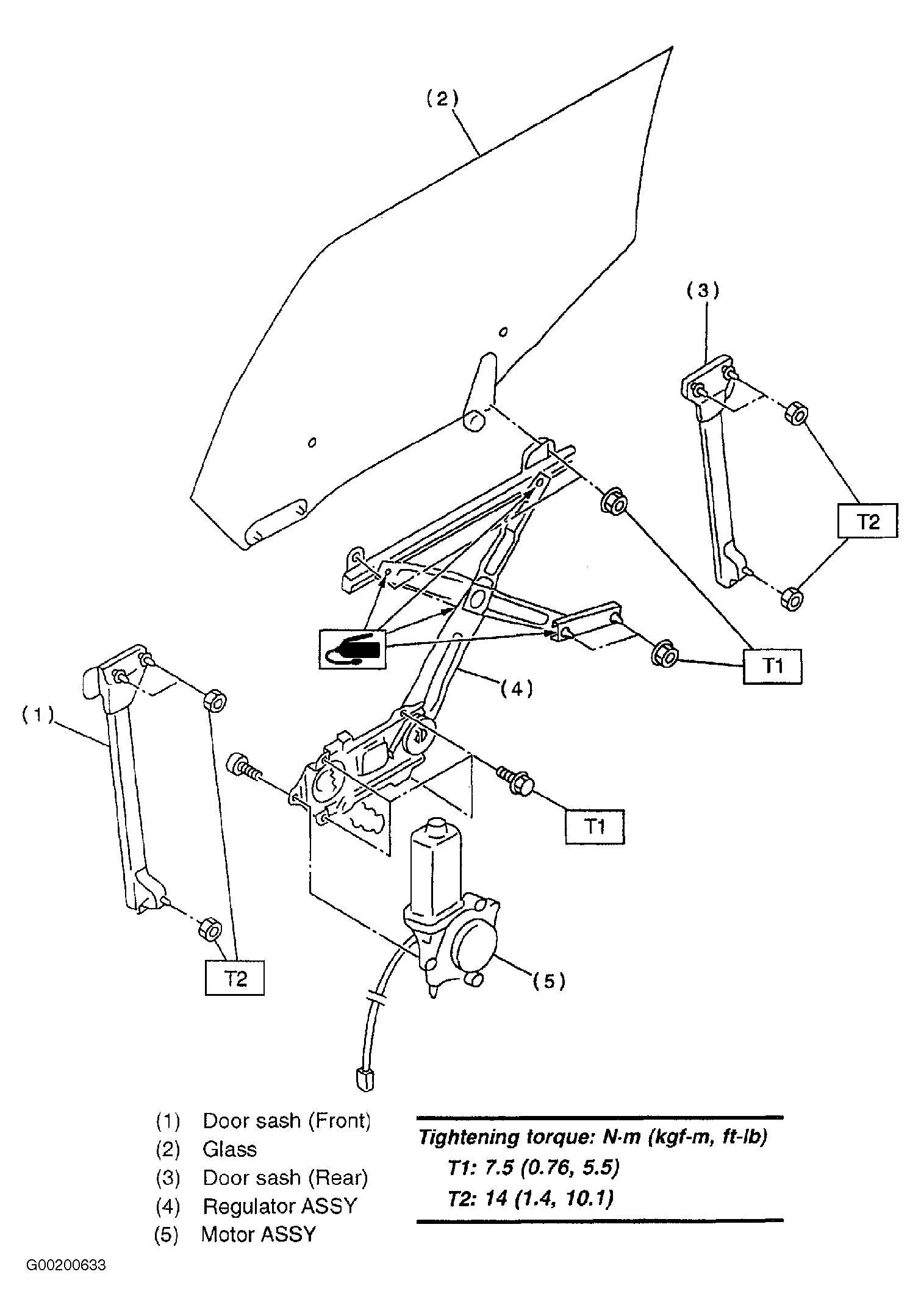

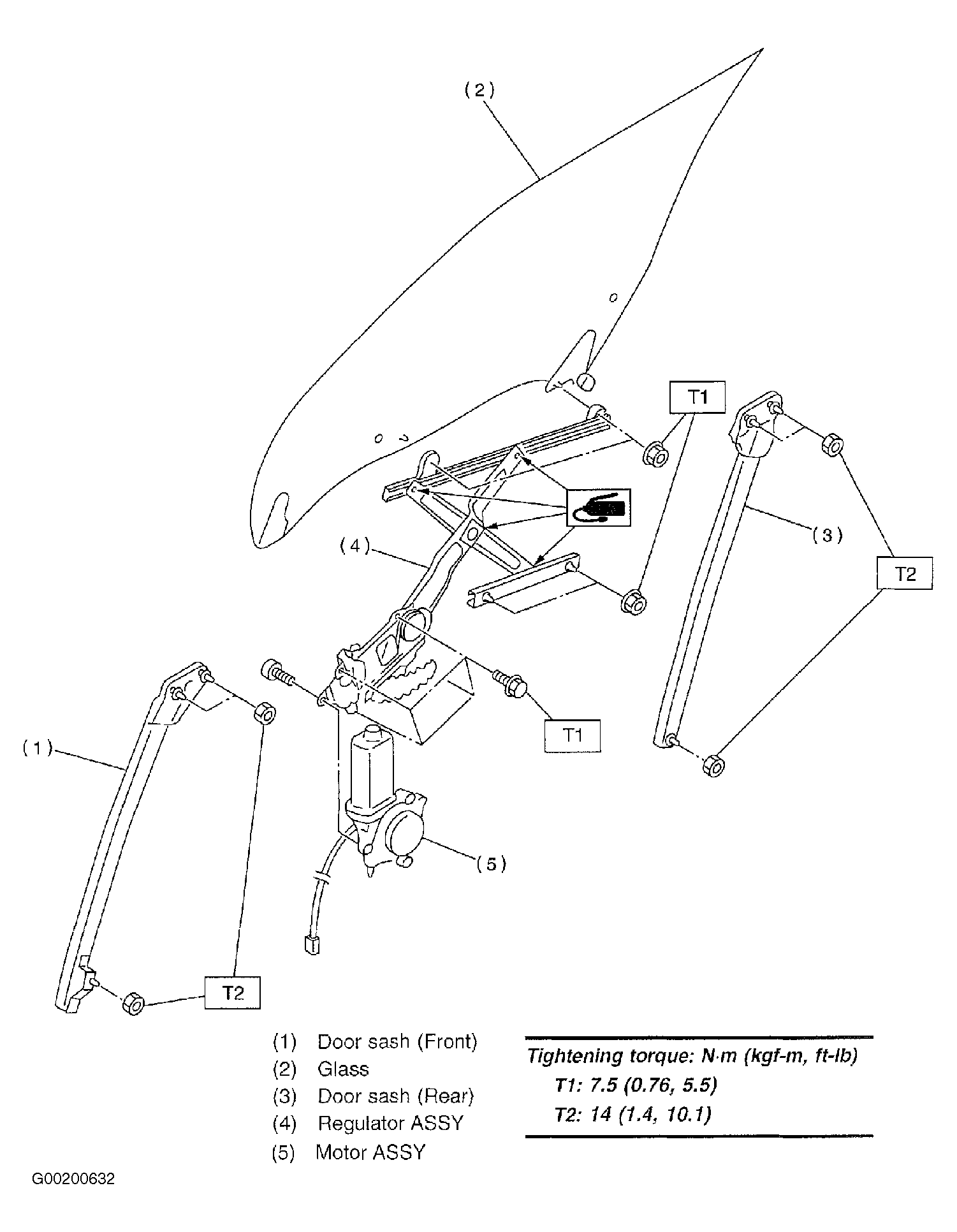

⁽¹⁾	For component locations, see Figure & Figure .
