Warning And Indicator Lights

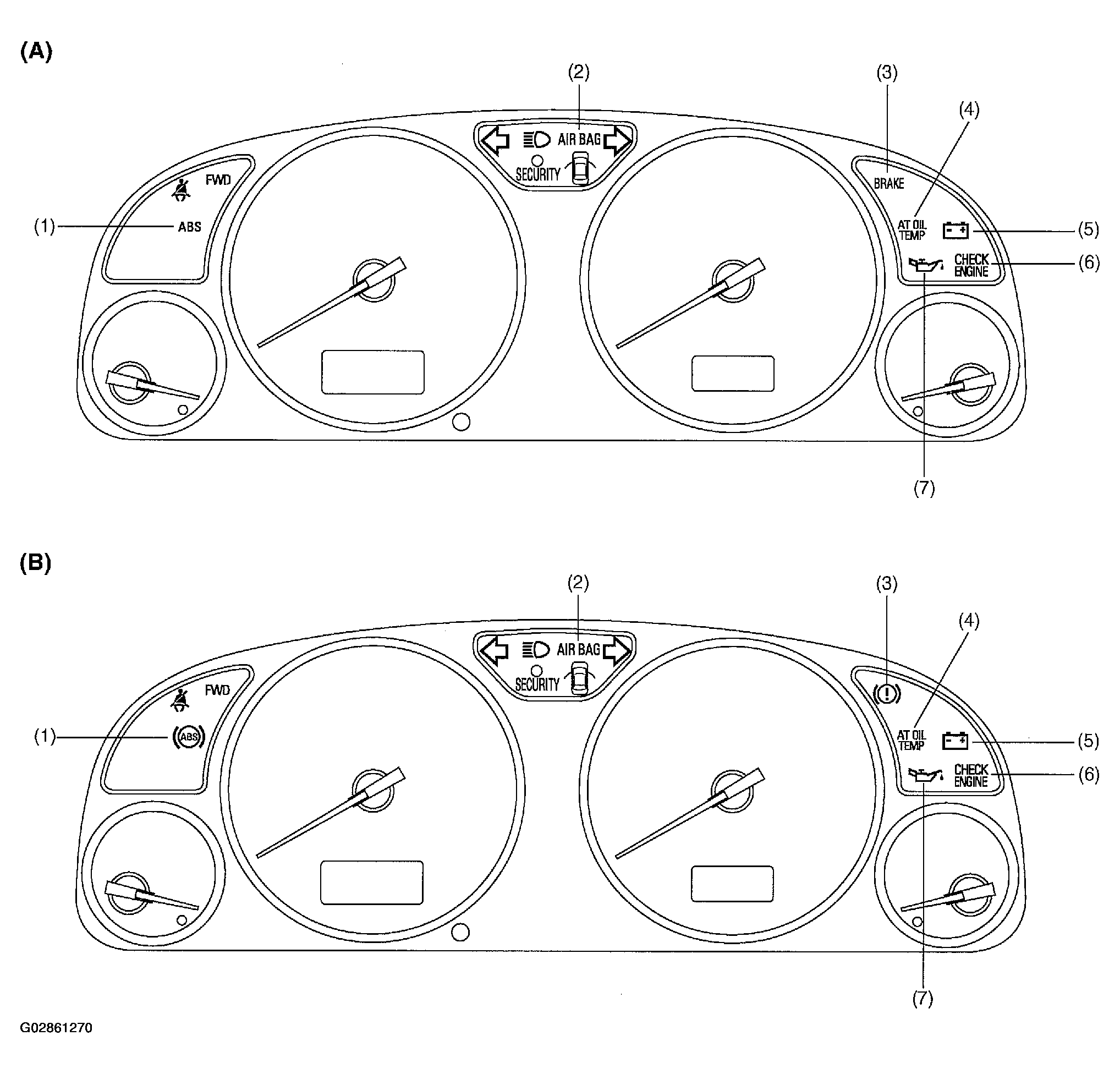

Fig 1: Identifying Combination Meter, Warning & Indicator Lights
G02861270Courtesy of SUBARU OF AMERICA, INC.
  1. For USA model
  2. For CANADA model
  1. ABS warning light

    This light illuminates when a fault occurs in any electrical component of the ABS (Anti-lock Brake System).

  2. AIR BAG system warning light

    This light illuminates when a fault occurs in the AIRBAG system.

  3. Brake fluid level warning/parking brake indicator light

    This light illuminates when the fluid level in the brake reservoir tank lowers below the specified level and/or when the parking brake is applied.

  4. AT oil temperature warning light

    This light illuminates when the ATF temperature exceeds 150°C (302°F); it blinks when a fault occurs in the AT control system.

  5. Charge indicator light

    This light illuminates when a fault occurs in the charging system while the engine is running.

  6. CHECK ENGINE warning light

    This light illuminates when a fault occurs in the MFI (Multiple point Fuel Injection) system.

  7. Oil pressure warning light

    This light illuminates when the engine oil pressure decreases below 14.7 kPa (0.15 kgf/cm2 , 2.1 psi).

    If everything is normal, the warning and indicator lights should be ON or OFF as shown below according to ignition switch positions.

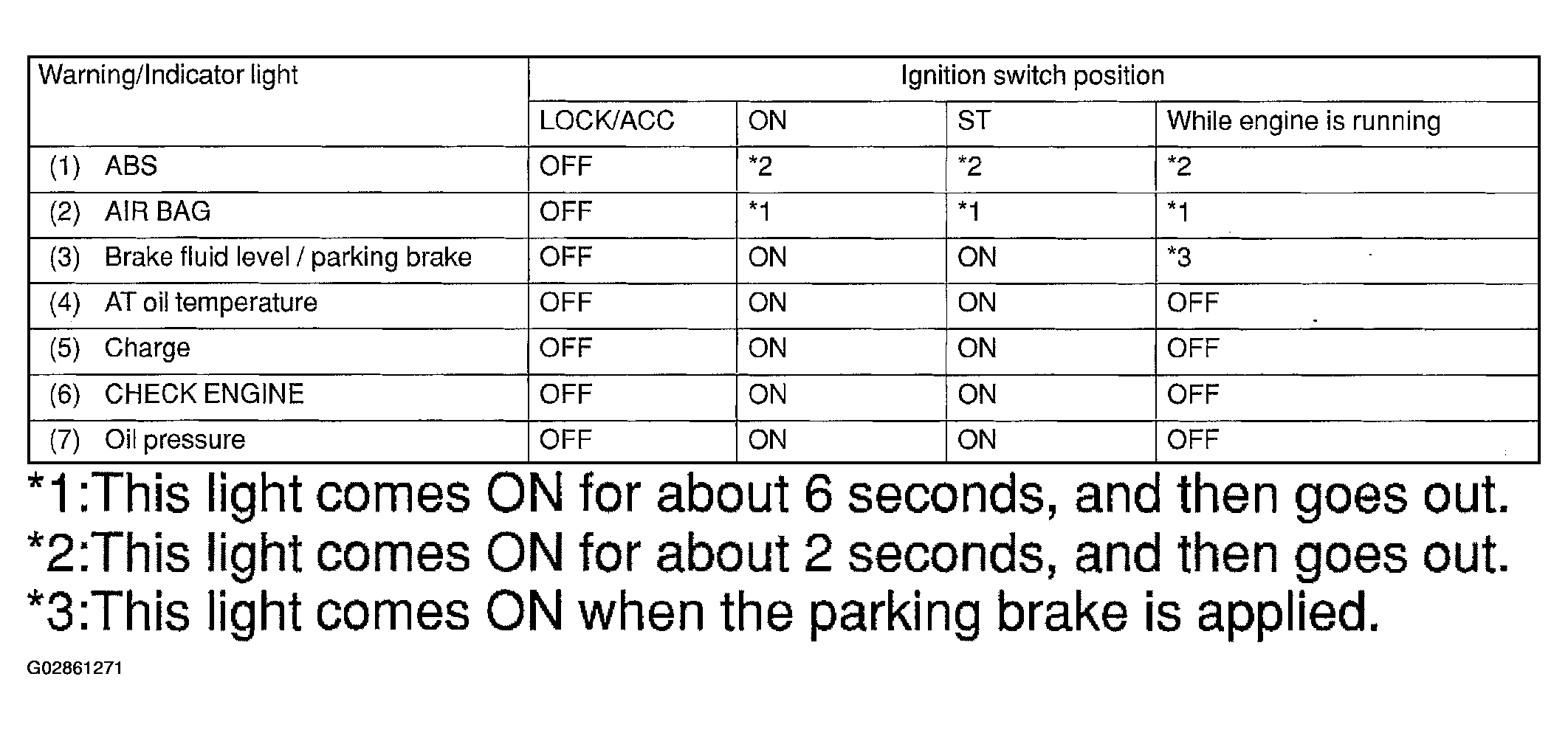

    Fig 2: Warning & Indicator Lights: According To Ignition Switch Positions (Vehicle In Normal State) Chart
