Model With A/C

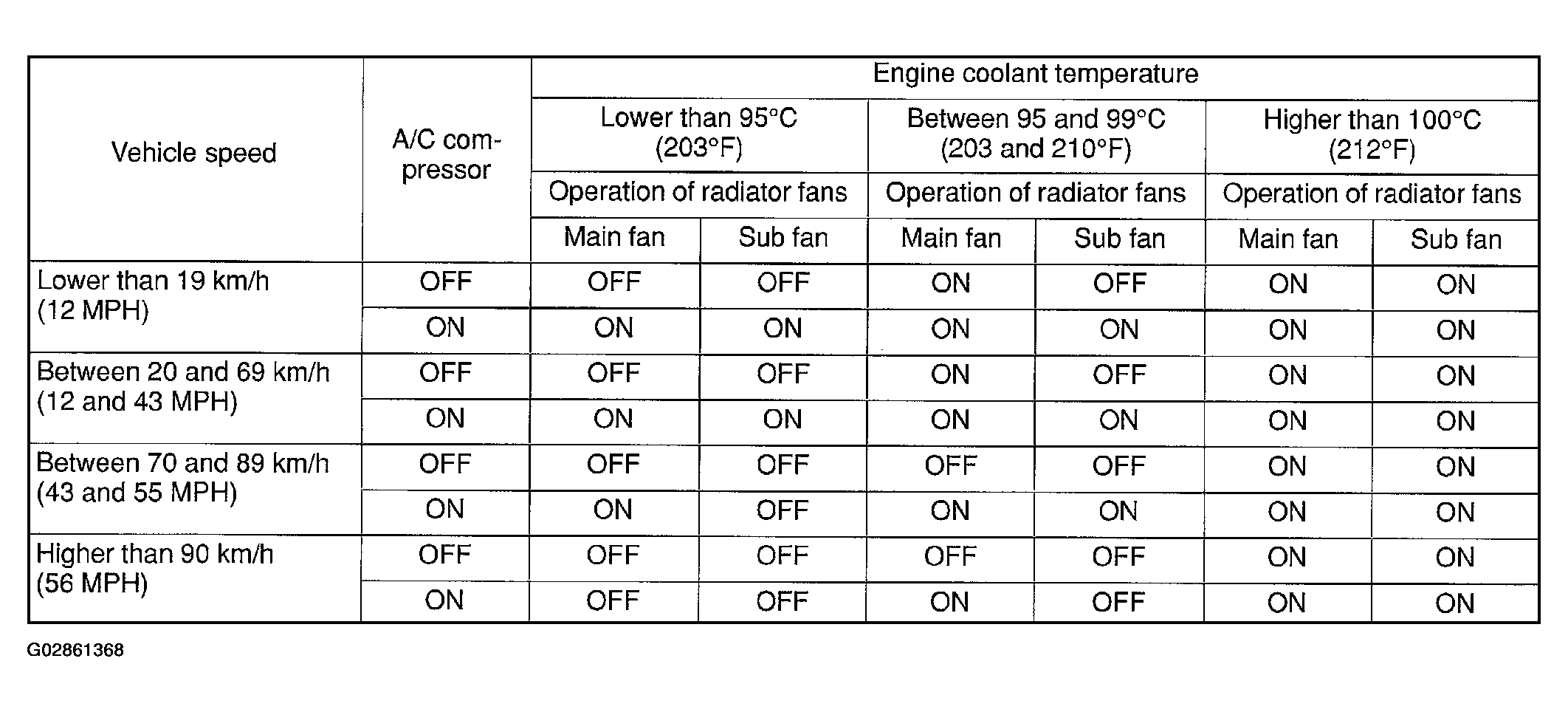

Fig 1: Radiator Fan Function Chart (With A/C)
G02861368Courtesy of SUBARU OF AMERICA, INC.
