Radiator Main Fan System: Schematic

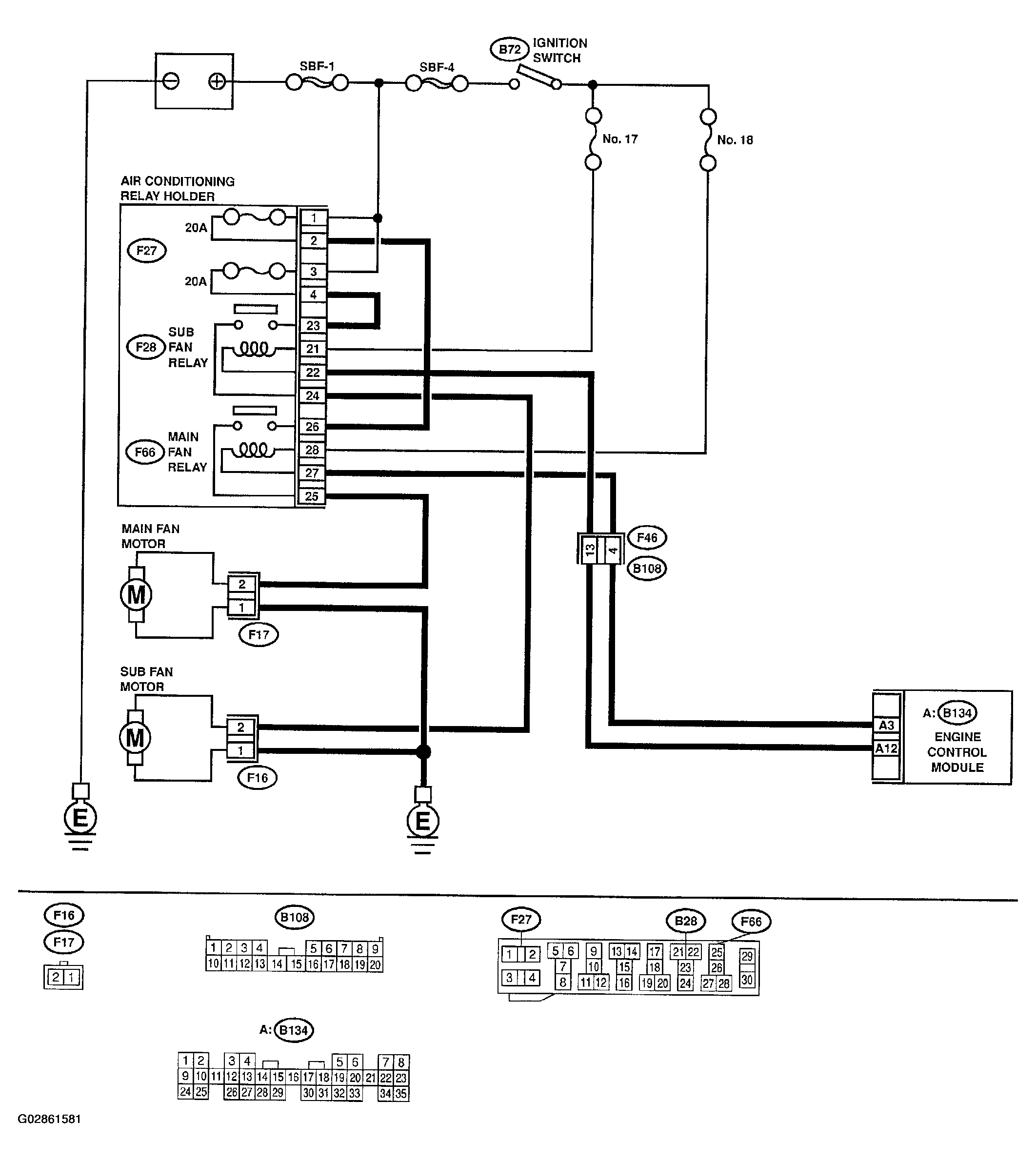

Fig 1: Radiator Main Fan System Schematic Diagram
G02861581Courtesy of SUBARU OF AMERICA, INC.
