Cooling Fan
›
Cooling
›
Radiator Sub Fan System
›
Schematic
Radiator Sub Fan System: Schematic

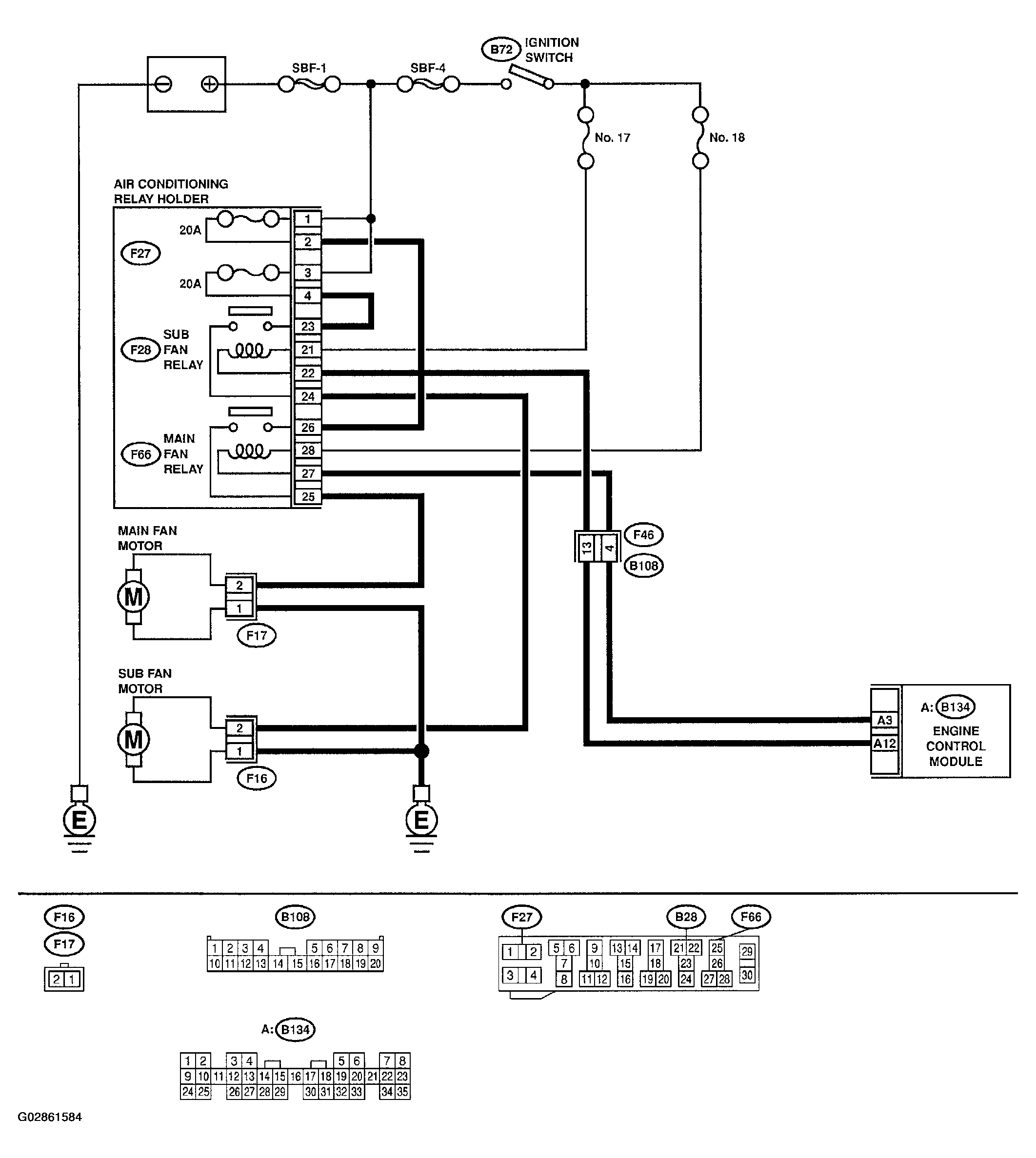

Fig 1: Radiator Sub Fan System Schematic Diagram
