Home › Subaru › 2002 › Forester Base › Repair and Diagnosis › Engine Mechanical › Lubrication System › Lubrication › General Description › Component

Lubrication System: Lubrication: General Description: Component

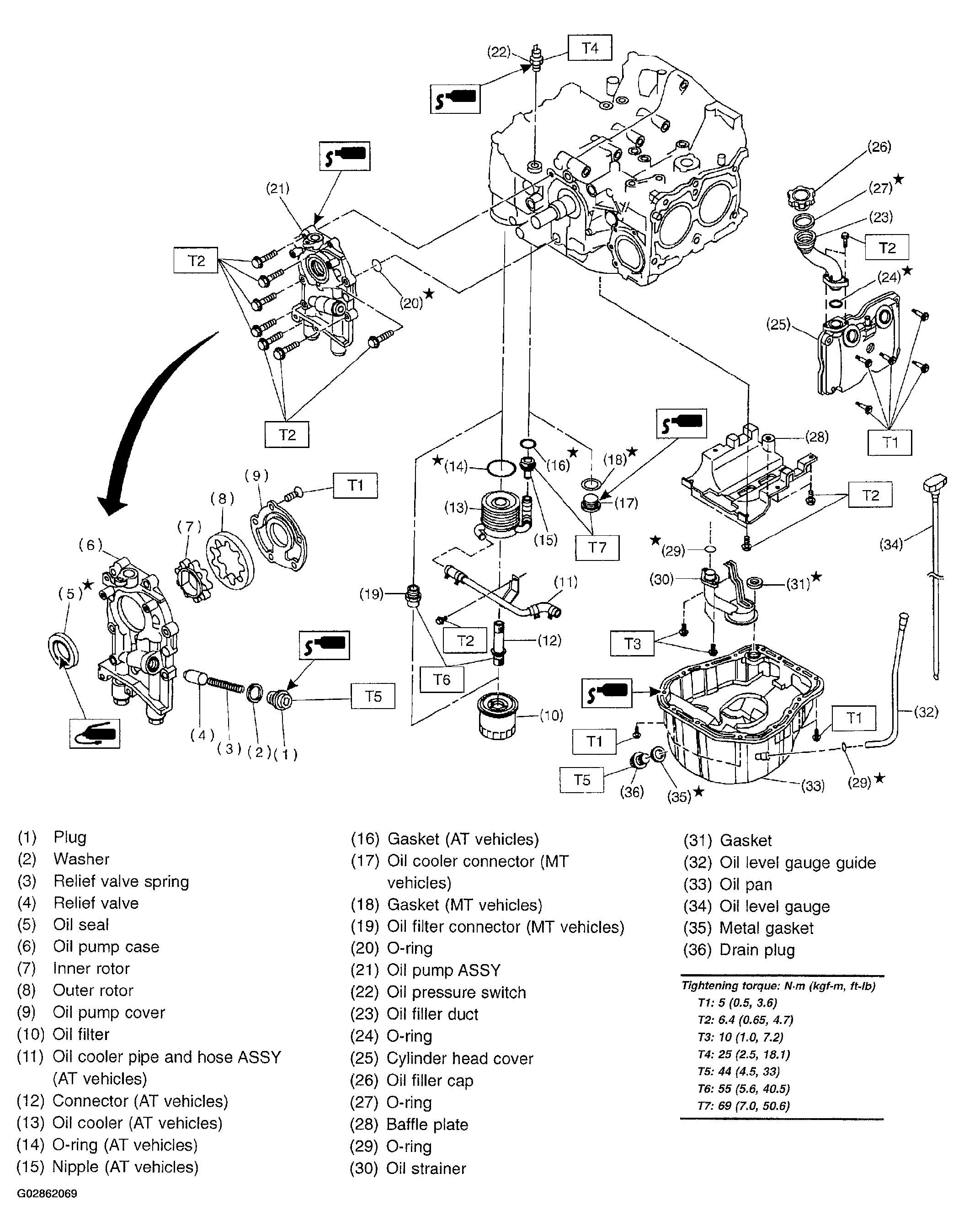

Fig 1: Identifying Lubrication System Components
G02862069Courtesy of SUBARU OF AMERICA, INC.
